8291SRM75.11

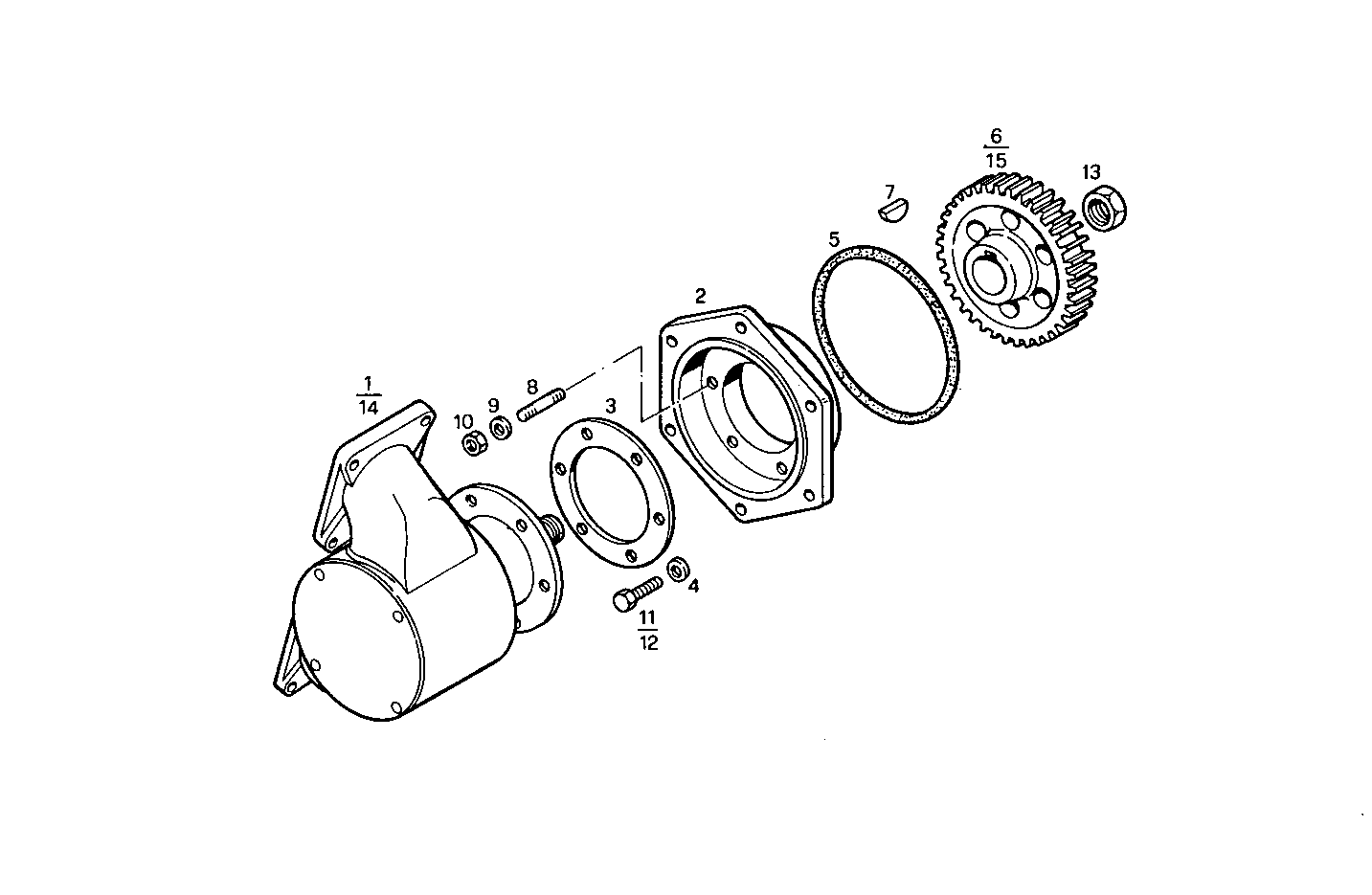

3380.010/01 SEA WATER PUMP
Item | Part number | Description |
---|---|---|
1 | 8009474 | SEA WATER PUMP ASSY [up to 10-94] |
2 | 8009848 | SUPPORT |
3 | 8009849 | GASKET |
4 | 17095104 | WASHER Ø10X21X2 MM |
5 | 8026145 | O-RING Ø152X3,53 MM |
6 | 8010031 | GEAR [up to 10-94] |
7 | 8010829 | KEY |
8 | 16729324 | STUD M8X12X20 MM |
9 | 17094914 | WASHER 8x16 |
10 | 17037931 | HEXAGON NUT M8X1,25 |
11 | 16607724 | HEXAGON BOLT M10X1,5X30 MM (8.8) |
12 | 16608424 | SCREW M10X1,25X65 |
13 | 4799474 | HEXAGON NUT |
14 | 8017589 | SEA WATER PUMP ASSY [from 10-94] |
15 | 8019570 | GEAR [from 10-94] |
