8291SRM75.11

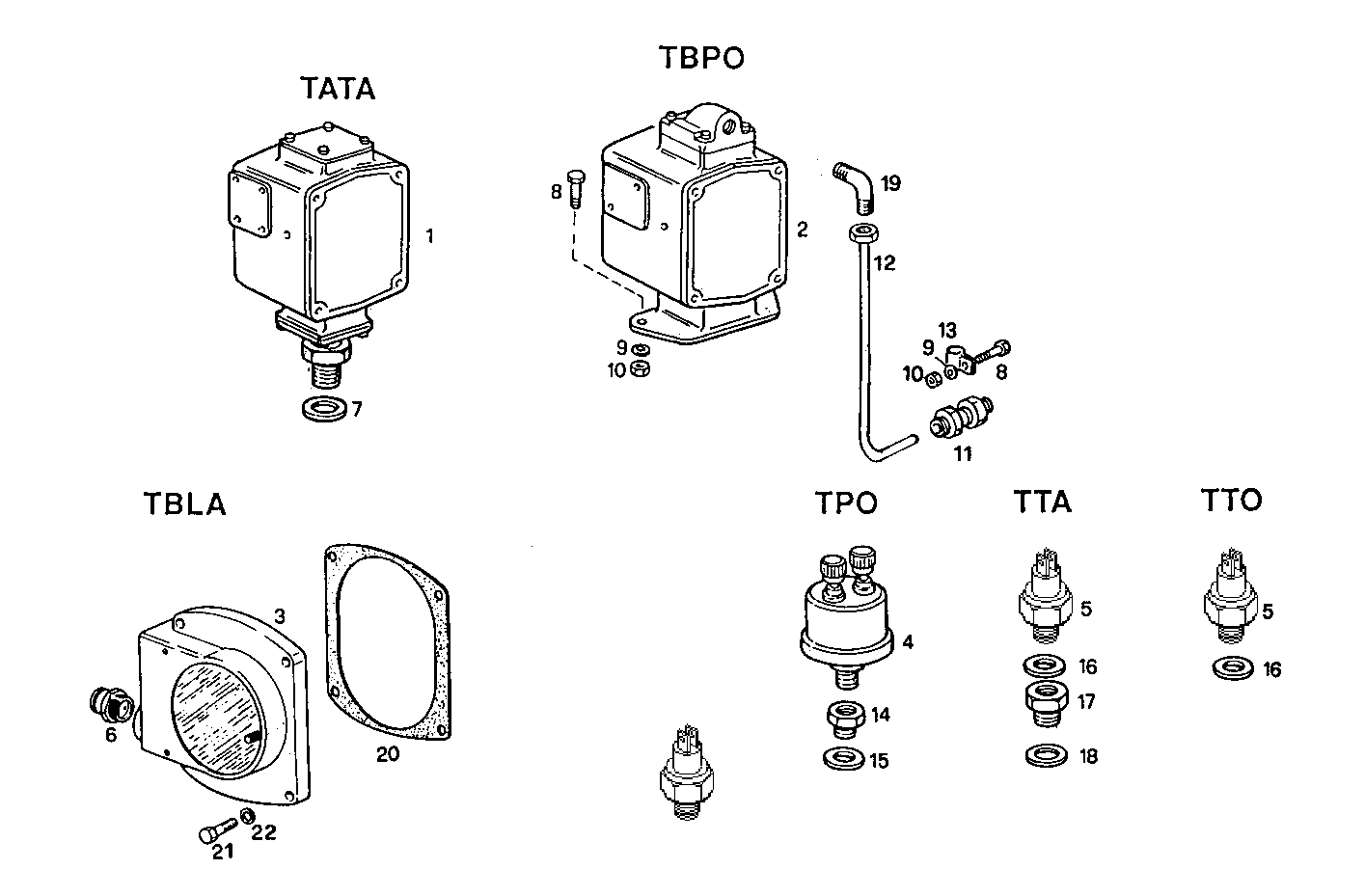

5610.029 INSTRUMENTS [D 05-1995] [from05-1995]

Iveco/FPT INSTRUMENTS

Item Part number Description
1 8110742 TRANSMITTER
2 8110741 TRANSMITTER TBPO
3 8015974 TRANSMITTER
4 8100417 TRANSMITTER TPO
5 8100418 TRANSMITTER TTA
6 8113194 CONNECTION [up to 08-94]
7 11271460 GASKET Ø21X26X1,5 MM
8 16603724 HEXAGON BOLT M6X20 MM (8.8)
9 17088474 WASHER Ø6X12 MM
10 17037821 HEXAGON NUT M6X1
11 8111316 PIPE SOCKET
12 8020403 OIL LINE
13 17316190 PIPE CLIP Ø6 MM
14 8011514 THREADED UNION
15 4858609 WASHER Ø16X22 MM SP=1,5 MM
16 4858608 SEAL GASKET dia.14x19,5x1,5
17 4927760 PIPE SOCKET M22X1,5
18 10263460 WASHER Ø22X28X1,5 MM
19 8111261 PIPE SOCKET Ø1/8'' MM
20 8015975 FLAT ENGINE GASKET
21 16688077 SCREW
22 17101334 SPRING WASHER Ø5 MM
