8291SRM75.12

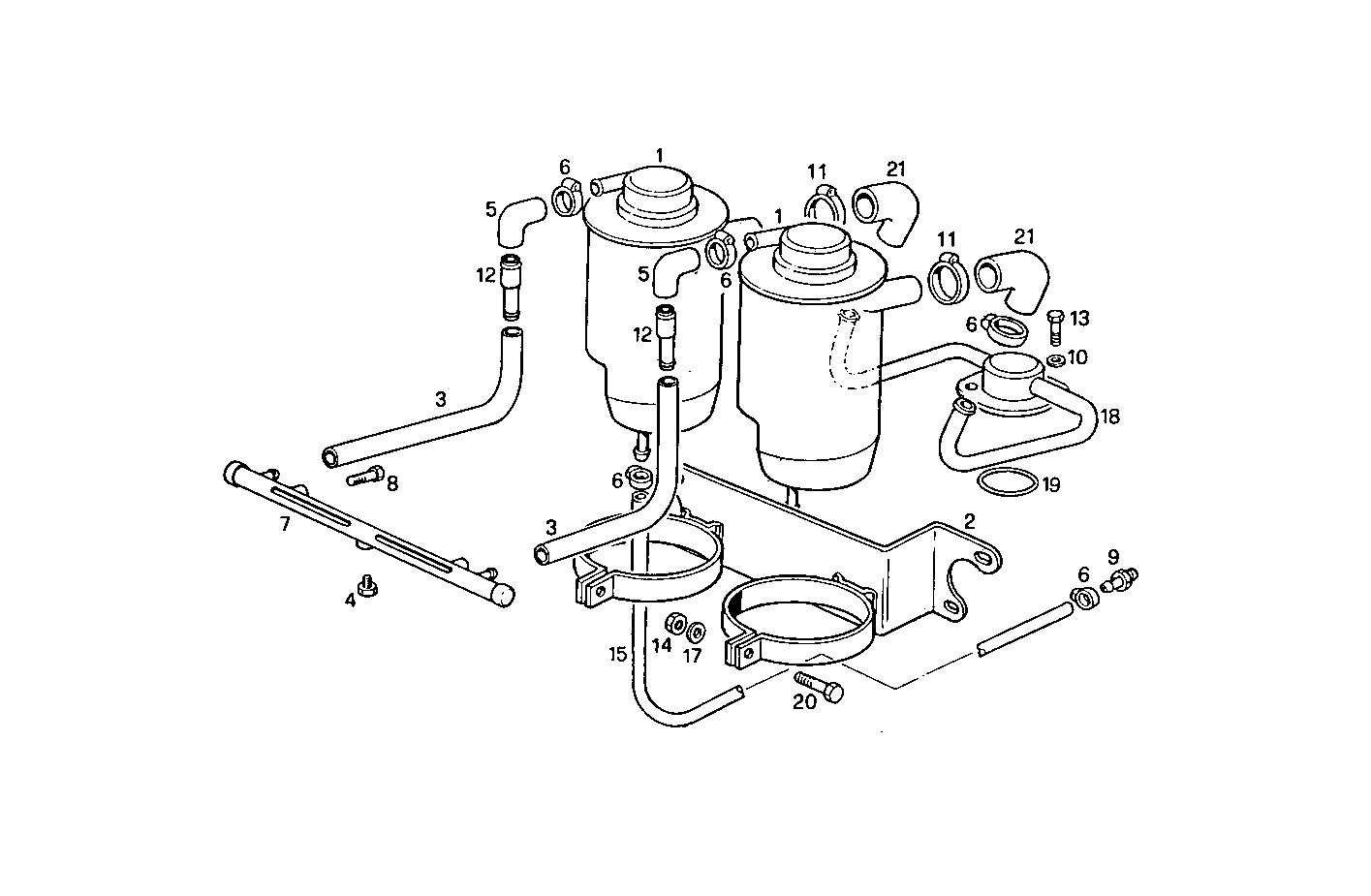

0450.067 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 7303441 BREATHER [up to 03-97]
2 8015375 RETAINER
3 8016953 AIR HOSE
4 16996040 PLUG M10X1
5 8013466 WATER HOSE [up to 03-97]
6 18088391 CLIP Ø16/25 MM
7 8018551 BREATHER PIPE
8 16690424 CYLIND-HEAD SCREW M8X1,25X16 MM
9 4616630 THREADED UNION
10 17090174 SPRING WASHER Ø10X20 MM
11 17764691 CLIP Ø25/40 MM
12 8016954 RUBBER SLEEVE
13 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
14 17037931 HEXAGON NUT M8X1,25
15 8015676 AIR HOSE
17 17094914 WASHER 8x16
18 8015374 BREATHER PIPE
19 17283581 O-RING Ø44,12 MM SP=2,62 MM
20 16605524 HEXAGON BOLT M8X20 MM
21 4776498 RUBBER SLEEVE
