8291SRM75.12

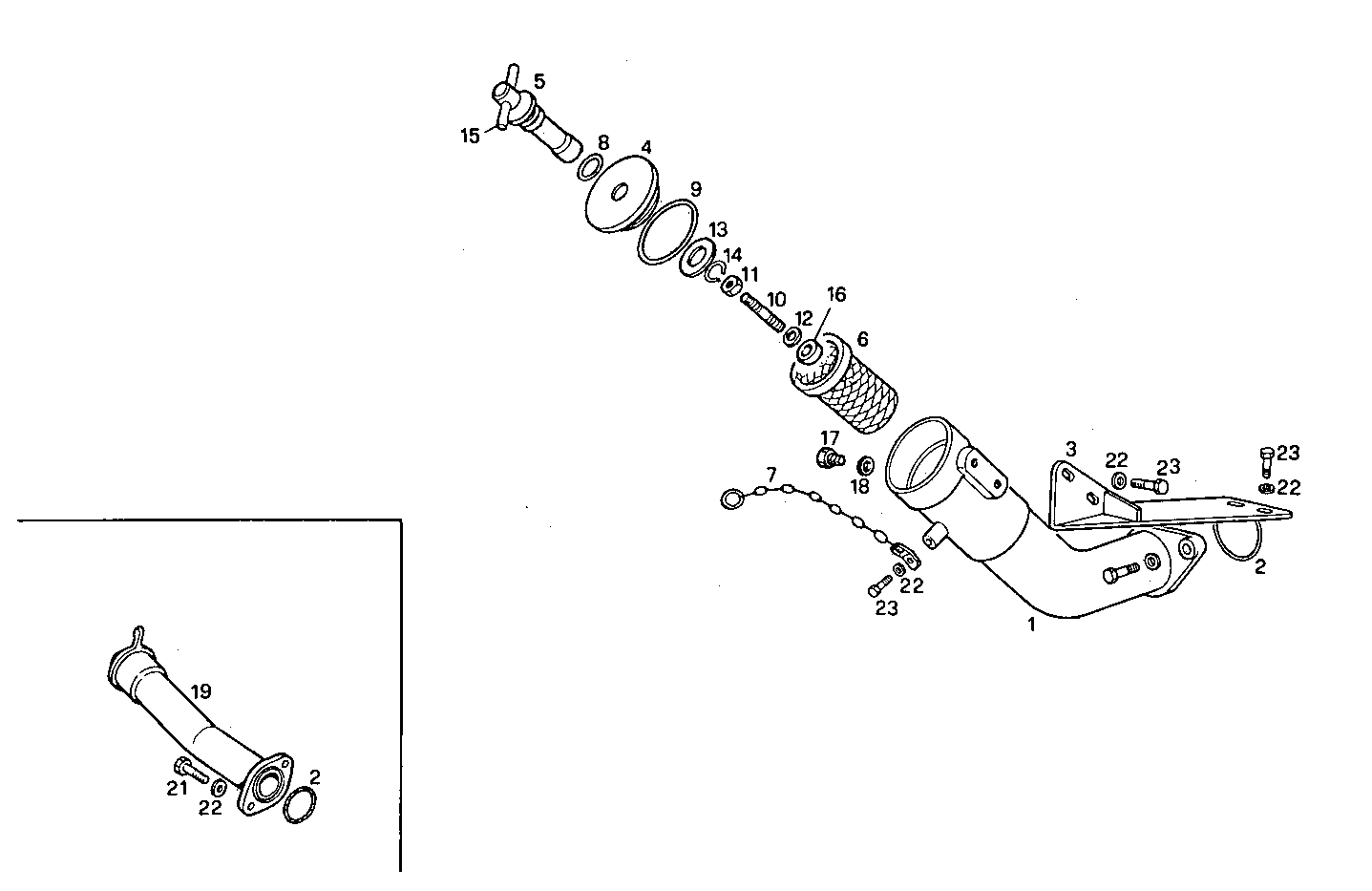

2710.047 OIL DIPSTICK
| Item | Part number | Description |
|---|---|---|
| 1 | 8017071 | OIL FILLER PIPE |
| 2 | 17289981 | O-RING Ø53,57X3,53 MM |
| 3 | 8017082 | RETAINER |
| 4 | 4882506 | COVER |
| 5 | 4882529 | ROD |
| 6 | 4882530 | STRAINER |
| 7 | 4882591 | CHAIN |
| 8 | 4854897 | O-RING |
| 9 | 17296081 | O-RING Ø56,52X5,33 MM |
| 10 | 16706824 | STUD |
| 11 | 17037931 | HEXAGON NUT M8X1,25 |
| 12 | 17094914 | WASHER 8x16 |
| 13 | 17095704 | WASHER Ø16X30 MM |
| 14 | 16865776 | CIRCLIP Ø15,7 MM |
| 15 | 17239320 | PIN |
| 16 | 17816014 | SPACING BAR Ø8,5X18X5 MM |
| 17 | 16992340 | THREADED PLUG M14X1,5 |
| 18 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
| 19 | 8013621 | FILLER NECK |
| 21 | 16605734 | HEXAGON BOLT M8X30 MM |
| 22 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 23 | 16605424 | SCREW M8X16 MM (8.8) |
