8291SRM75.31

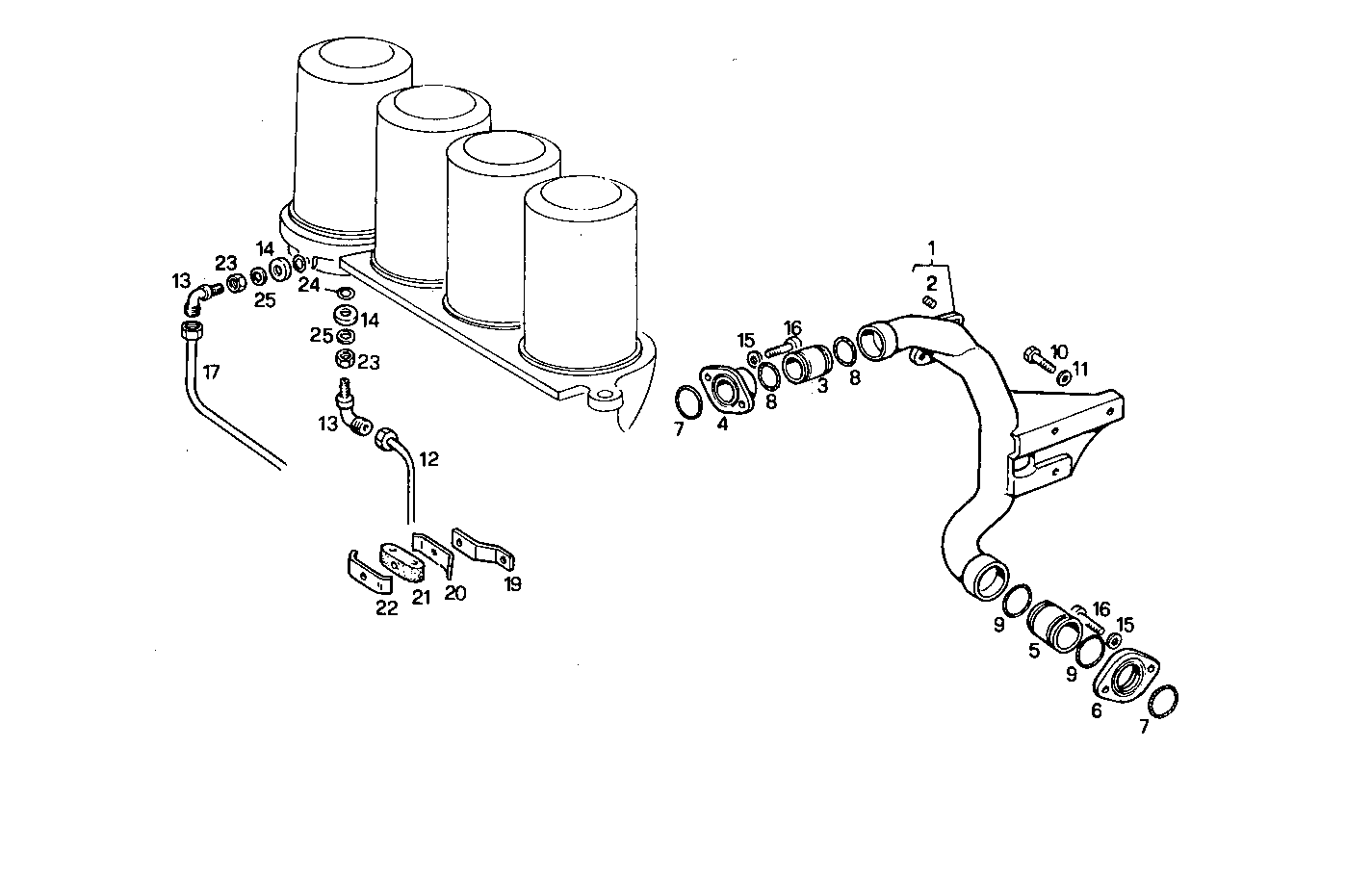

3010.063/02 LUBE OIL LINES
| Item | Part number | Description |
|---|---|---|
| 1 | 8012808 | OIL LINE ASSY |
| 2 | 17873271 | THREADED INSERT M8 |
| 3 | 8009898 | RUBBER SLEEVE |
| 4 | 4786965 | FLANGE |
| 5 | 8012825 | SPACING BAR |
| 6 | 8012828 | FLANGE |
| 7 | 17283781 | O-RING Ø47,29X2,62 MM |
| 8 | 17289681 | O-RING Ø44 MM SP=3,53 MM |
| 9 | 17284281 | O-RING Ø55,24X2,62 MM |
| 10 | 15970921 | HEXAGON BOLT M10X1,25X35 MM |
| 11 | 17095104 | WASHER Ø10X21X2 MM |
| 12 | 8016434 | OIL LINE |
| 13 | 8006222 | PIPE SOCKET [from 05-92] |
| 14 | 8006339 | CAP |
| 15 | 17094914 | WASHER 8x16 |
| 16 | 16605734 | HEXAGON BOLT M8X30 MM |
| 17 | 8016493 | OIL LINE |
| 19 | 8008962 | RETAINER |
| 20 | 4864288 | CLAMP |
| 21 | 4871771 | RUBBER LUG |
| 22 | 4864289 | CLAMP |
| 23 | 16508711 | NUT M14X1,5 [from 05-92] |
| 24 | 17281581 | O-RING Ø12,37X2,62 MM |
| 25 | 4858608 | SEAL GASKET dia.14x19,5x1,5 |
