8291SRM75.32

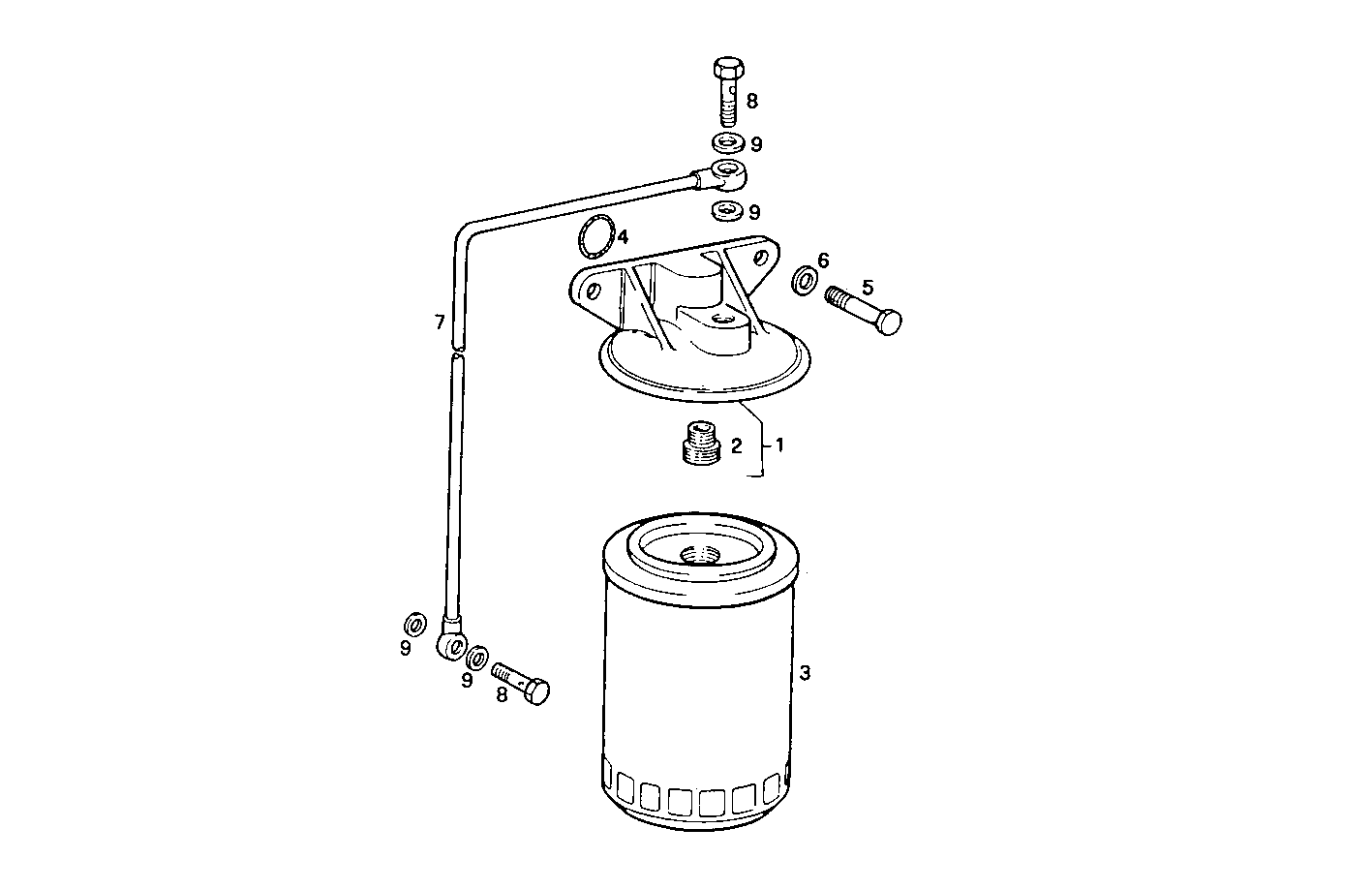

3280.009 WATER FILTER
Item | Part number | Description |
---|---|---|
1 | 4807728 | FILTER SUPPORT |
2 | 4807730 | BREATHER CONN. |
3 | 4735872 | WATER FILTER CARTRIDGE |
4 | 17282181 | O-RING Ø21,8 MM SP=2,6 MM |
5 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
6 | 17094914 | WASHER 8x16 |
7 | 8014081 | WATER PIPE |
8 | 4864083 | SCREW CONNECTOR M14X1,5X30 MM |
9 | 98474308 | SEAL GASKET Ø14X22 MM |
