8291SRM75.32A003

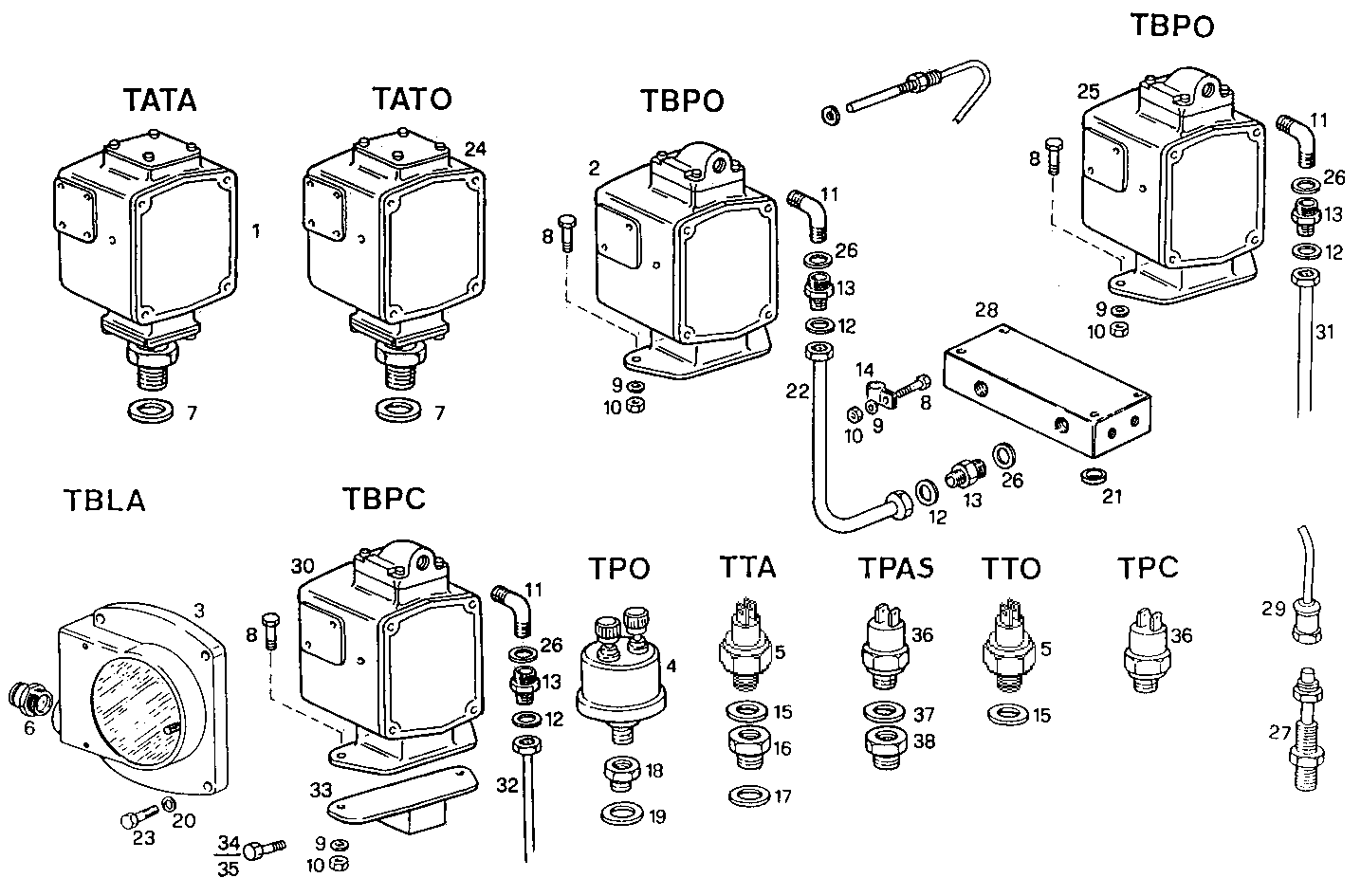

5610.032 INSTRUMENTS

Iveco/FPT INSTRUMENTS

Item Part number Description
1 8110740 TRANSMITTER TATA
2 8110741 TRANSMITTER TBPO
3 8020320 TRANSMITTER
4 8100417 TRANSMITTER TPO
5 8100418 TRANSMITTER TTA
6 8113194 CONNECTION [up to 08-94]
7 11271460 GASKET Ø21X26X1,5 MM
8 16603724 HEXAGON BOLT M6X20 MM (8.8)
9 17088474 WASHER Ø6X12 MM
10 17037821 HEXAGON NUT M6X1
11 8111261 PIPE SOCKET Ø1/8'' MM
12 4858607 WASHER Ø12X17 MM SP=1,5 MM
13 16500011 PIPE SOCKET
14 17316190 PIPE CLIP Ø6 MM
15 4858608 SEAL GASKET dia.14x19,5x1,5
16 4927760 PIPE SOCKET M22X1,5
17 10263460 WASHER Ø22X28X1,5 MM
18 8011514 THREADED UNION
19 4858609 WASHER Ø16X22 MM SP=1,5 MM
20 17101334 SPRING WASHER Ø5 MM
21 17816014 SPACING BAR Ø8,5X18X5 MM
22 8020723 OIL LINE
23 16688077 SCREW
24 8111450 TRANSMITTER TATO
25 8110739 TRANSMITTER TBPO
26 4858606 GASKET Ø10X14X1 MM
27 8018673 PICK-UP
28 8021839 DISTRIBUTOR
29 8021856 HOSE L=450 MM
30 8111741 TRANSMITTER
31 8021850 OIL LINE
33 8022289 RETAINER
34 16605724 SCREW M8X1,25X30
35 16605824 HEXAGON BOLT M8X35 MM
36 8022214 TRANSMITTER
37 4858610 WASHER Ø18X24 MM SP=1,5 MM
38 8012724 PIPE SOCKET
