8291SRM75.32A005

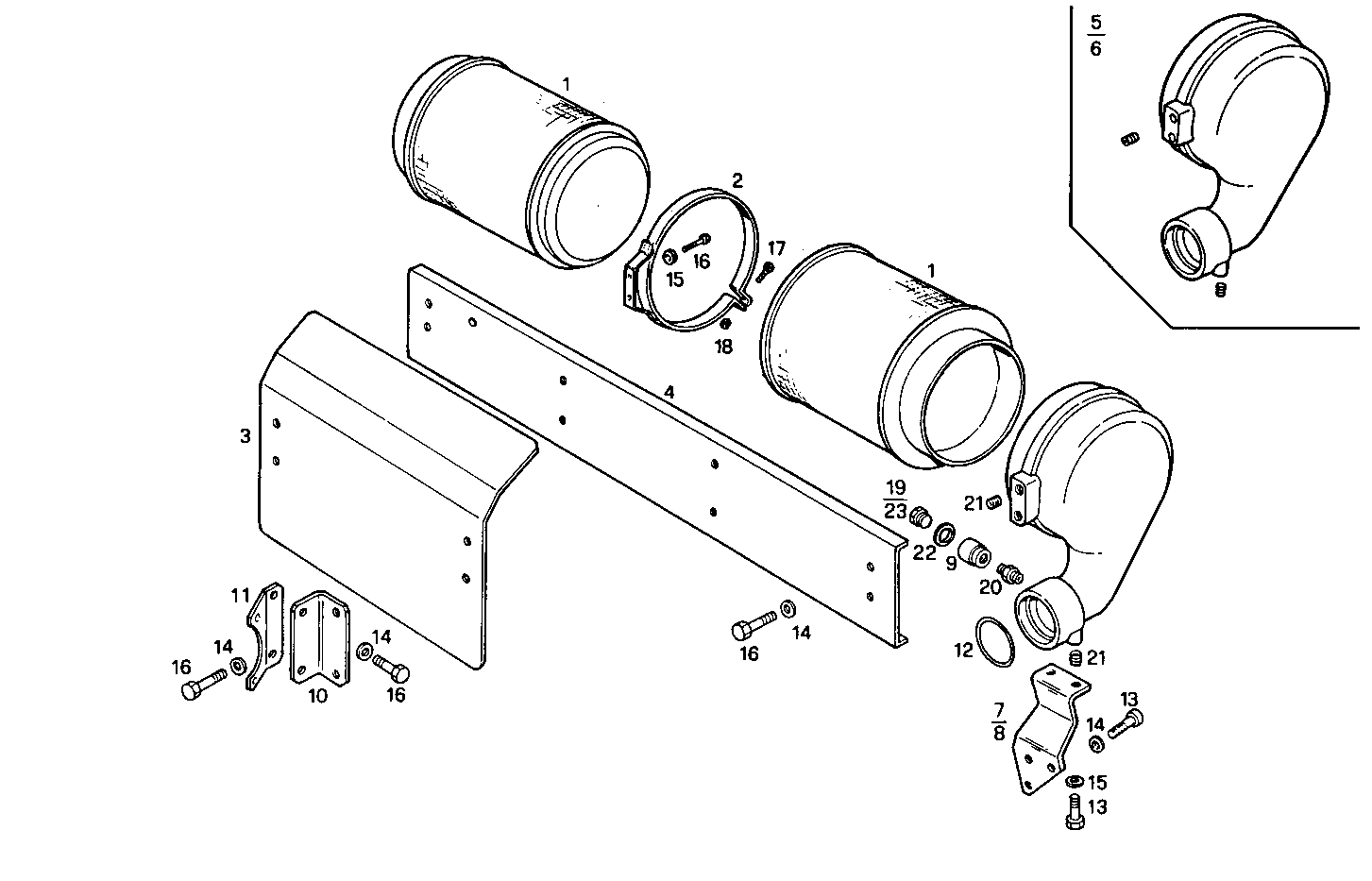

2210.019 AIR CLEANER

Iveco/FPT AIR CLEANER

Item Part number Description
1 8110994 AIR CLEANER ASSY MANN
2 8012757 SPACING BAR
3 8009175 PROTECTION
4 8009174 SUPPORT
5 8009100 INTAKE ELBOW ASSY LEFT
6 8009102 INTAKE ELBOW ASSY RIGHT
7 8009172 SUPPORT
8 8009173 SUPPORT
9 2427063 AIR PRESSURE GAUGE
10 8009176 RETAINER
11 8009177 RETAINER
12 17291081 O-RING Ø88,49X3,53 MM
13 16605524 HEXAGON BOLT M8X20 MM
14 17089774 SPRING WASHER Ø8,4X22 MM SP=2,4 MM
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 16605624 HEXAGON BOLT M8X25 MM (8.8)
17 16607724 HEXAGON BOLT M10X1,5X30 MM (8.8)
18 17103721 NUT
19 8105144 PLUG
20 8009522 PIPE SOCKET
21 17873271 THREADED INSERT M8
22 4858608 SEAL GASKET dia.14x19,5x1,5
23 16992311 LOCK PLUG M14X1,5
