8291SRM75.32A007

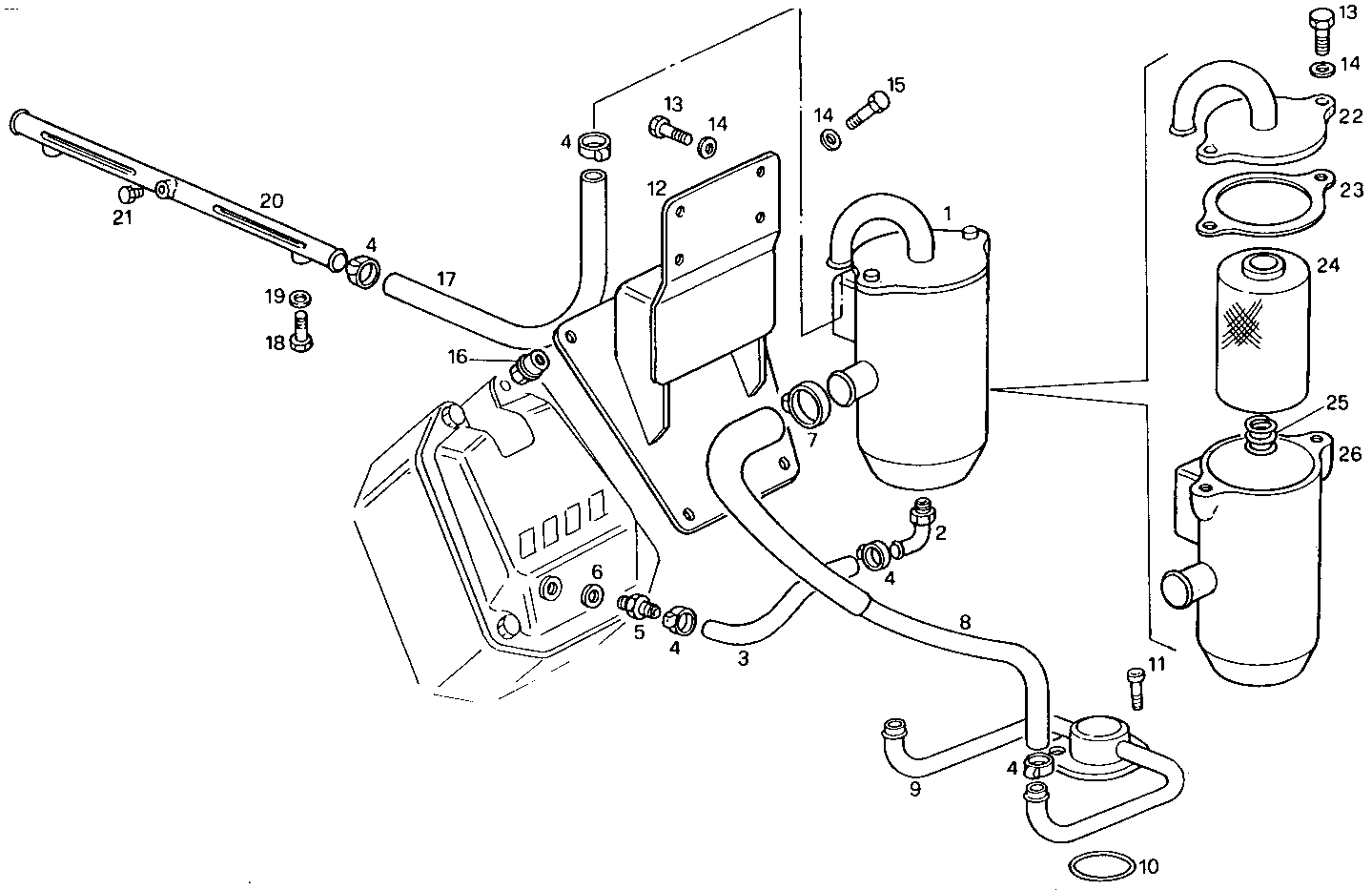

0450.136 ENGINE BREATHERS [FROM # 4/99] [FROM # 4/99]

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 8028041 BREATHER
2 8111261 PIPE SOCKET Ø1/8'' MM
3 8028726 HOSE
4 17764593 CLIP Ø20/32 MM
5 16500011 PIPE SOCKET
6 16550760 GASKET Ø10X13,5 MM SP=1
7 17764793 CLIP Ø32/50 MM
8 8027192 HOSE
9 8027984 BREATHER PIPE
10 17283581 O-RING Ø44,12 MM SP=2,62 MM
11 16690424 CYLIND-HEAD SCREW M8X1,25X16 MM
12 8027967 SUPPORT
13 16605524 HEXAGON BOLT M8X20 MM
14 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
15 16605424 SCREW M8X16 MM (8.8)
16 8026366 PIPE SOCKET
17 8028037 HOSE
18 16607524 HEXAGON BOLT M10X1,5X20 MM (8.8)
19 17090174 SPRING WASHER Ø10X20 MM
20 8028013 BREATHER PIPE
21 16996040 PLUG M10X1
22 8027979 COVER
23 8023819 GASKET
24 4788504 FUEL FILTER ELEM.
25 4965120 SPRING
26 8027983 BREATHER
