8291SRM75.32A007

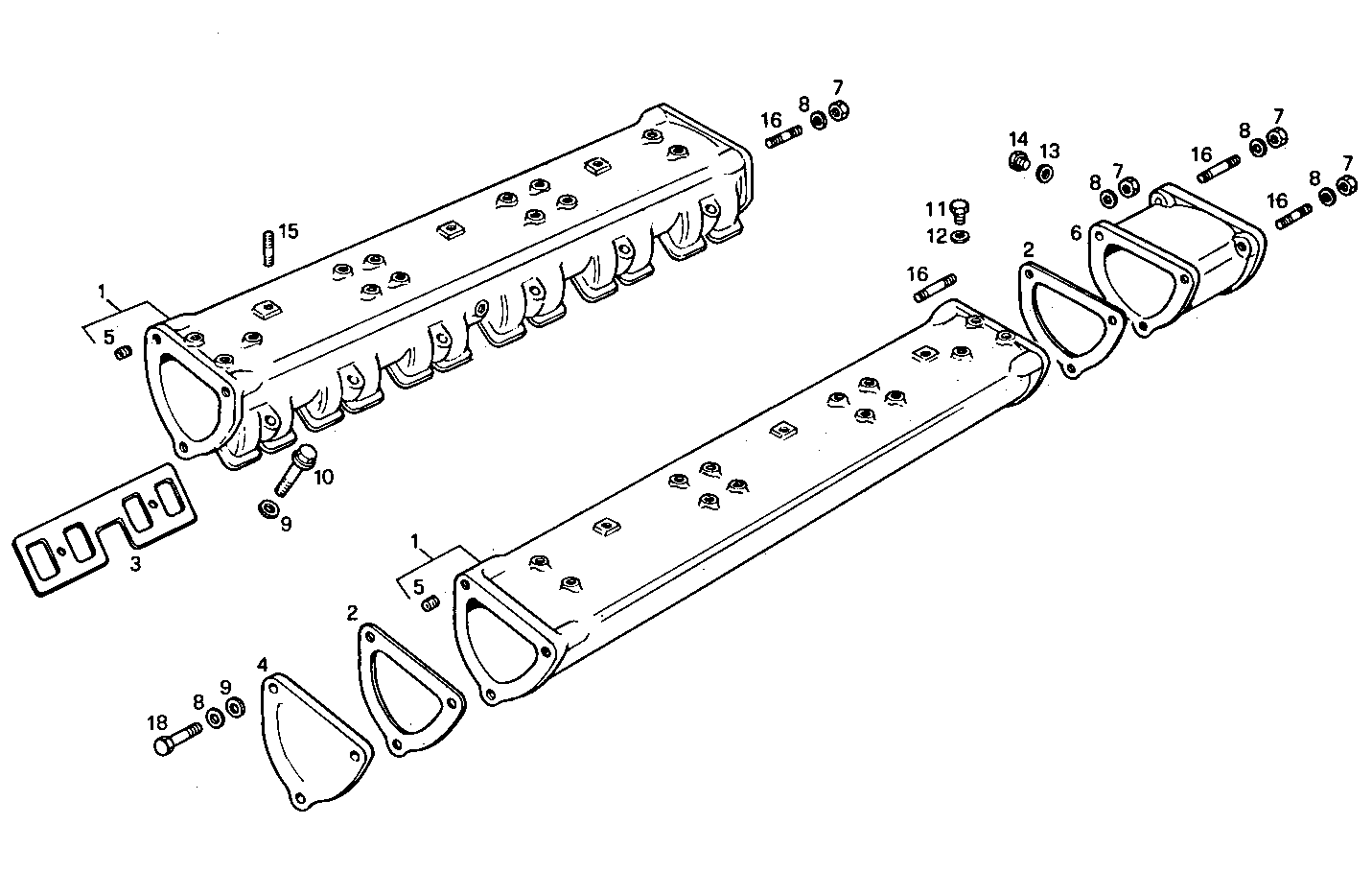

0710.038 INTAKE MANIFOLD

Iveco/FPT INTAKE MANIFOLD

Item Part number Description
1 8008388 INTAKE ELBOW ASSY
2 4786886 GASKET
3 4790542 INTAKE ELBOW GASK.
4 4718509 COVER
5 17873371 THREADED INSERT M10X1,5
6 8104267 SPACING BAR
7 17038121 HEXAGON NUT M10
8 17090174 SPRING WASHER Ø10X20 MM
9 16665614 WASHER Ø10,5 MM
10 4720250 SCREW
11 16992211 THREADED PLUG M12X1,5
12 4858607 WASHER Ø12X17 MM SP=1,5 MM
13 4858610 WASHER Ø18X24 MM SP=1,5 MM
14 16992511 THREADED PLUG M18X1,5
15 16727724 STUD M6X20 MM
16 16748624 STUD M10X30 MM
18 16607724 HEXAGON BOLT M10X1,5X30 MM (8.8)
