8291SRM75.32A007

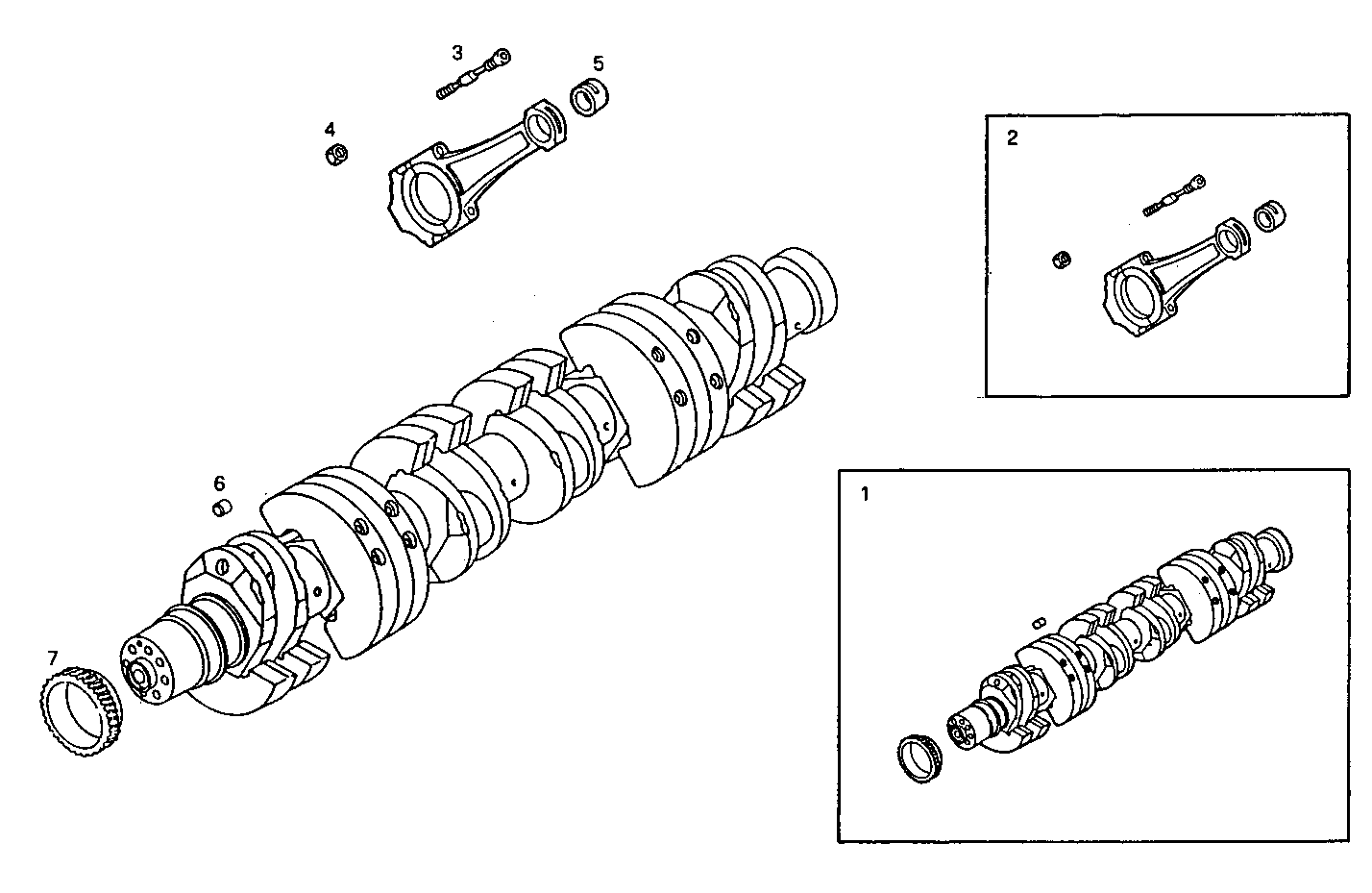

0800.028 CRANK SHAFT - CONNECTING RODS
Item | Part number | Description |
---|---|---|
1 | 8021677 | CRANK SHAFT ASSY |
2 | 4810389 | CONN.ROD ASSY. ASSY |
3 | 4693050 | BIG-END BOLT |
4 | 4693706 | BIG END NUT |
5 | 4800461 | BIG-END BUSH |
6 | 98472271 | THREADED PLUG |
7 | 4817382 | GEAR |
