8291SRM75.32A007

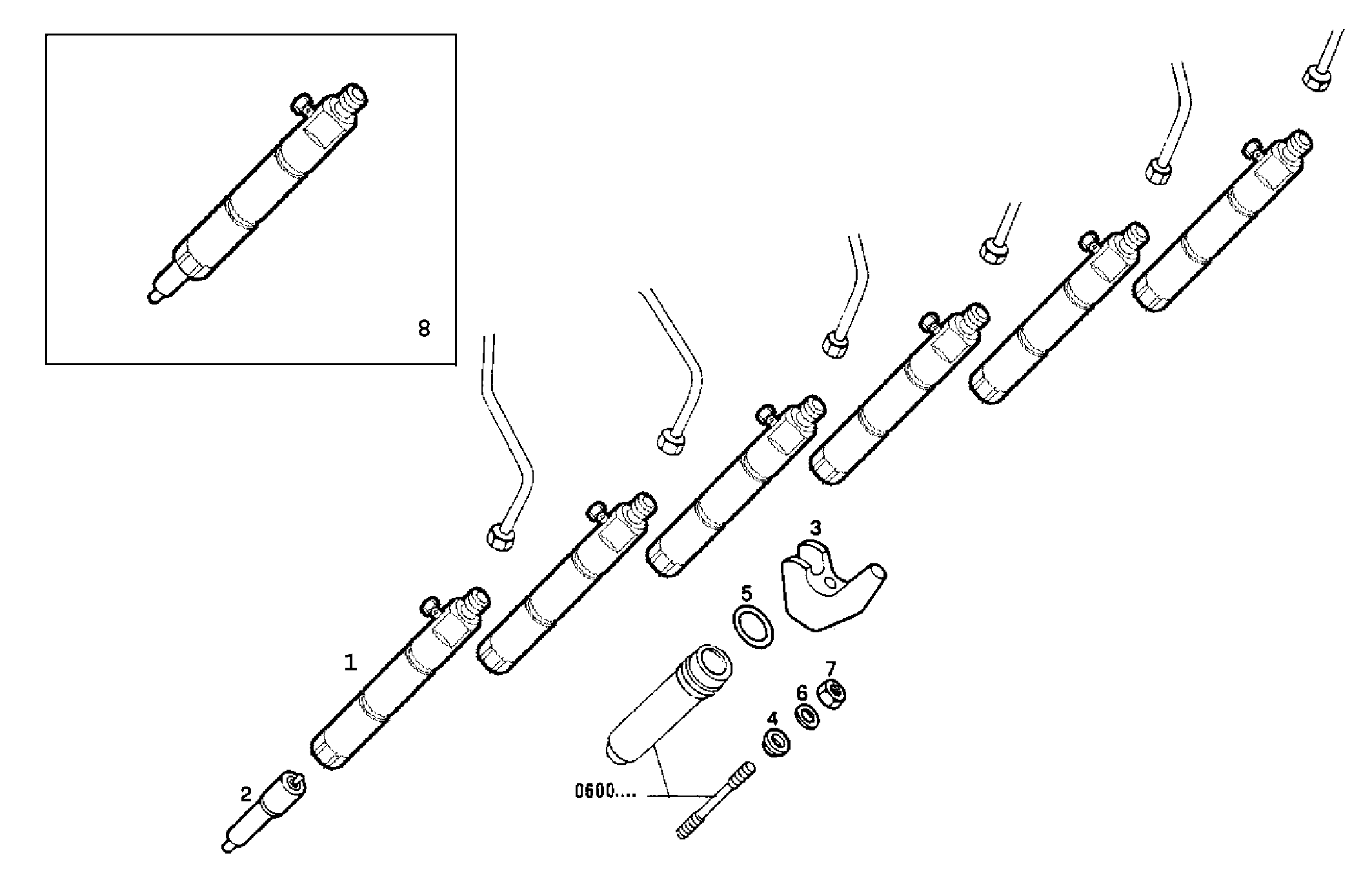

1420.061 INJECTORS
Item | Part number | Description |
---|---|---|
1 | 98458047 | NOZZLE HOLDER ASSY |
2 | 4851447 | FUEL NOZZLE BOSCH |
3 | 4825501 | FASTENING BRACKET |
4 | 4700162 | WASHER Ø11,5 MM |
5 | 17278481 | O-RING Ø17,17 MM SP=1,78 MM |
6 | 17090274 | WASHER Ø10X20 MM |
7 | 17038221 | HEXAGON NUT M10 |
8 | 98458045 | NOZZLE ASSY BOSCH |
