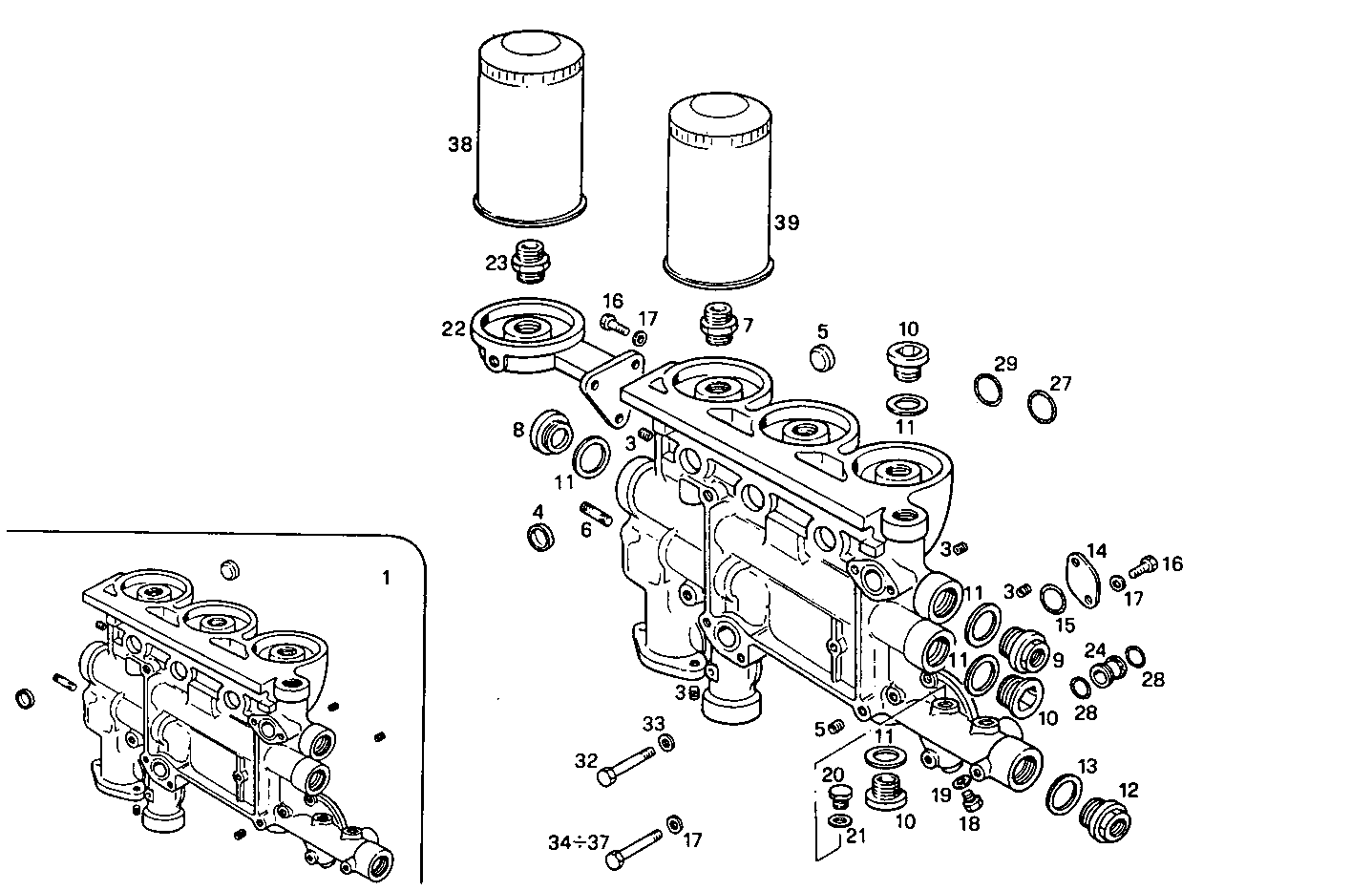

| Item |
Part number |
Description |
|
1 |
8009756 |
OIL FILTER SUPPORT ASSY |
|
2 |
17873371 |
THREADED INSERT M10X1,5 |
|
3 |
17873271 |
THREADED INSERT M8 |
|
4 |
17873171 |
THREADED INSERT M6 |
|
5 |
16991170 |
LOCK PLUG Ø36 MM |
|
6 |
16746624 |
STUD M8X20 MM (8.8) |
|
7 |
4785449 |
PIPE SOCKET |
|
8 |
8009882 |
PLUG |
|
9 |
4882747 |
PIPE SOCKET |
|
10 |
16993811 |
PLUG |
|
11 |
10265360 |
SEAL GASKET Ø40X48 MM SP=1,5 MM |
|
12 |
4765752 |
THREADED UNION |
|
13 |
10296260 |
SEAL GASKET Ø28X36 MM SP=1,5 MM |
|
14 |
8010998 |
FLANGE |
|
15 |
17282581 |
O-RING Ø28,24 MM SP=2,62 MM |
|
16 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
17 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
18 |
11903111 |
LOCK PLUG M10X1,25 |
|
19 |
4858606 |
GASKET Ø10X14X1 MM |
|
20 |
16992211 |
THREADED PLUG M12X1,5 |
|
21 |
4858607 |
WASHER Ø12X17 MM SP=1,5 MM |
|
22 |
8009867 |
OIL FILTER SUPPORT |
|
23 |
4785450 |
THREADED UNION |
|
24 |
4720965 |
CONNECTOR SLEEVE |
|
27 |
17281681 |
O-RING Ø13,9 MM SP=2,6 MM |
|
28 |
17282281 |
O-RING 2,62x23,47 |
|
29 |
17283181 |
O-RING Ø37,77 MM SP=2,62 MM |
|
32 |
15541721 |
HEXAGON BOLT M12X1,25X110 MM |
|
33 |
17091074 |
WASHER Ø12X24X2,8 MM |
|
34 |
16606724 |
HEXAGON BOLT M8X90 MM |
|
35 |
16606024 |
SCREW M8X45 MM |
|
36 |
16605824 |
HEXAGON BOLT M8X35 MM |
|
37 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
38 |
1902093 |
OIL FILTER CARTRIDGE |
|
39 |
4744707 |
OIL FILTER CARTRIDGE |
