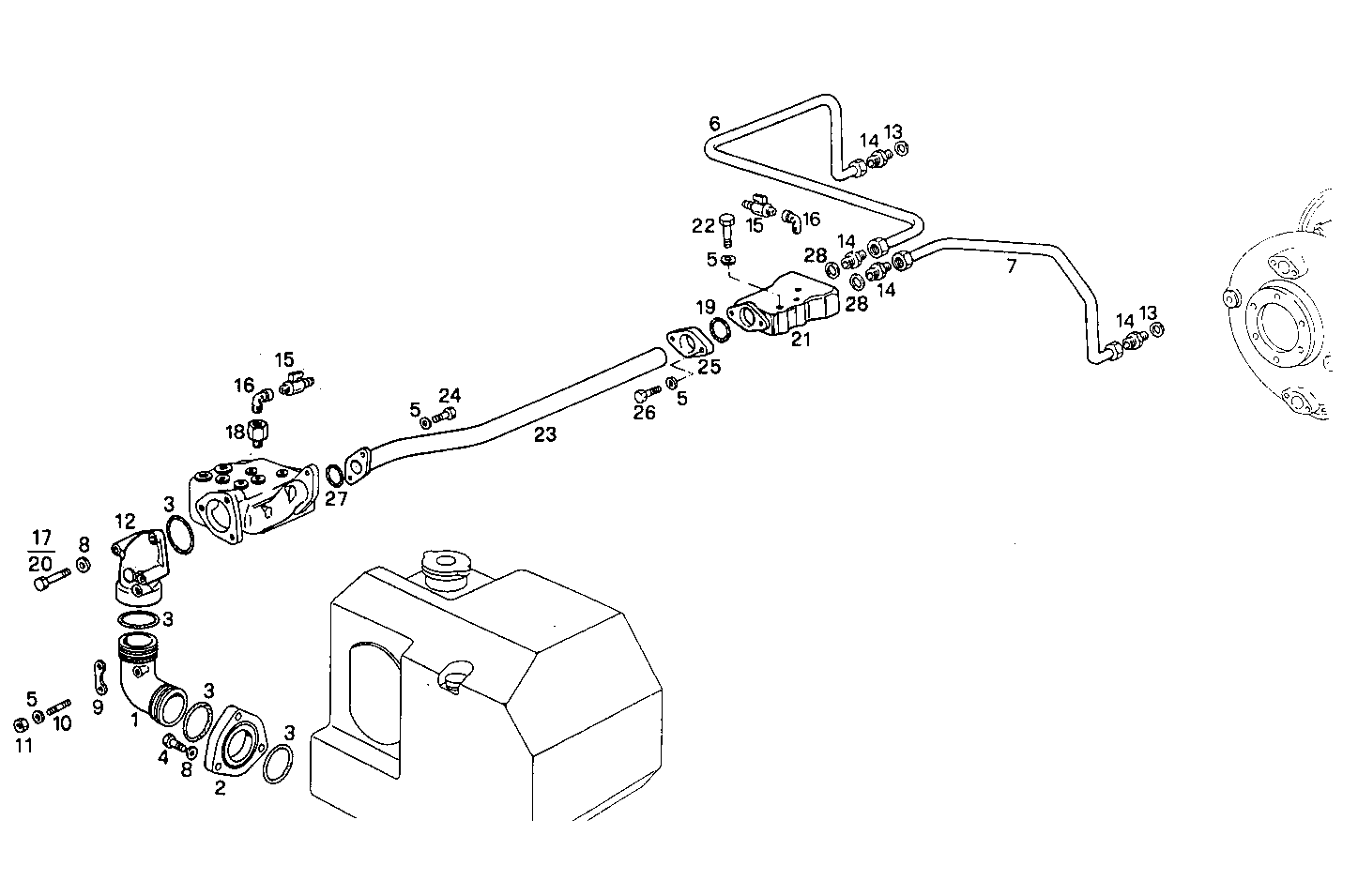

| Item |
Part number |
Description |
|
1 |
8020498 |
WATER PIPE |
|
2 |
8009252 |
FLANGE |
|
3 |
17290581 |
O-RING Ø72,63X3,53 MM |
|
4 |
16606024 |
SCREW M8X45 MM |
|
5 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
6 |
8021903 |
WATER PIPE |
|
7 |
8020583 |
WATER PIPE |
|
8 |
17094914 |
WASHER 8x16 |
|
9 |
8019781 |
PLATE |
|
10 |
16729224 |
STUD M8X16 MM |
|
11 |
17037931 |
HEXAGON NUT M8X1,25 |
|
12 |
8020497 |
WATER PIPE |
|
13 |
98429282 |
SEAL GASKET Ø26X33 MM SP=1,5 MM |
|
14 |
8110943 |
PIPE SOCKET M30X1,5/M25X1,5 |
|
15 |
8113932 |
DRAIN COCK |
|
16 |
8005303 |
PIPE SOCKET M16X1,5 |
|
17 |
16605924 |
SCREW M8X40 MM |
|
18 |
8009273 |
PIPE SOCKET |
|
19 |
17283381 |
O-RING Ø40,94X2,62 MM |
|
20 |
16606624 |
HEXAGON BOLT M8X80 MM |
|
21 |
8020580 |
WATER PIPE |
|
22 |
16606524 |
HEXAGON BOLT M8X70 MM |
|
23 |
8020585 |
WATER PIPE |
|
24 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
25 |
8020582 |
FLANGE |
|
26 |
16606124 |
HEXAGON BOLT M8X50 MM |
|
27 |
17289481 |
O-RING Ø37,69 MM SP=3,53 MM |
|
28 |
8024652 |
O-RING Ø15 MM |
