8291SRM75.32A007

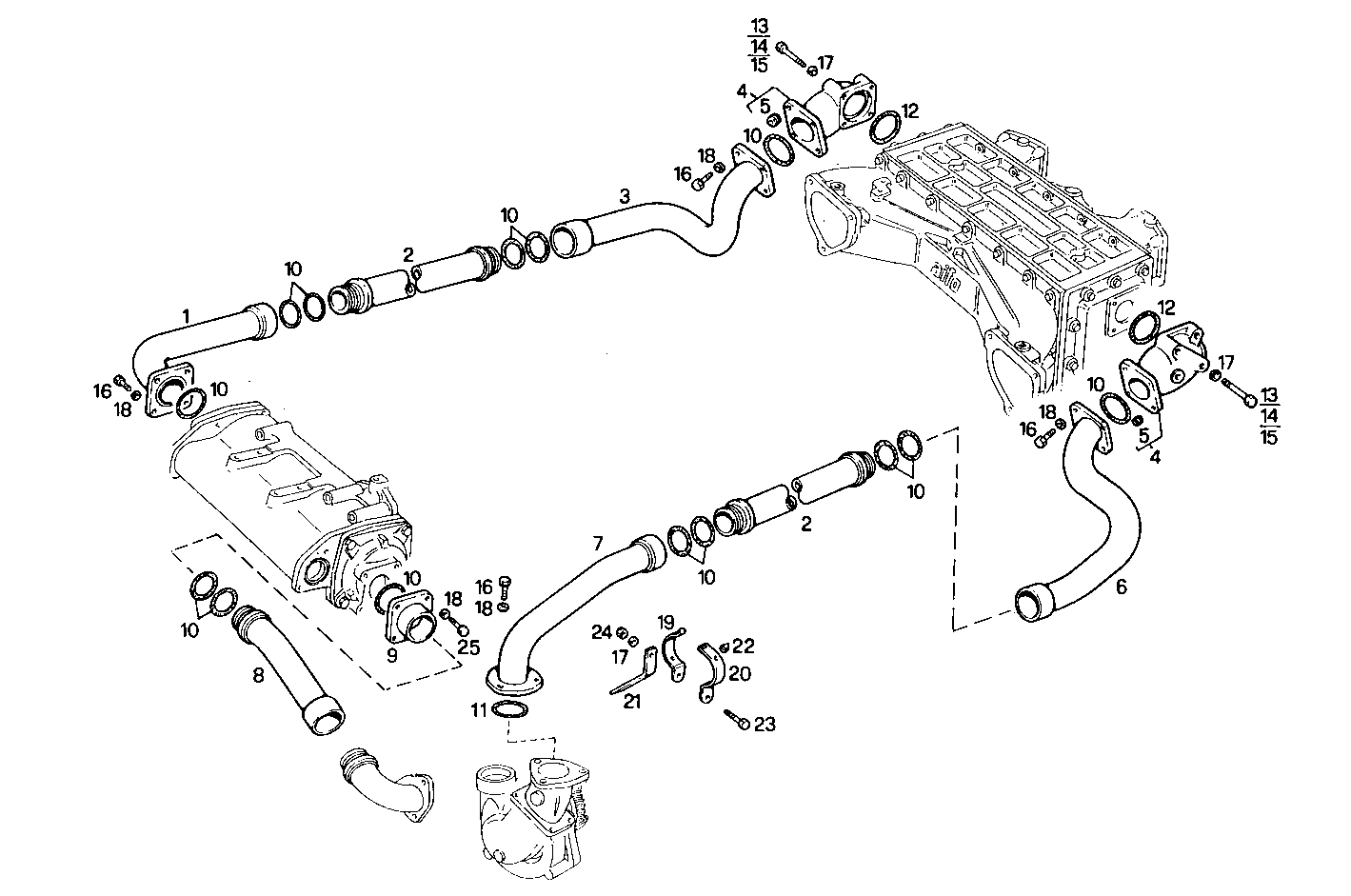

3210.102/05 WATER LINES

Iveco/FPT WATER LINES

Item Part number Description
1 8013979 WATER PIPE
2 8013981 WATER PIPE
3 8013982 WATER PIPE
4 8013644 WATER PIPE ASSY
5 17873271 THREADED INSERT M8
6 8013984 WATER PIPE
7 8026804 WATER PIPE
8 8013977 WATER PIPE
9 8019190 FLANGE
10 17290481 O-RING 3,53x69,44 [UP TO # 328594]
11 17290581 O-RING Ø72,63X3,53 MM
12 17290281 O-RING Ø63,09 MM SP=3,53 MM
13 16608324 HEXAGON BOLT M10X1,5X60 MM
14 16608724 HEXAGON BOLT M10X90 MM
15 16608824 HEXAGON BOLT M10X100 MM
16 16605734 HEXAGON BOLT M8X30 MM
17 17090174 SPRING WASHER Ø10X20 MM
18 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
19 8013655 CLAMP
20 8013656 CLAMP
21 8013983 RETAINER
22 1366290 RUBBER LUG
23 16607624 SCREW M10X25
24 17038121 HEXAGON NUT M10
25 98401723 HEXAGON BOLT M8X1,25X12 MM
