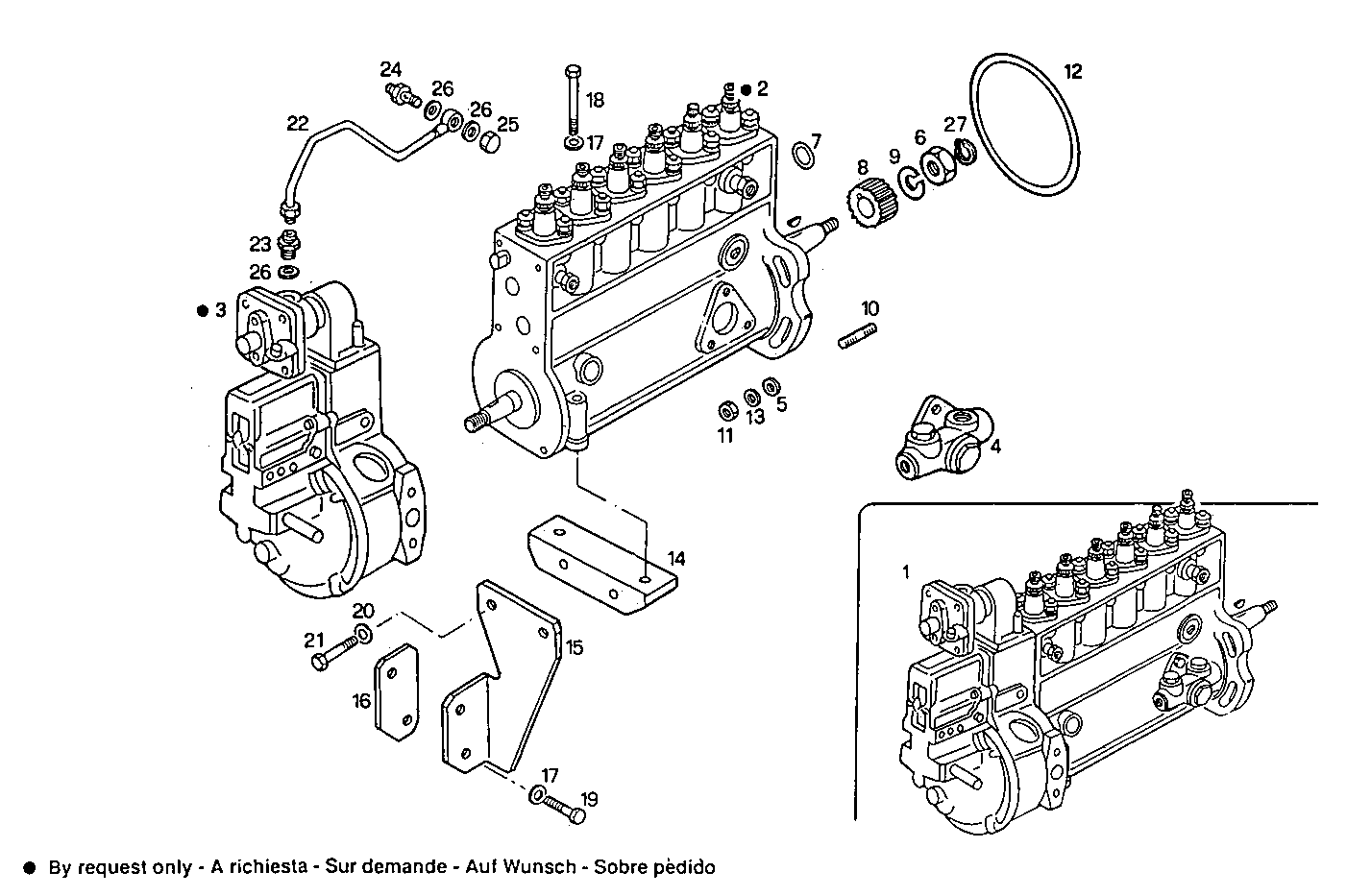

| Item |
Part number |
Description |
|
1 |
98457535 |
INLINE INJECT.PUMP ASSY |
|
4 |
93160462 |
FUEL PUMP ASSY BOSCH |
|
5 |
17090274 |
WASHER Ø10X20 MM |
|
6 |
4750524 |
NUT |
|
7 |
61317701 |
O-RING Ø3,2X10 MM |
|
8 |
4852814 |
INJECT.PUMP BUSH |
|
9 |
4750525 |
WASHER |
|
10 |
13449824 |
STUD M10X1,25X15 MM |
|
11 |
17038221 |
HEXAGON NUT M10 |
|
12 |
99435566 |
O-RING |
|
13 |
12626321 |
WASHER Ø10X25 MM |
|
14 |
4852806 |
SUPPORT |
|
15 |
4852804 |
RETAINER |
|
16 |
4852805 |
PLATE |
|
17 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
18 |
16606724 |
HEXAGON BOLT M8X90 MM |
|
19 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
20 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
21 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
22 |
99441616 |
FUEL LINE ASSY |
|
23 |
16500114 |
THREADED UNION M12X1,5 - M14X1,5 |
|
24 |
99443066 |
THREADED UNION ASSY |
|
25 |
99443060 |
LOCK PLUG M12X1,5 |
|
26 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
27 |
17085876 |
CIRCLIP Ø42 MM |
