8360SRC20.00

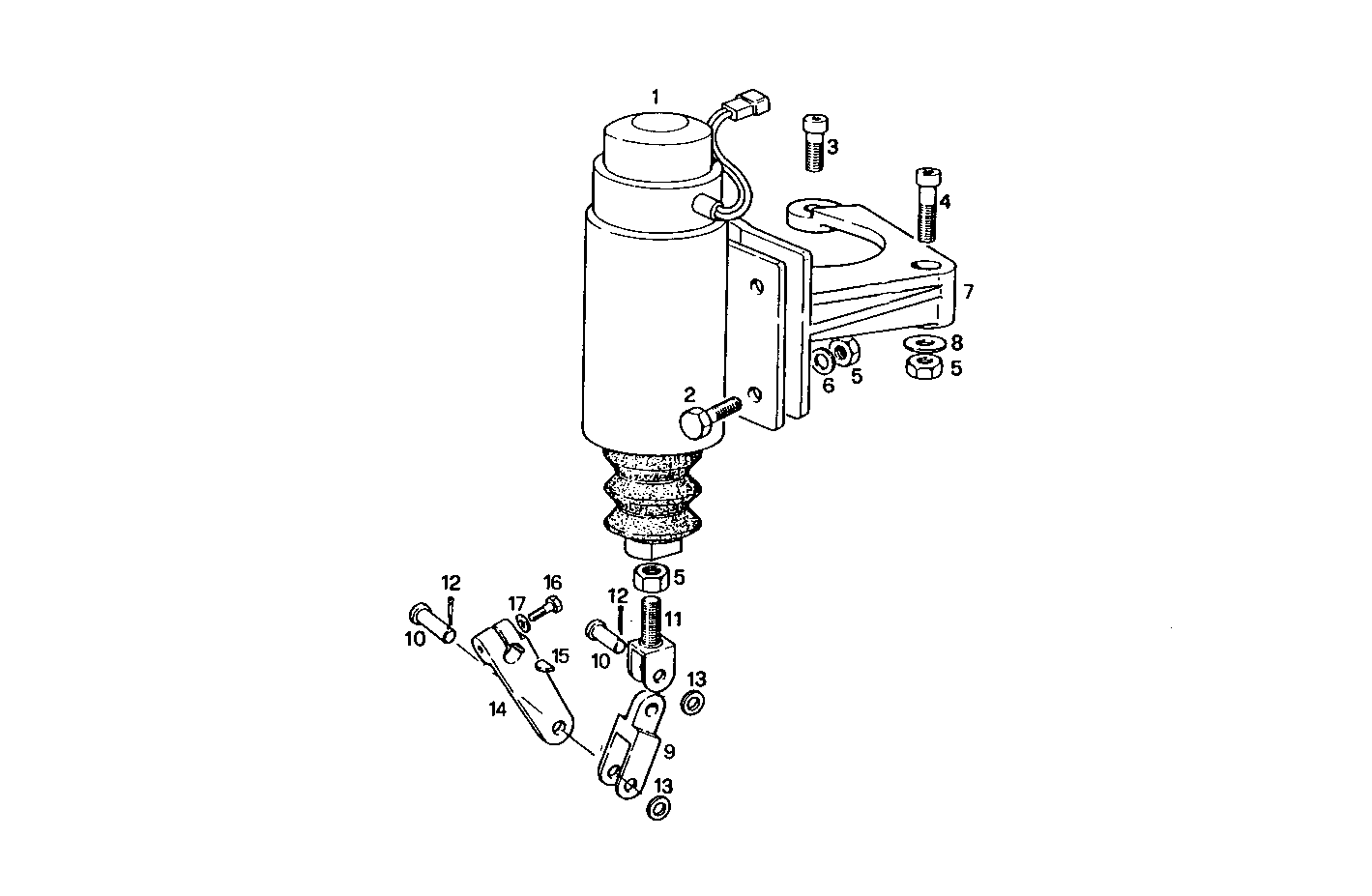

A38420040 STOP SOLENOID - ENERGIZE TO STOP - 24V
| Item | Part number | Description |
|---|---|---|
| 1 | 8105421 | SOLENOID ASSY 24V |
| 2 | 16603624 | HEXAGON BOLT M6X16 MM (8.8) |
| 3 | 16689424 | SOCKET-HEAD SCREW M6X30 MM |
| 4 | 16689324 | SCREW M6X25 |
| 5 | 17037821 | HEXAGON NUT M6X1 |
| 6 | 17088974 | SPRING WASHER Ø6X18X1,4 MM |
| 7 | 8109114 | SUPPORT |
| 8 | 17494734 | WASHER Ø6X11,8X1,6 MM |
| 9 | 8108833 | CLEVIS |
| 10 | 17718411 | PIN Ø5 MM |
| 11 | 8108834 | CLEVIS |
| 12 | 16852501 | SPLIT PIN Ø1,6X12 MM |
| 13 | 17094424 | WASHER |
| 14 | 8006297 | LEVER |
| 15 | 8101048 | KEY 3X5X12,5 |
| 16 | 16602124 | SCREW M5X16 MM |
| 17 | 17494634 | SPRING WASHER Ø5,1X9,2 MM |
