8360SRC21.00

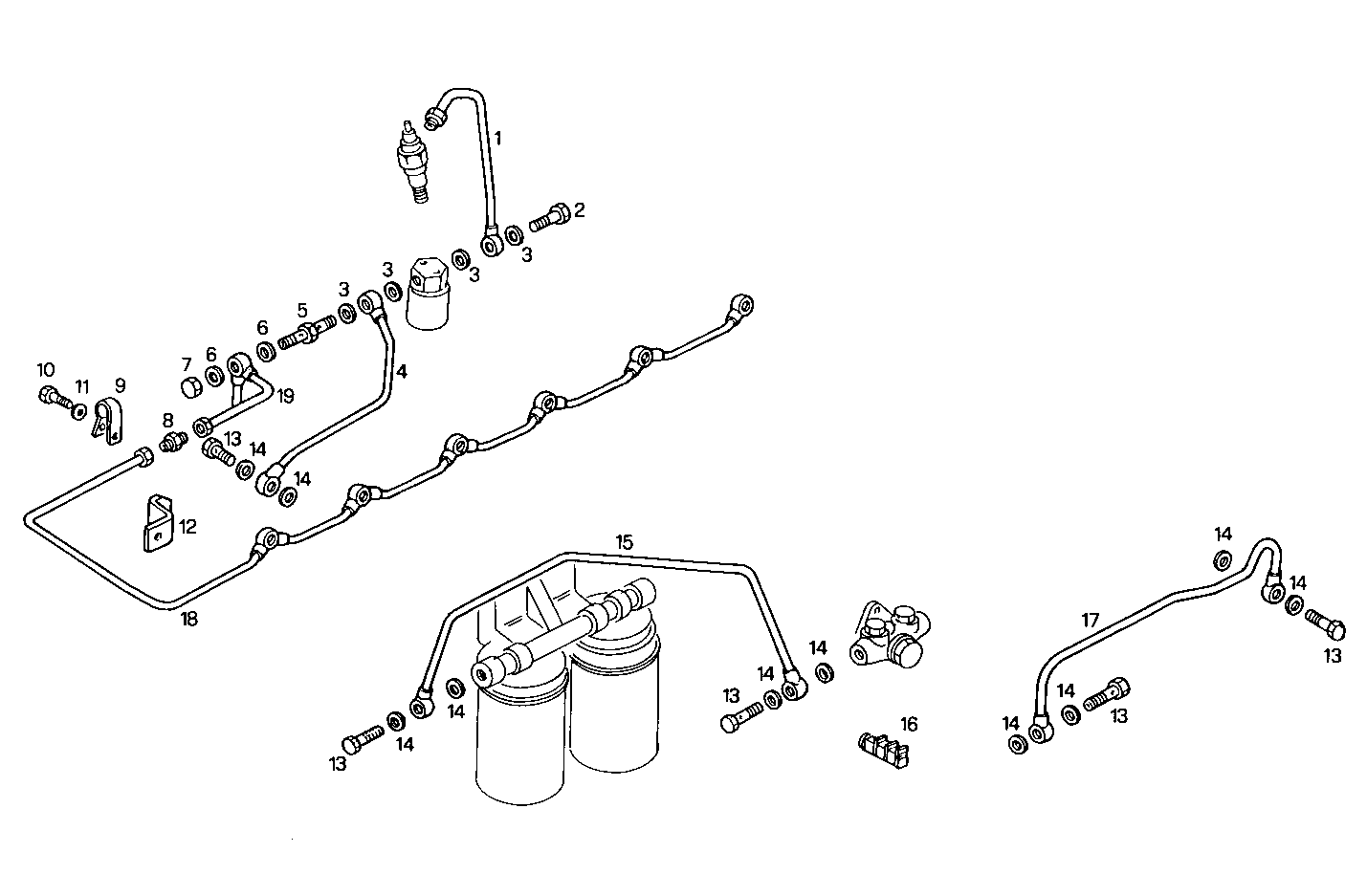

2030.118 FUEL LINES

Iveco/FPT FUEL LINES

Item Part number Description
1 98419563 FUEL LINE
2 4864079 SCREW CONNECTOR M10X1
3 98474305 WASHER Ø10X17 MM SP=2,3
4 98485985 FUEL LINE
5 98469450 BYPASS VALVE
6 98474306 WASHER Ø12X20 MM SP=1,9 MM
7 98469675 THREADED PLUG M12X1
8 16501511 SCREW CONNECTOR M12X1,5
9 17314590 RETAINER Ø6 MM
10 16603624 HEXAGON BOLT M6X16 MM (8.8)
11 17094714 WASHER Ø6,4X12 MM
12 4860244 RETAINER
13 4864083 SCREW CONNECTOR M14X1,5X30 MM
14 98474308 SEAL GASKET Ø14X22 MM
15 99441648 FUEL LINE
16 99442644 SPRING CLAMP ASSY
17 99441650 FUEL LINE ASSY
18 98444238 FUEL LINE
19 98485989 FUEL LINE
