8360SRC21.00

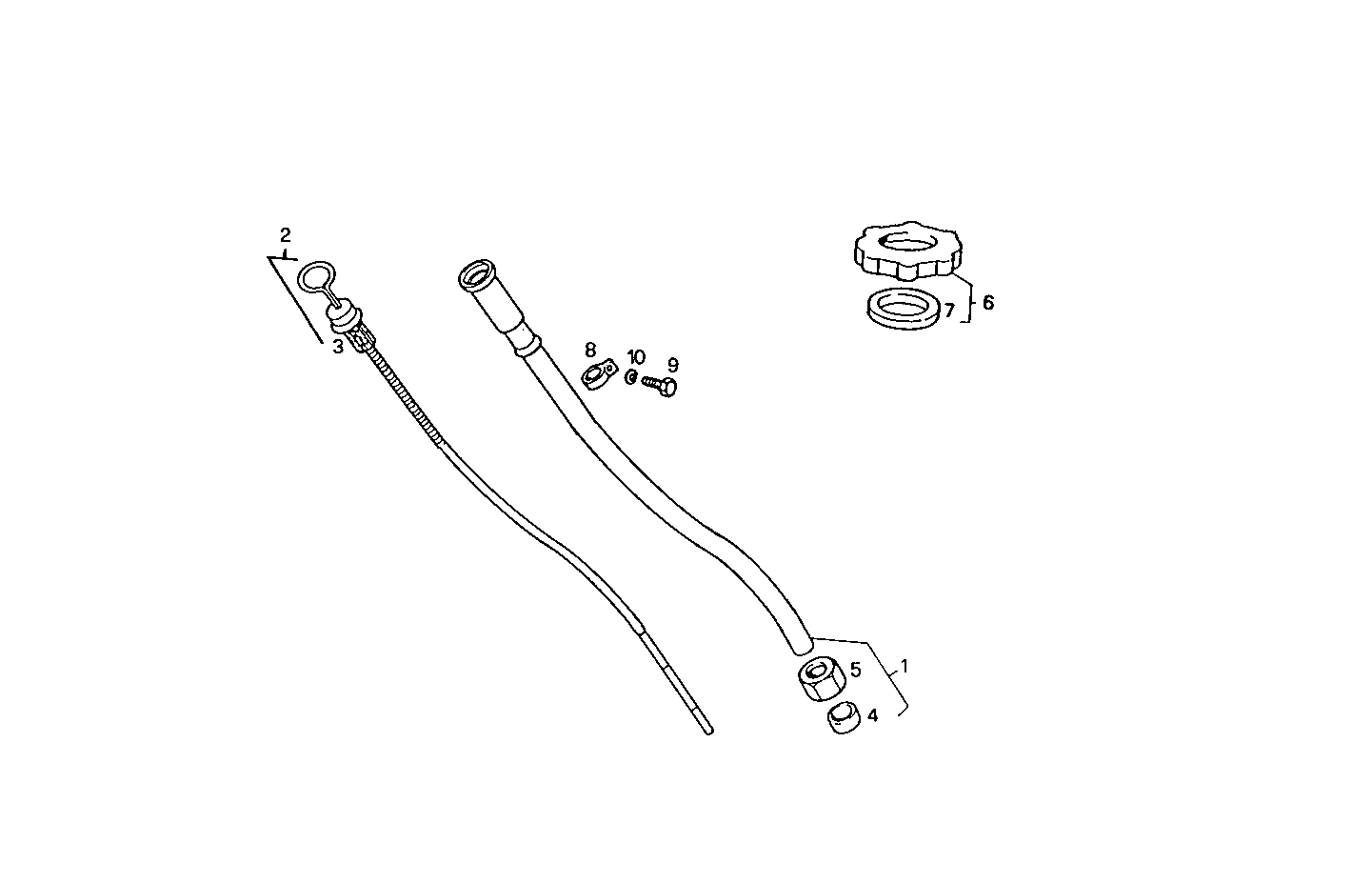

2710.065 OIL DIPSTICK
Item | Part number | Description |
---|---|---|
1 | 98428830 | OIL LEVEL TUBE ASSY |
2 | 98430303 | OIL DIPSTICK ASSY |
3 | 4102056 | RUBBER GASKET |
4 | 4641221 | RING |
5 | 4845669 | NUT |
6 | 98418980 | OIL FILLER PLUG ASSY |
7 | 98418978 | GASKET |
8 | 17315090 | FASTENING BRACKET Ø14 MM |
9 | 10979424 | HEXAGON BOLT M6X10 MM |
10 | 11197774 | WASHER Ø6 MM |
