8360SRC21.00

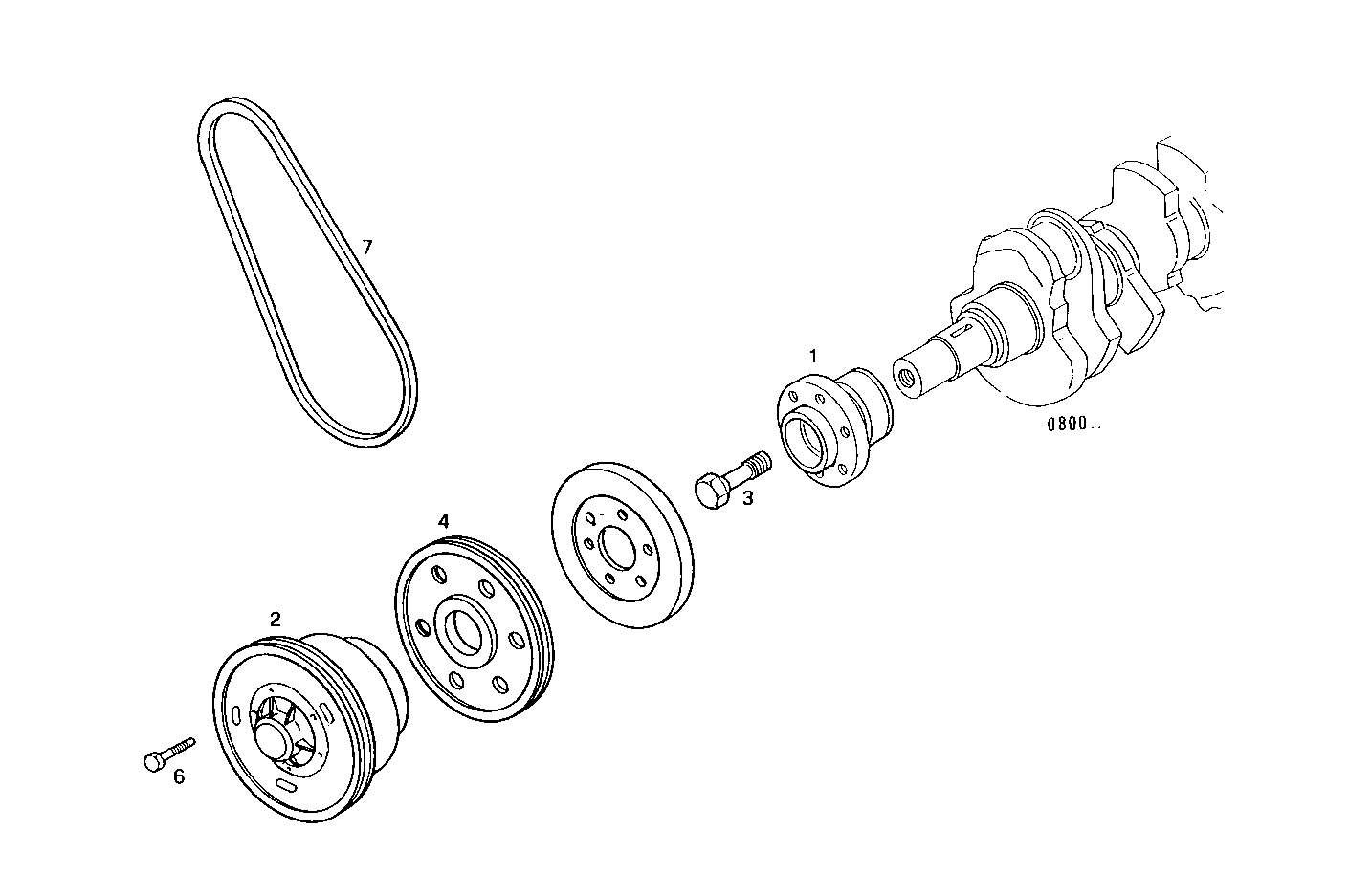

3240.074 PULLEYS AND BELTS
Item | Part number | Description |
---|---|---|
1 | 4852786 | HUB |
2 | 98415051 | CRANKSHAFT PULLEY |
3 | 99435038 | SCREW M27X2X148 MM |
4 | 4849942 | PULLEY |
6 | 16324134 | HEXAGON BOLT M10X60 MM |
7 | 98429196 | ALTERNATOR BELT |
