8360SRC21.00

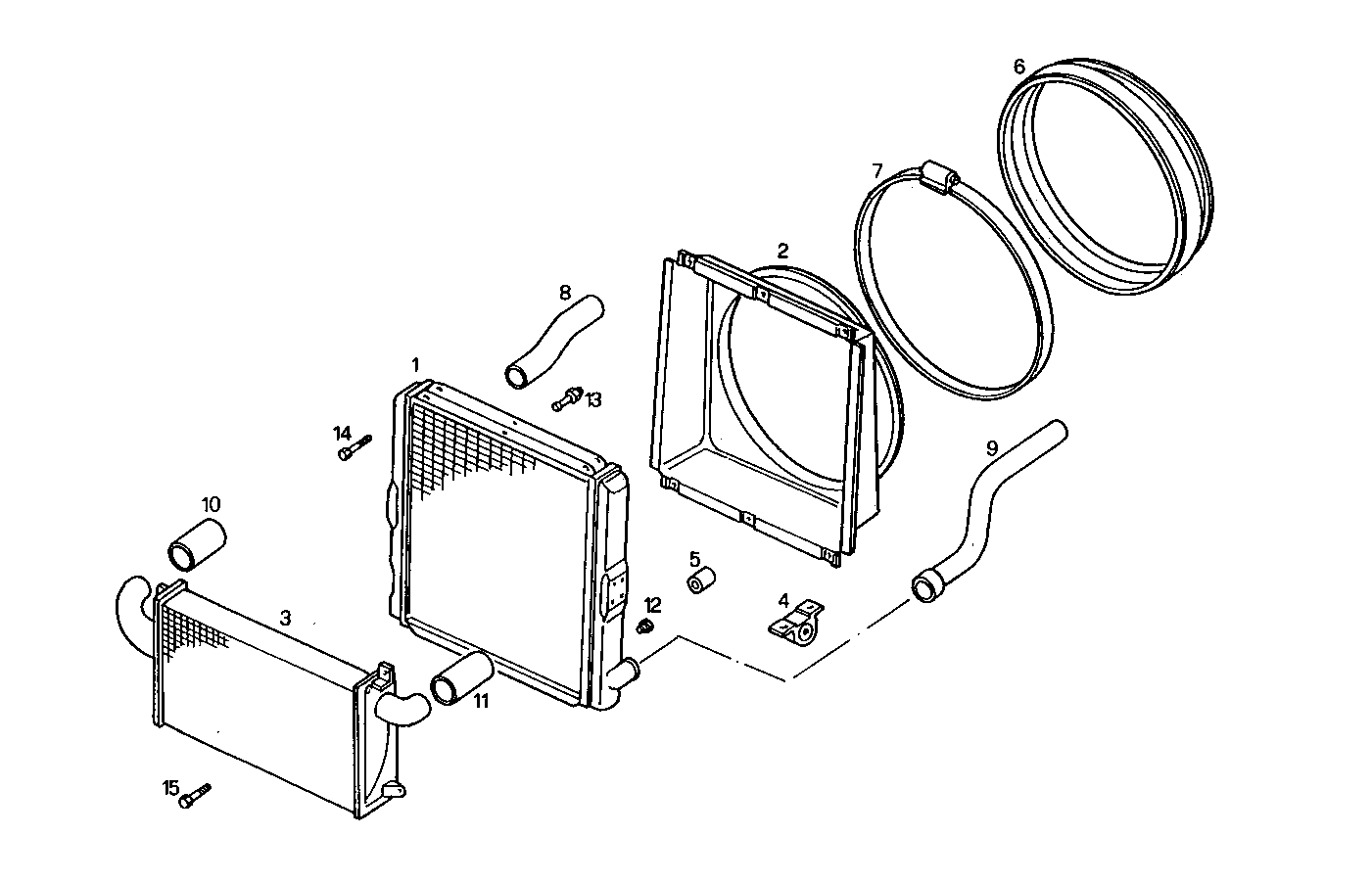

A22000007 RADIATOR FOR SETTING TILL MAX POWER - loose
Item | Part number | Description |
---|---|---|
1 | 98425703 | WATER RADIATOR ASSY BLACKSTONE |
2 | 98425704 | AIR HOOD |
3 | 98425705 | HEAT EXCHANGER |
4 | 98415194 | RUBBER PAD |
5 | 98415197 | RUBBER PAD |
6 | 98466027 | RUBBER GASKET |
7 | 500308383 | CLIP Ø600-650 MM |
8 | 98400047 | WATER HOSE |
9 | 98485459 | WATER HOSE |
10 | 98400049 | RUBBER SLEEVE AIR |
11 | 500300519 | RUBBER SLEEVE AIR |
12 | 93158512 | THREADED PLUG |
13 | 93159689 | BREATHER PLUG M10X1,5 |
14 | 93191084 | CUTTING SCREW |
15 | 93191303 | CUTTING SCREW |
