8360SRC22.00

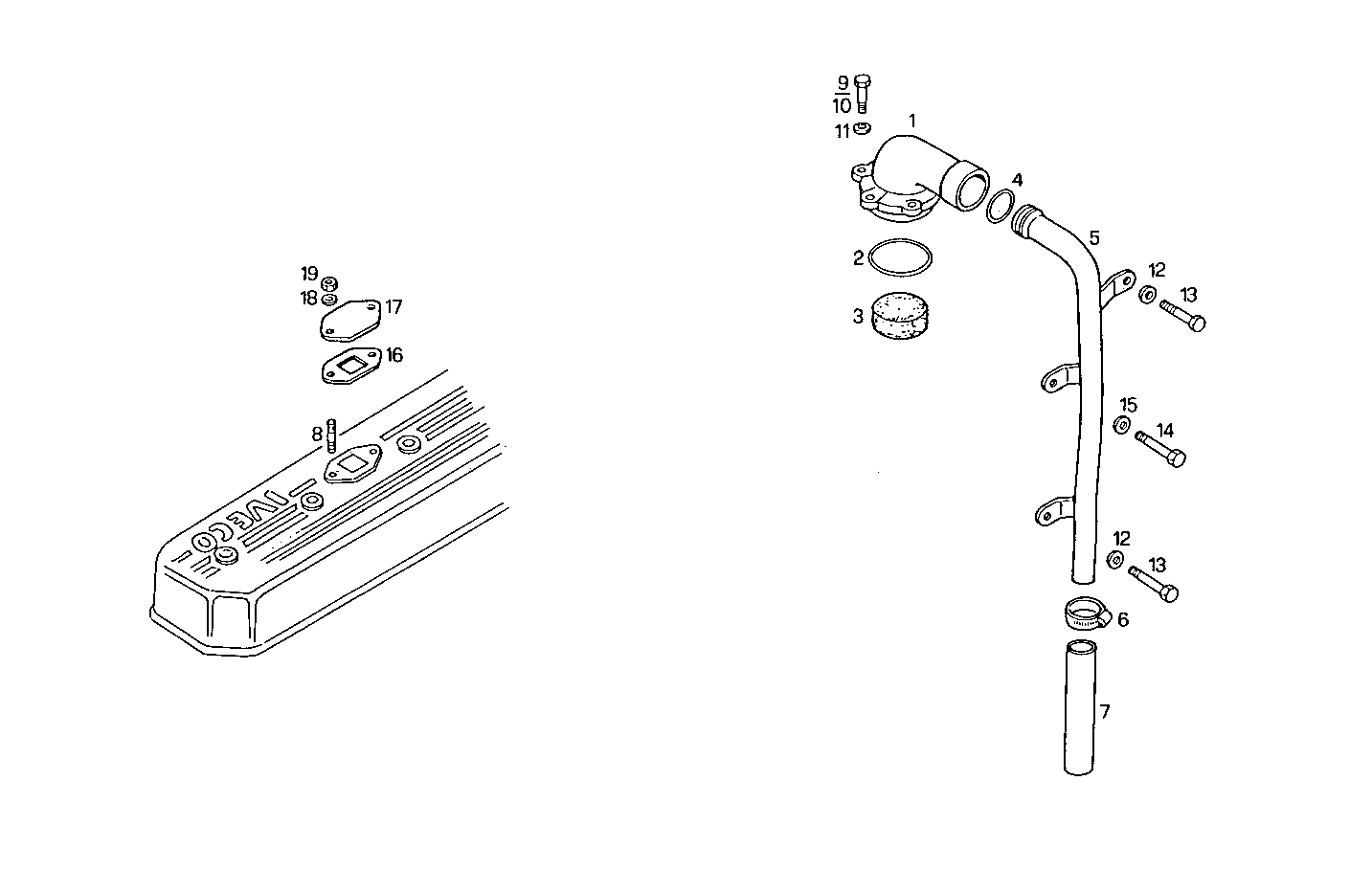

0450.105 ENGINE BREATHERS

Iveco/FPT ENGINE BREATHERS

Item Part number Description
1 98445136 COVER
2 17285481 O-RING Ø75,87 MM SP=2,62 MM
3 98445561 FILTER
4 17288981 O-RING Ø29,74 MM SP=3,53 MM
5 98445587 PIPE
6 17762692 CLIP
7 99442178 RUBBER SLEEVE Ø30 MM L=300 MM
8 16727624 STUD M6X16 MM
9 16603824 SCREW M6X25
10 16604724 HEXAGON BOLT M6X70
11 17094714 WASHER Ø6,4X12 MM
12 17090174 SPRING WASHER Ø10X20 MM
13 10929824 HEXAGON BOLT M10X1,25X25 MM
14 16605424 SCREW M8X16 MM (8.8)
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 4851858 FLAT ENGINE GASKET
17 98464983 COVER
18 17088474 WASHER Ø6X12 MM
19 17037821 HEXAGON NUT M6X1
