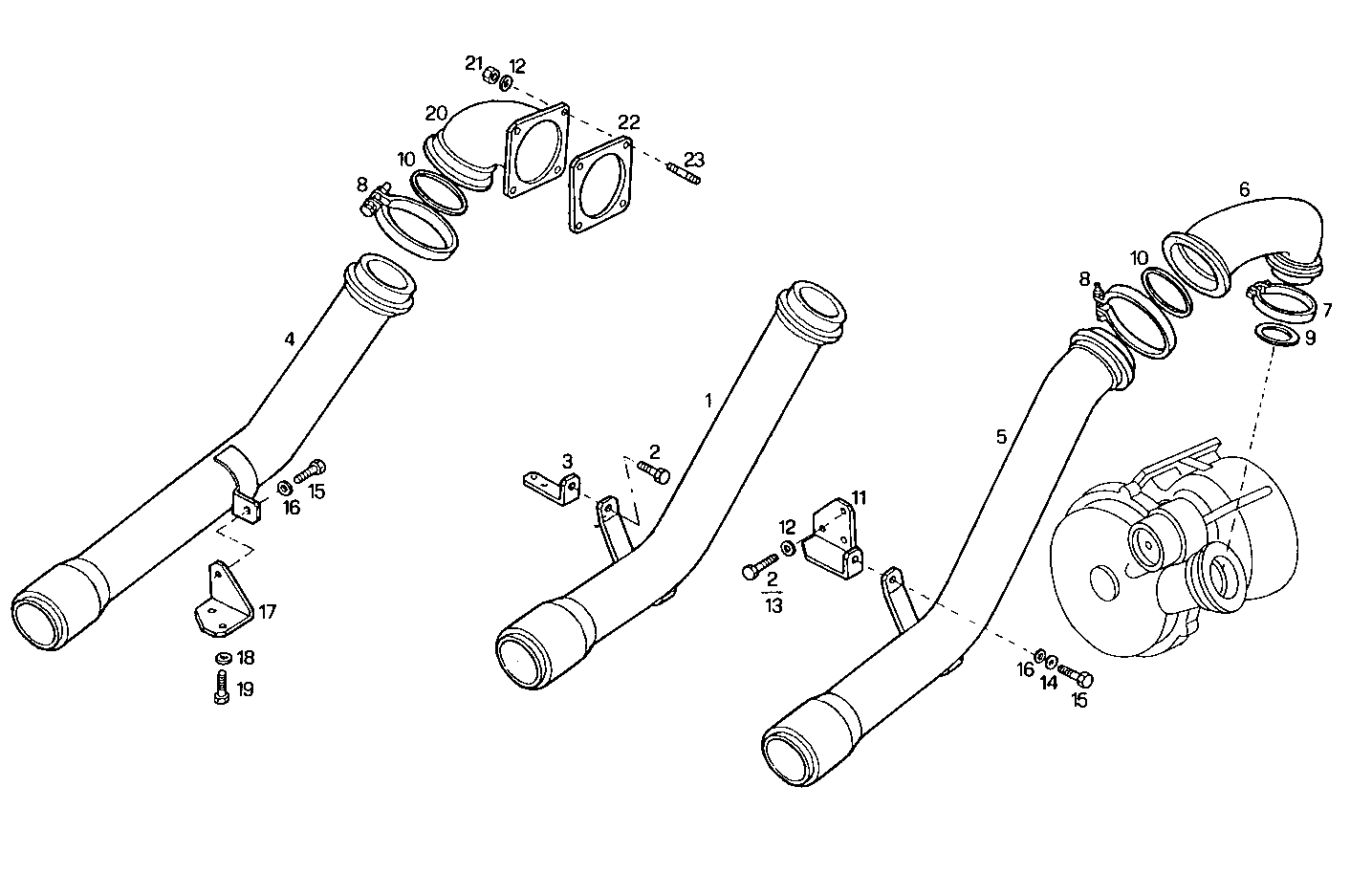

| Item |
Part number |
Description |
|
1 |
99443573 |
AIR PIPE/DUCT [from 280959] |
|
2 |
16605624 |
HEXAGON BOLT M8X25 MM (8.8) |
|
3 |
99443185 |
RETAINER BUNDY [from 280959] |
|
4 |
99443884 |
AIR PIPE/DUCT |
|
5 |
98461425 |
AIR PIPE/DUCT [up to 280958] |
|
6 |
4853259 |
AIR PIPE/DUCT |
|
7 |
4853260 |
CLIP |
|
8 |
4853264 |
CLIP |
|
9 |
17283981 |
O-RING Ø50,4 MM SP=2,6 MM |
|
10 |
17285481 |
O-RING Ø75,87 MM SP=2,62 MM |
|
11 |
4862201 |
RETAINER [up to 280958] |
|
12 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
13 |
16605424 |
SCREW M8X16 MM (8.8) |
|
14 |
12646901 |
WASHER Ø12X28 MM |
|
15 |
15970321 |
HEXAGON BOLT M10X16 MM |
|
16 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
17 |
98411795 |
FASTENING BRACKET |
|
18 |
17090074 |
SPRING WASHER Ø10X20X1,9 MM |
|
19 |
15970521 |
HEXAGON BOLT M10X20 MM |
|
20 |
98411638 |
AIR PIPE/DUCT |
|
21 |
17037931 |
HEXAGON NUT M8X1,25 |
|
22 |
4853268 |
FLAT ENGINE GASKET |
|
23 |
13543524 |
STUD M8X16X25 |
