8360SRC22.00

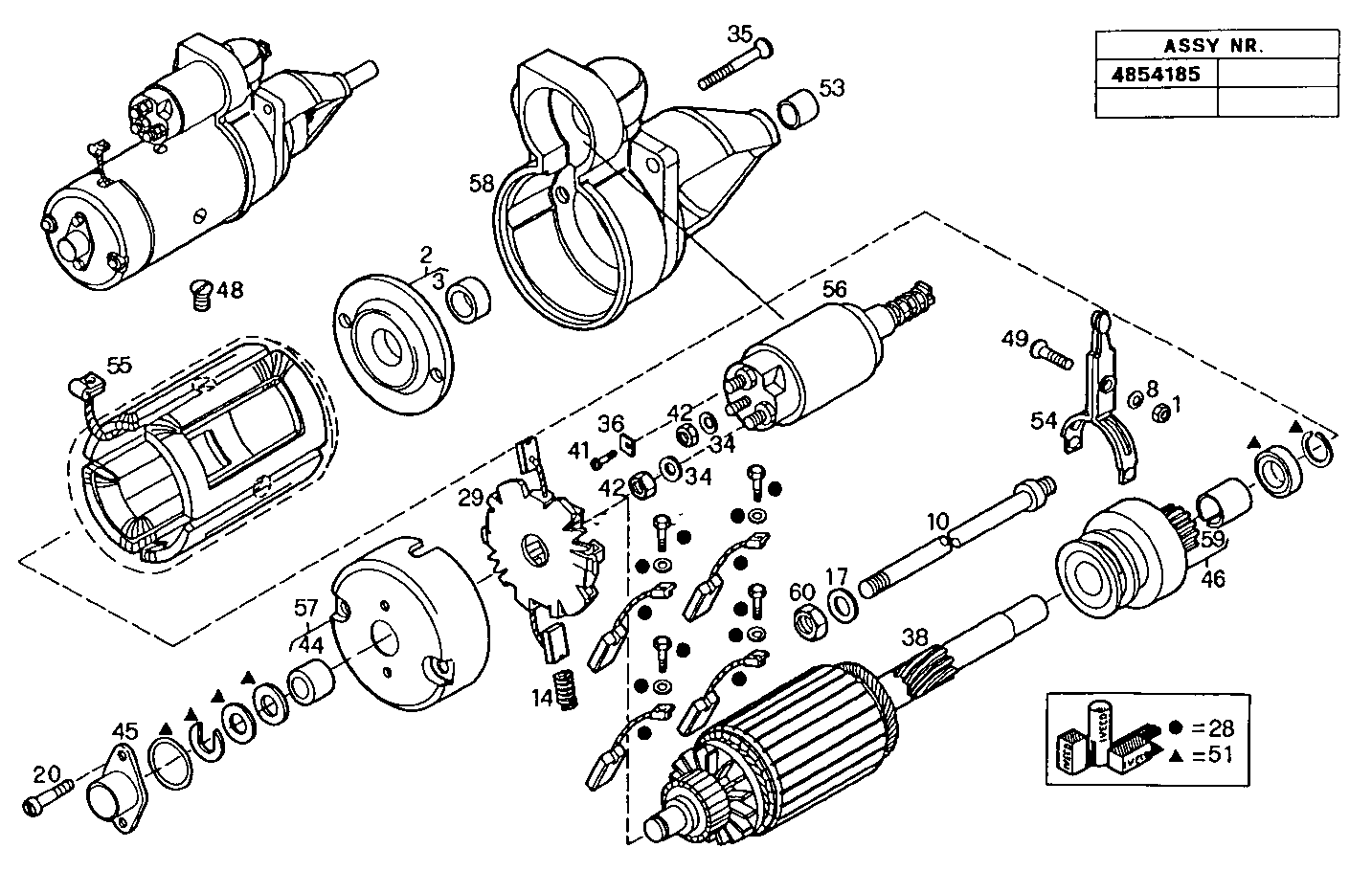

3630.022 STARTER MOTOR (COMPONENTS)
| Item |
Part number |
Description |
|
1 |
2985049 |
NUT |
|
2 |
1308810 |
STARTER SUPPORT ASSY |
|
3 |
1307038 |
BUSH ASSY |
|
8 |
1107283 |
SPRING WASHER Ø8,4X15 MM |
|
10 |
1308813 |
TIE ROD |
|
14 |
93163086 |
SPRING |
|
17 |
2985194 |
WASHER |
|
20 |
1298783 |
SCREW |
|
28 |
1308847 |
STARTER SUPPORT |
|
34 |
1102800 |
SPRING LOCKWASHER Ø10 MM |
|
35 |
93163085 |
HEXAGON BOLT |
|
36 |
2985062 |
STOP PLATE |
|
38 |
8122158 |
STARTER ARMATURE |
|
41 |
1105500 |
CYLIND-HEAD SCREW |
|
42 |
1306937 |
NUT |
|
44 |
79026097 |
BUSH ASSY |
|
45 |
79026098 |
COVER |
|
46 |
93159768 |
STARTER PINION ASSY |
|
48 |
79033663 |
SCREW |
|
49 |
1309196 |
SCREW |
|
51 |
79045355 |
KIT-STARTER |
|
53 |
8190143 |
BUSH ASSY |
|
54 |
7984301 |
CLEVIS |
|
55 |
8190148 |
STARTER WINDING |
|
56 |
93159769 |
STARTER SOLENOID |
|
57 |
1308146 |
COVER ASSY |
|
58 |
93163087 |
STARTER SUPPORT |
|
59 |
79033670 |
BUSH ASSY |
|
60 |
17037821 |
HEXAGON NUT M6X1 |
