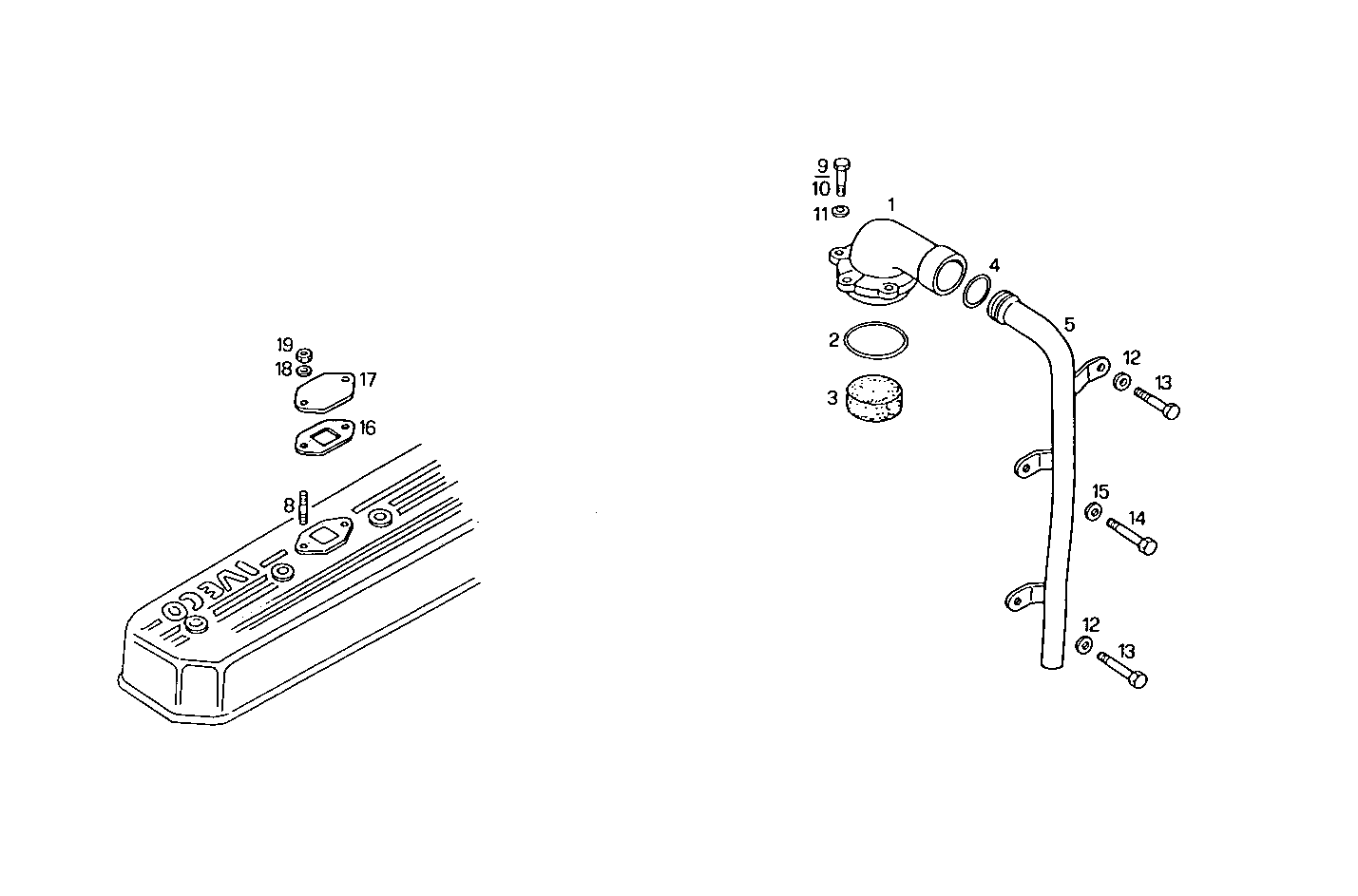

| Item |
Part number |
Description |
|
1 |
98445136 |
COVER |
|
2 |
17285481 |
O-RING Ø75,87 MM SP=2,62 MM |
|
3 |
98445561 |
FILTER |
|
4 |
17288981 |
O-RING Ø29,74 MM SP=3,53 MM |
|
5 |
98445587 |
PIPE |
|
8 |
16727624 |
STUD M6X16 MM |
|
9 |
16603824 |
SCREW M6X25 |
|
10 |
16604724 |
HEXAGON BOLT M6X70 |
|
11 |
17094714 |
WASHER Ø6,4X12 MM |
|
12 |
17090174 |
SPRING WASHER Ø10X20 MM |
|
13 |
10929824 |
HEXAGON BOLT M10X1,25X25 MM |
|
14 |
16605424 |
SCREW M8X16 MM (8.8) |
|
15 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
16 |
4851858 |
FLAT ENGINE GASKET |
|
17 |
98464983 |
COVER |
|
18 |
17088474 |
WASHER Ø6X12 MM |
|
19 |
17037821 |
HEXAGON NUT M6X1 |
