8360SRC22.10

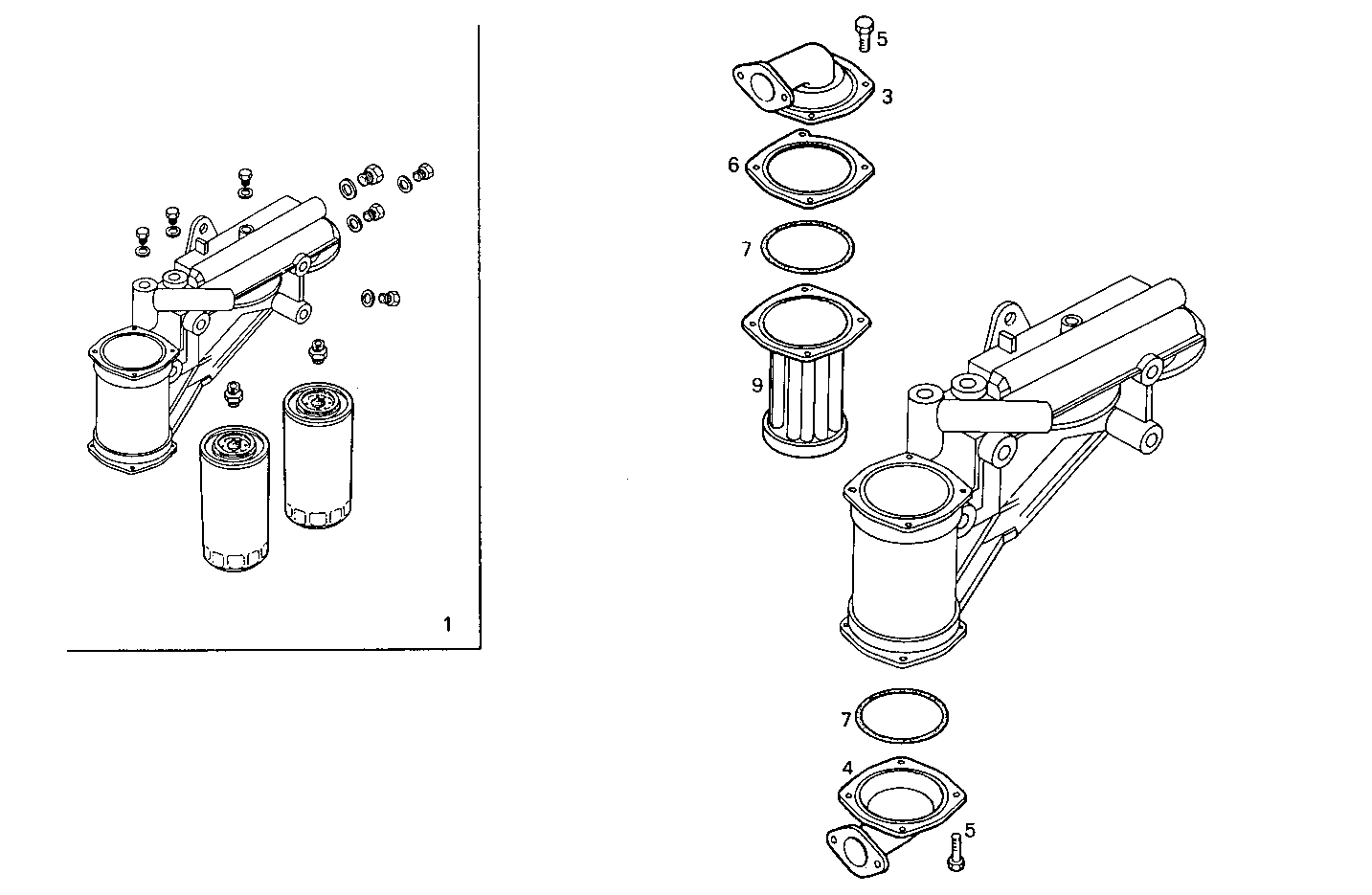

3100.062 OIL - WATER HEAT EXCHANGER
Item | Part number | Description |
---|---|---|
1 | 99431518 | HEAT EXCHANGER ASSY MOTA |
3 | 99431655 | HEAT EXCHANG.COVER TOP |
4 | 99431656 | HEAT EXCHANG.COVER BOTTOM |
5 | 16690724 | CYLIND-HEAD SCREW M8X30 MM |
6 | 99431654 | FLAT ENGINE GASKET |
7 | 99431653 | O-RING Ø106,2 MM SP=3,53 |
9 | 99431652 | OIL COOLER SP=5 MM |
