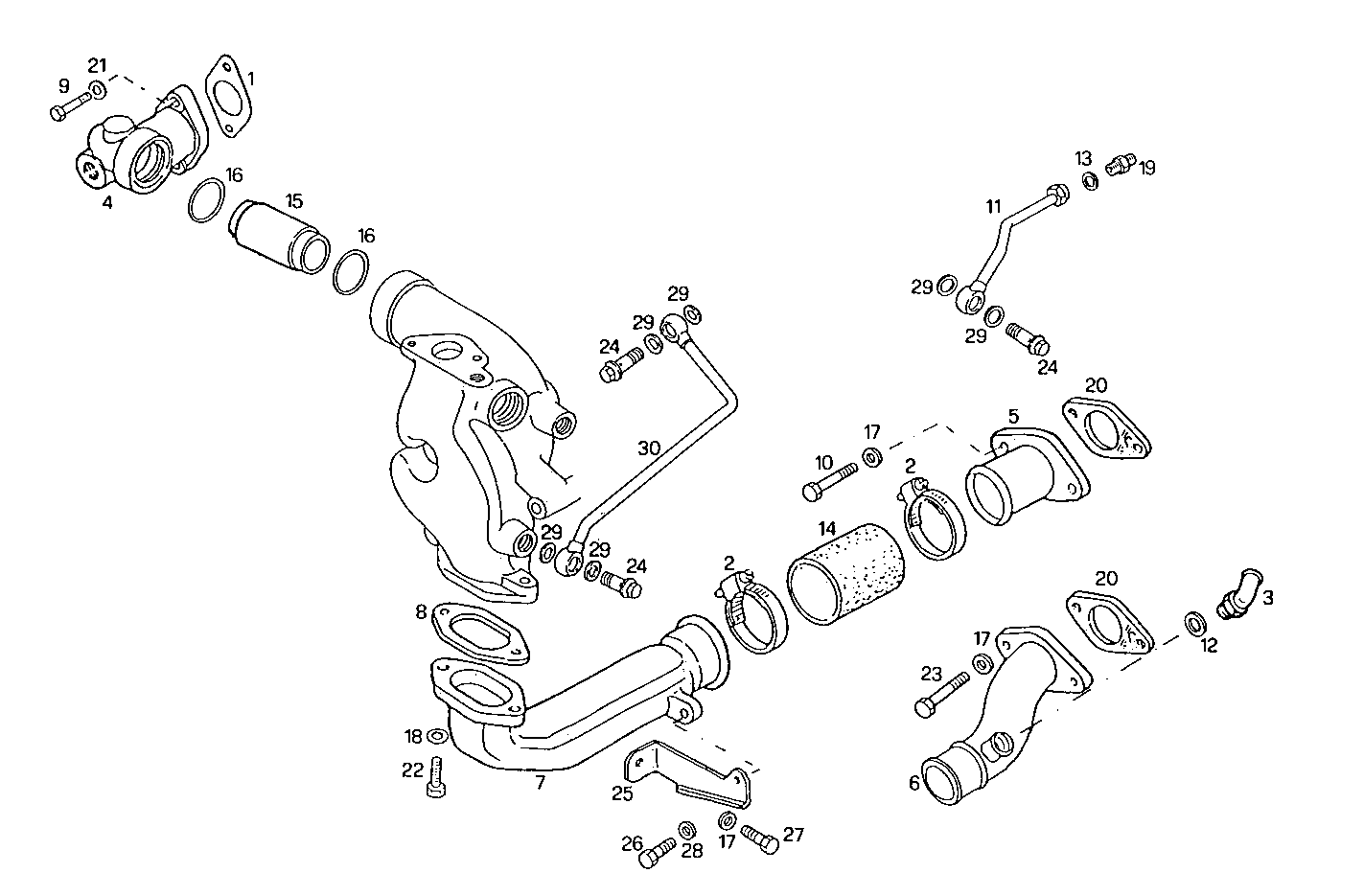

| Item |
Part number |
Description |
|
1 |
4853484 |
FLAT ENGINE GASKET |
|
2 |
17764992 |
CLIP Ø50-70 MM |
|
3 |
99458109 |
PIPE SOCKET ASSY |
|
4 |
4853482 |
WATER PIPE |
|
5 |
4853477 |
WATER PIPE |
|
6 |
97496098 |
WATER PIPE |
|
7 |
4853479 |
WATER PIPE |
|
8 |
4853480 |
FLAT ENGINE GASKET |
|
9 |
10923624 |
SCREW |
|
10 |
16606924 |
SCREW M8X110 |
|
11 |
4853485 |
WATER PIPE |
|
12 |
98474316 |
WASHER Ø16X36 MM SP=1,5 MM |
|
13 |
98474306 |
WASHER Ø12X20 MM SP=1,9 MM |
|
14 |
98421381 |
WATER HOSE |
|
15 |
4853483 |
WATER HOSE |
|
16 |
98465115 |
O-RING |
|
17 |
17089474 |
SPRING WASHER Ø8X16 MM SP=1,4 MM |
|
18 |
17094914 |
WASHER 8x16 |
|
19 |
99443066 |
THREADED UNION ASSY |
|
20 |
98412396 |
GASKET |
|
21 |
17095114 |
WASHER Ø10X21 MM |
|
22 |
16605734 |
HEXAGON BOLT M8X30 MM |
|
23 |
16607024 |
HEXAGON BOLT M8X120 MM |
|
24 |
4864084 |
BANJO BOLT M16X1,5 |
|
25 |
4853481 |
RETAINER |
|
26 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
27 |
16605524 |
HEXAGON BOLT M8X20 MM |
|
28 |
17090274 |
WASHER Ø10X20 MM |
|
29 |
98474309 |
WASHER Ø16X24 MM SP=1,9 MM |
|
30 |
98472147 |
WATER PIPE |
