8360SRC22.10

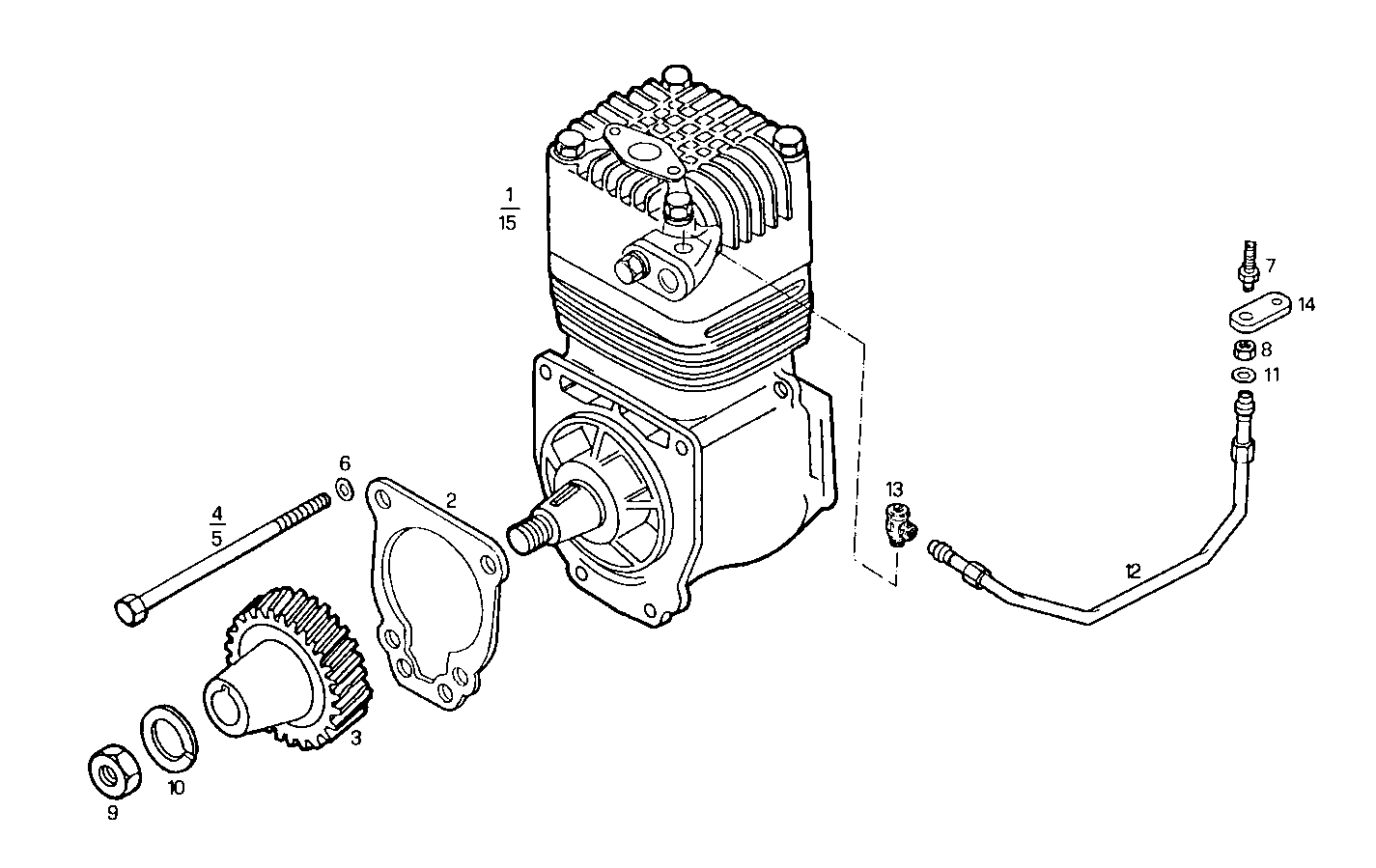

3800.011 AIR COMPRESSOR

Iveco/FPT AIR COMPRESSOR

Item Part number Description
1 99436215 AIR COMPRESSOR ASSY WABCO
2 4864032 FLAT ENGINE GASKET
3 98445187 COMP. DRIVE GEAR
4 15970924 HEXAGON BOLT M10X1,25X35 MM
5 15972024 HEXAGON BOLT M10X1,25X110
6 11190579 SPRING WASHER Ø10X20 MM SP=2,3
7 16502214 THREADED UNION
8 16508611 NUT M12X1,5
9 16980731 HEXAGON NUT
10 17798774 SPRING WASHER Ø18 MM
11 17710374 WASHER Ø12 MM
12 98478065 PIPE
13 42001354 SWIVEL COUPLING M12X1,5
14 98461797 CONNECTING PLATE
15 4859189 AIR COMPRESSOR ASSY WABCO [up to 417852]
