8360SRC22.20

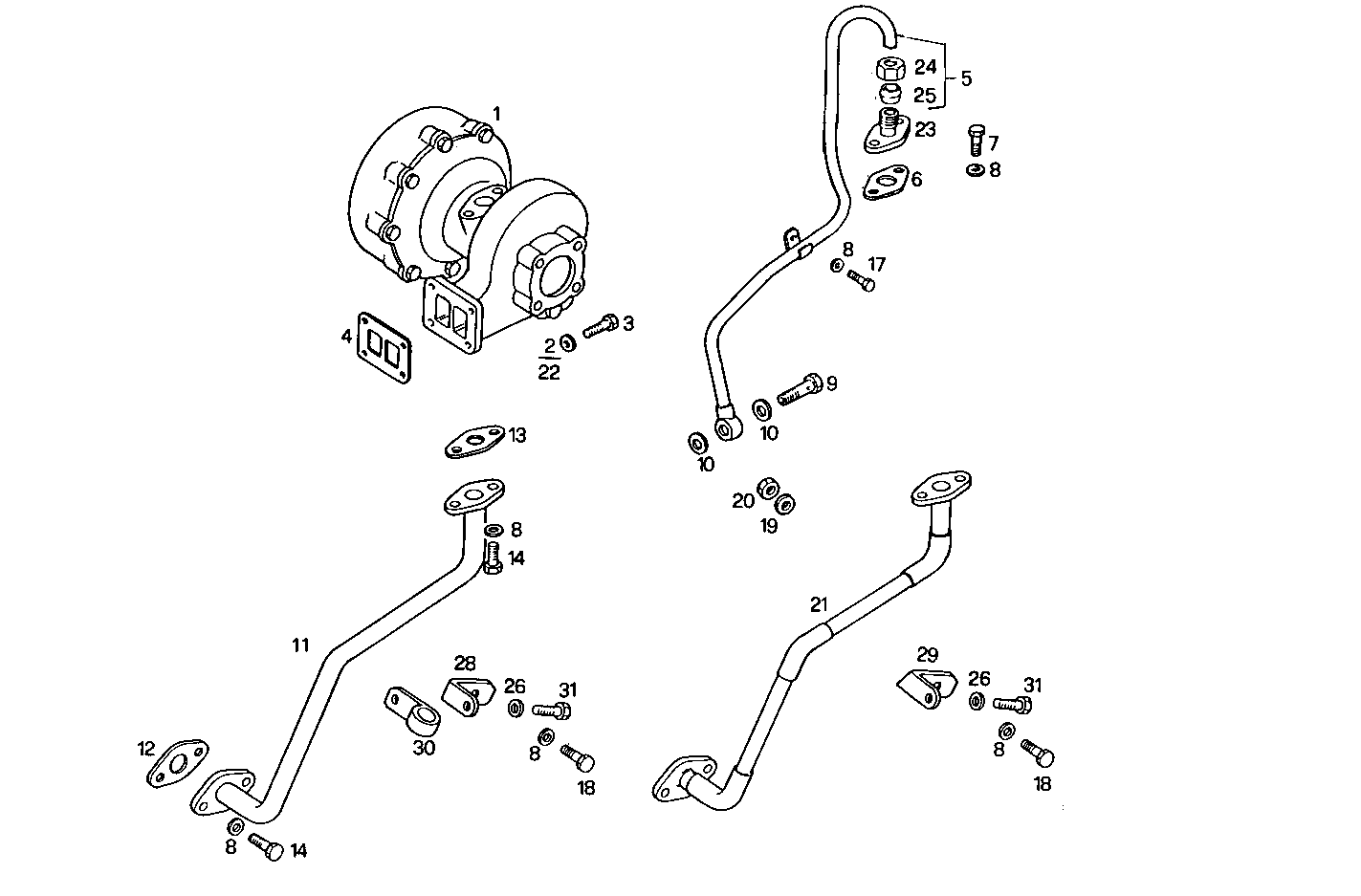

2400.105 TURBOCHARGER

Iveco/FPT TURBOCHARGER

Item Part number Description
1 98499754 TURBOCHARGER ASSY KKK
2 98491312 HEXAGON BOLT
3 17095114 WASHER Ø10X21 MM
4 4853250 FLAT ENGINE GASKET
5 99476422 OIL LINE ASSY
6 98415922 FLAT ENGINE GASKET
7 16605824 HEXAGON BOLT M8X35 MM
8 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
9 4864084 BANJO BOLT M16X1,5
10 98474309 WASHER Ø16X24 MM SP=1,9 MM
11 99440503 OIL LINE [up to 324405]
12 98411814 FLAT ENGINE GASKET
13 98412509 FLAT ENGINE GASKET
14 16605624 HEXAGON BOLT M8X25 MM (8.8)
17 16605424 SCREW M8X16 MM (8.8)
18 16603624 HEXAGON BOLT M6X16 MM (8.8)
19 17088474 WASHER Ø6X12 MM
20 17037821 HEXAGON NUT M6X1
21 99483728 OIL LINE M10X1,25X60 MM [from 324406]
22 98480687 SCREW M10X1,25X33 MM
23 4764795 THREADED UNION
24 16506911 NUT M18X1,5
25 16507611 WASHER Ø12 MM
26 17090174 SPRING WASHER Ø10X20 MM
28 98498145 FASTENING BRACKET [up to 324405]
29 99483730 FASTENING BRACKET BUNDY [from 324406]
30 17311004 FASTENING BRACKET Ø20 MM
31 15970524 HEXAGON BOLT M10X1,25X20
