8360SRC22.20

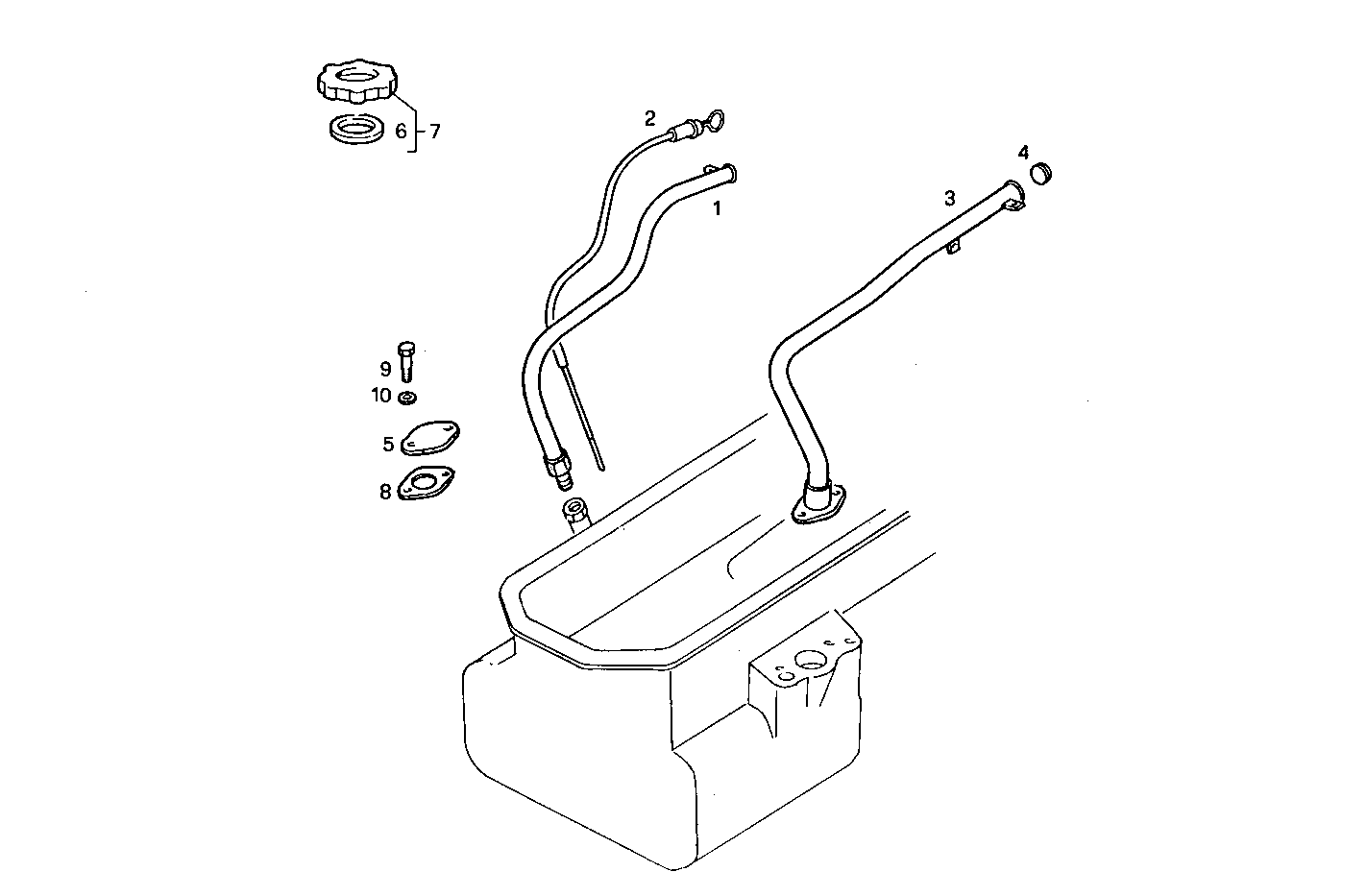

2710.066 OIL DIPSTICK
Item | Part number | Description |
---|---|---|
1 | 99482194 | OIL LEVEL TUBE Ø15 MM |
2 | 99481373 | OIL DIPSTICK ASSY |
3 | 99482216 | OIL FILLER PIPE Ø15 MM |
4 | 98429552 | OIL FILLER PLUG |
5 | 99441578 | FLANGE ASSY |
6 | 98418978 | GASKET |
7 | 98418980 | OIL FILLER PLUG ASSY |
8 | 98468899 | FLAT ENGINE GASKET |
9 | 16605734 | HEXAGON BOLT M8X30 MM |
10 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
