8360SRC22.20

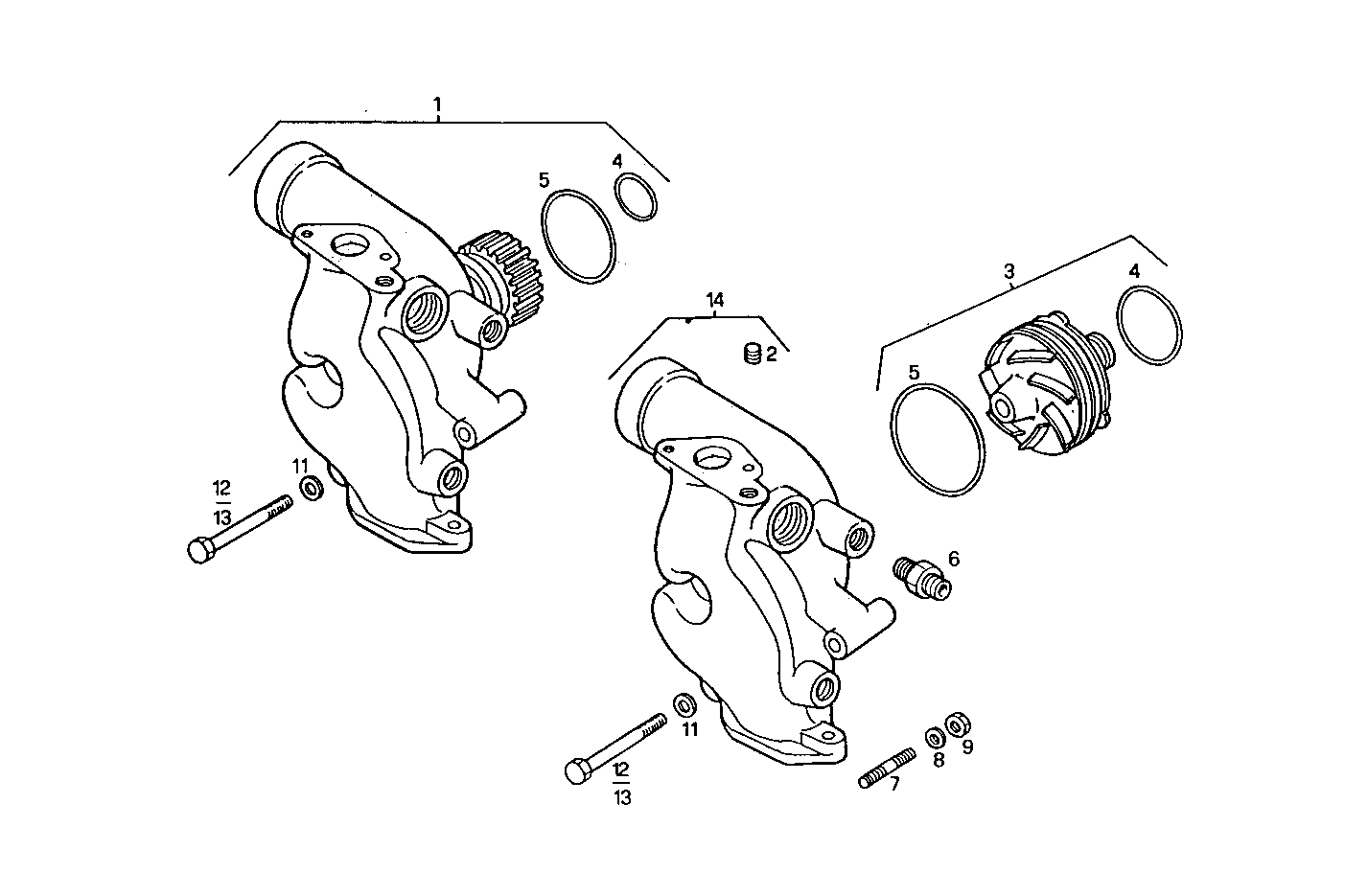

3200.070 WATER PUMP
Item | Part number | Description |
---|---|---|
1 | 500301665 | WATER PUMP ASSY |
2 | 10269501 | LOCK PLUG M14 |
3 | 42532082 | WATER PUMP ASSY |
4 | 17290081 | O-RING Ø56,74 MM SP=3,53 MM |
5 | 98465114 | O-RING |
6 | 4853469 | WATER PIPE |
7 | 16729324 | STUD M8X12X20 MM |
8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
9 | 17037931 | HEXAGON NUT M8X1,25 |
11 | 17090174 | SPRING WASHER Ø10X20 MM |
12 | 15972821 | HEXAGON BOLT M10X150 MM |
13 | 15971624 | HEXAGON BOLT M10X1,25X90 MM |
14 | 42532083 | WATER PUMP HOUSING ASSY |
