8360SRC22.20

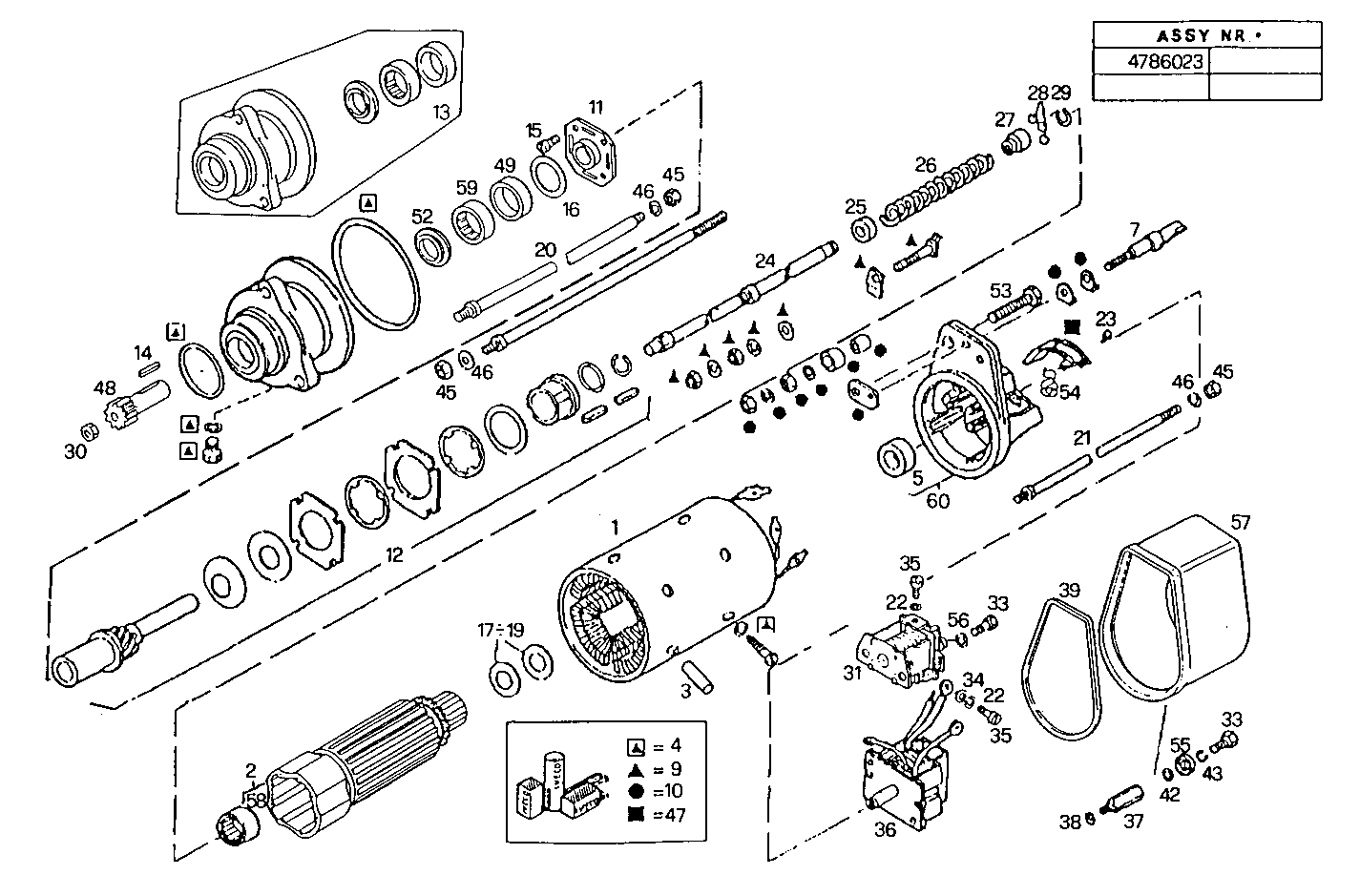

3630.034 STARTER MOTOR (COMPONENTS)

Iveco/FPT STARTER MOTOR (COMPONENTS)

Item Part number Description
1 8122371 STARTER WINDING
2 8122372 STARTER ARMATURE ASSY
3 79052252 PIN
4 79052274 KIT-STARTER
5 79052278 BUSH
7 1290021 SCREW
9 1306445 KIT-STARTER
10 79052281 KIT-STARTER
11 9920338 FLANGE
12 79052241 SHAFT ASSY
13 93191515 STARTER SUPPORT ASSY
14 1117970 KEY
15 79052237 SCREW
16 79052239 RING
17 79052250 SHIM 0,30 MM
18 1289919 SHIM 0,50 MM
19 1289920 WASHER SP=0,2 MM
20 79052254 TIE ROD
21 42485206 TIE ROD
22 17494634 SPRING WASHER Ø5,1X9,2 MM
23 79052258 CUTTING SCREW
24 79052240 STUD ASSY
25 79052244 RING
26 79052245 SPRING
27 79052246 RING SP=0,5 MM
28 79052247 BALL
29 9920367 CIRCLIP Ø125 MM SP=4 MM
30 79052233 NUT
31 79052269 STARTER SOLENOID
33 79052267 SCREW
34 9920401 WASHER
35 79028449 SCREW
36 79052266 STARTER SOLENOID
37 79052263 PIN
38 9920379 WASHER
39 79052256 WASHER SP=0,5 MM
41 14305721 SCREW
42 1289929 GASKET
43 79052265 BUSH
45 15896221 HEXAGON NUT M6X1
46 1124654 WASHER
47 79052257 KIT-STARTER
48 93191516 STARTER PINION
49 79052271 BUSH
52 79052272 GASKET
53 9920668 SCREW Ø125 MM SP=4 MM
54 1290139 SPRING
55 1102797 SPRING LOCKWASHER Ø6,1X11,8 MM
56 10516673 SPRING WASHER Ø8,1X14,8 MM
57 79076024 COVER
58 1905092 ENGINE BEARINGS
59 1905095 ENGINE BEARINGS
60 79052255 STARTER SUPPORT ASSY
