8360SRC22.20

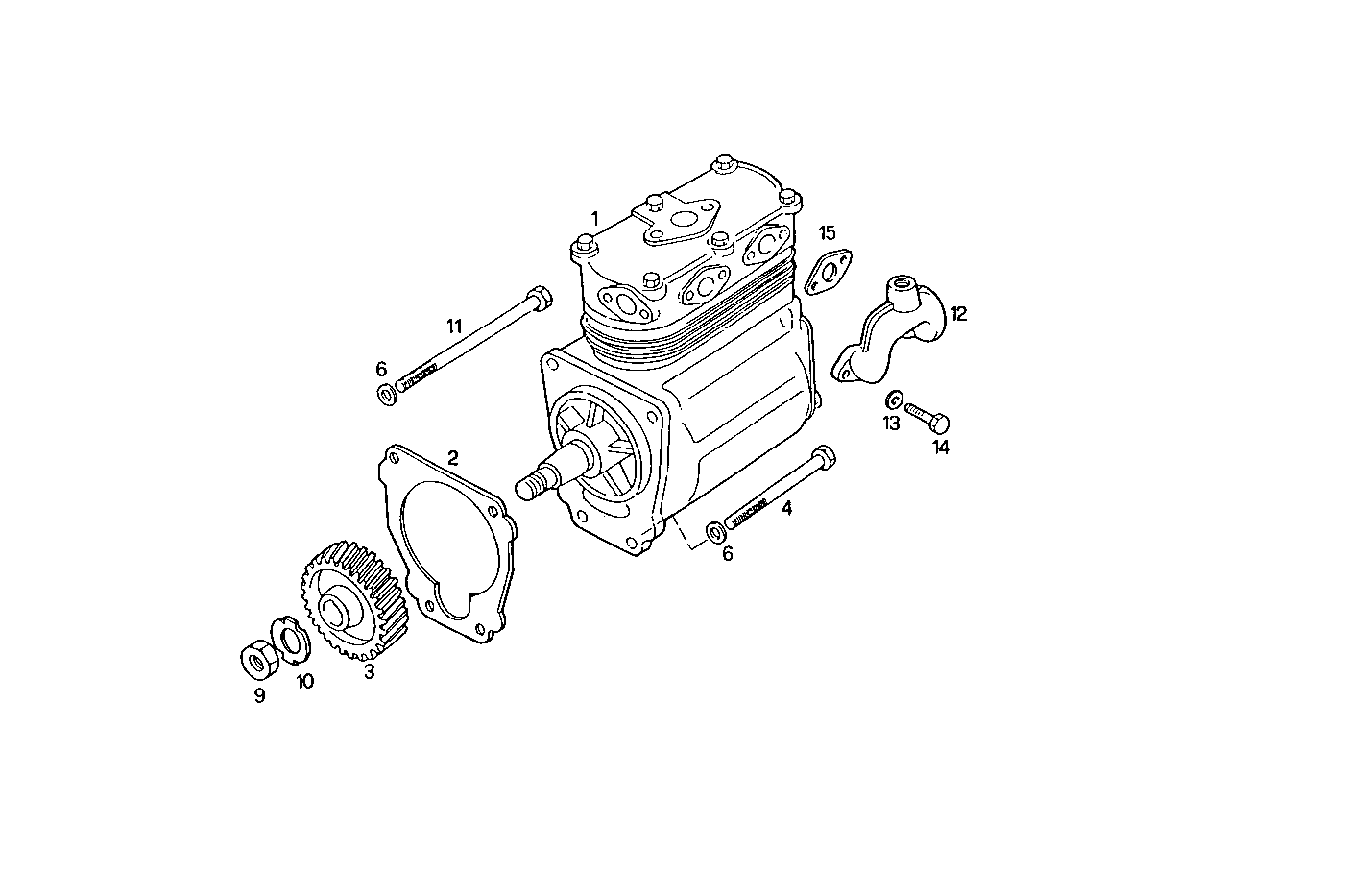

3800.014 AIR COMPRESSOR
| Item | Part number | Description |
|---|---|---|
| 1 | 4860565 | AIR COMPRESSOR ASSY WABCO |
| 2 | 4864032 | FLAT ENGINE GASKET |
| 3 | 98445187 | COMP. DRIVE GEAR |
| 4 | 15970924 | HEXAGON BOLT M10X1,25X35 MM |
| 6 | 11190579 | SPRING WASHER Ø10X20 MM SP=2,3 |
| 9 | 16980731 | HEXAGON NUT |
| 10 | 17798774 | SPRING WASHER Ø18 MM |
| 11 | 4649239 | SCREW |
| 12 | 4717885 | CONNECTING PIPE |
| 13 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 14 | 16605624 | HEXAGON BOLT M8X25 MM (8.8) |
| 15 | 4863497 | FLAT ENGINE GASKET |
