8360SRC22.20

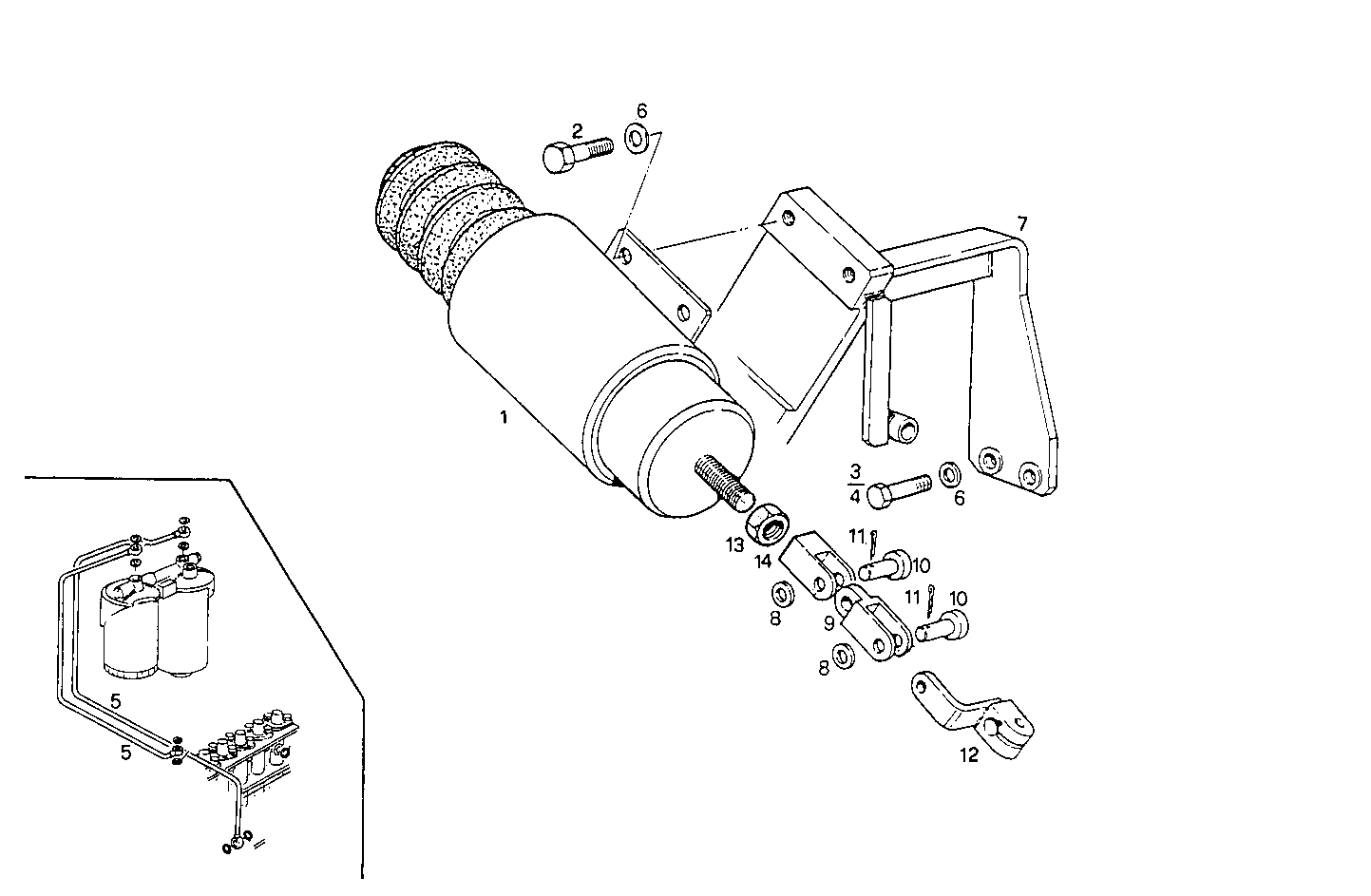

A38420041 STOP SOLENOID - ENERGIZE TO STOP - 24V

Iveco/FPT STOP SOLENOID - ENERGIZE TO STOP - 24V

Item Part number Description
1 8017618 SOLENOID ASSY
2 16043624 SCREW M8X25
3 16689624 HEXAGON BOLT M6X40 MM (8.8)
4 16603424 SCREW M6X10
5 8016444 FUEL LINE [from 07-94]
6 17088474 WASHER Ø6X12 MM
7 8006296 SUPPORT
8 17094504 WASHER Ø5,3X10 MM
9 8108833 CLEVIS
10 17718411 PIN Ø5 MM
11 16852501 SPLIT PIN Ø1,6X12 MM
12 8110573 LEVER
13 17037821 HEXAGON NUT M6X1
14 8109159 CLEVIS M6X40
