8360SRC46.10A007

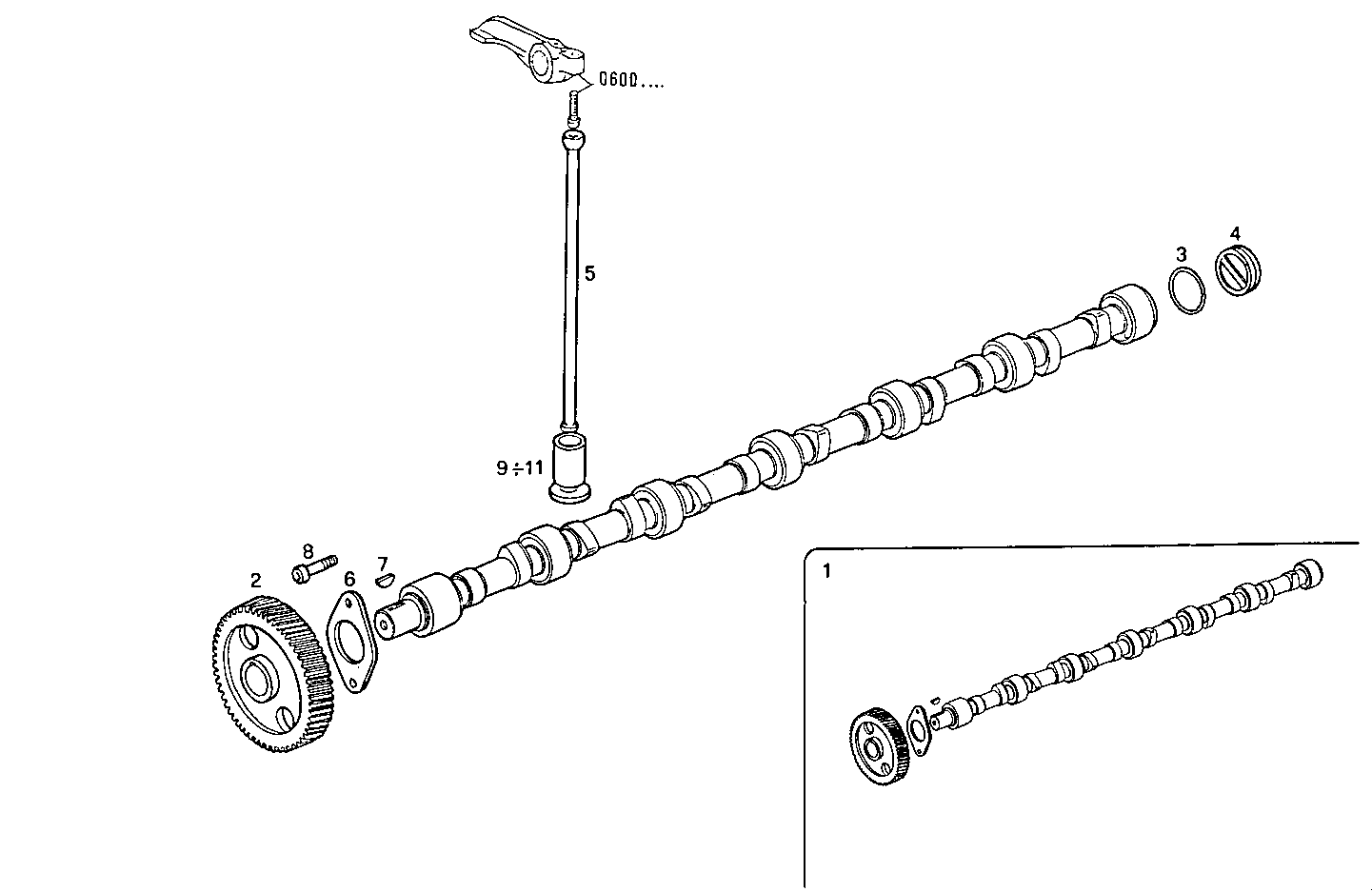

1250.060 TIMING PARTS
Item | Part number | Description |
---|---|---|
1 | 98446758 | CAMSHAFT ASSY |
2 | 98445185 | TIMING INTERM.GEA |
3 | 17284181 | O-RING Ø53,64 MM SP=2,62 MM |
4 | 4852794 | COVER |
5 | 98469645 | PUSHROD |
6 | 98455043 | PLATE |
7 | 10206020 | KEY Ø11 MM |
8 | 14815924 | CYLIND-HEAD SCREW M10X16 MM |
9 | 61320983 | VALVE TAPPET STD. |
10 | 61320985 | VALVE TAPPET +0,5 MM |
11 | 61320986 | VALVE TAPPET +1,0 MM |
