8360SRC46.10A007

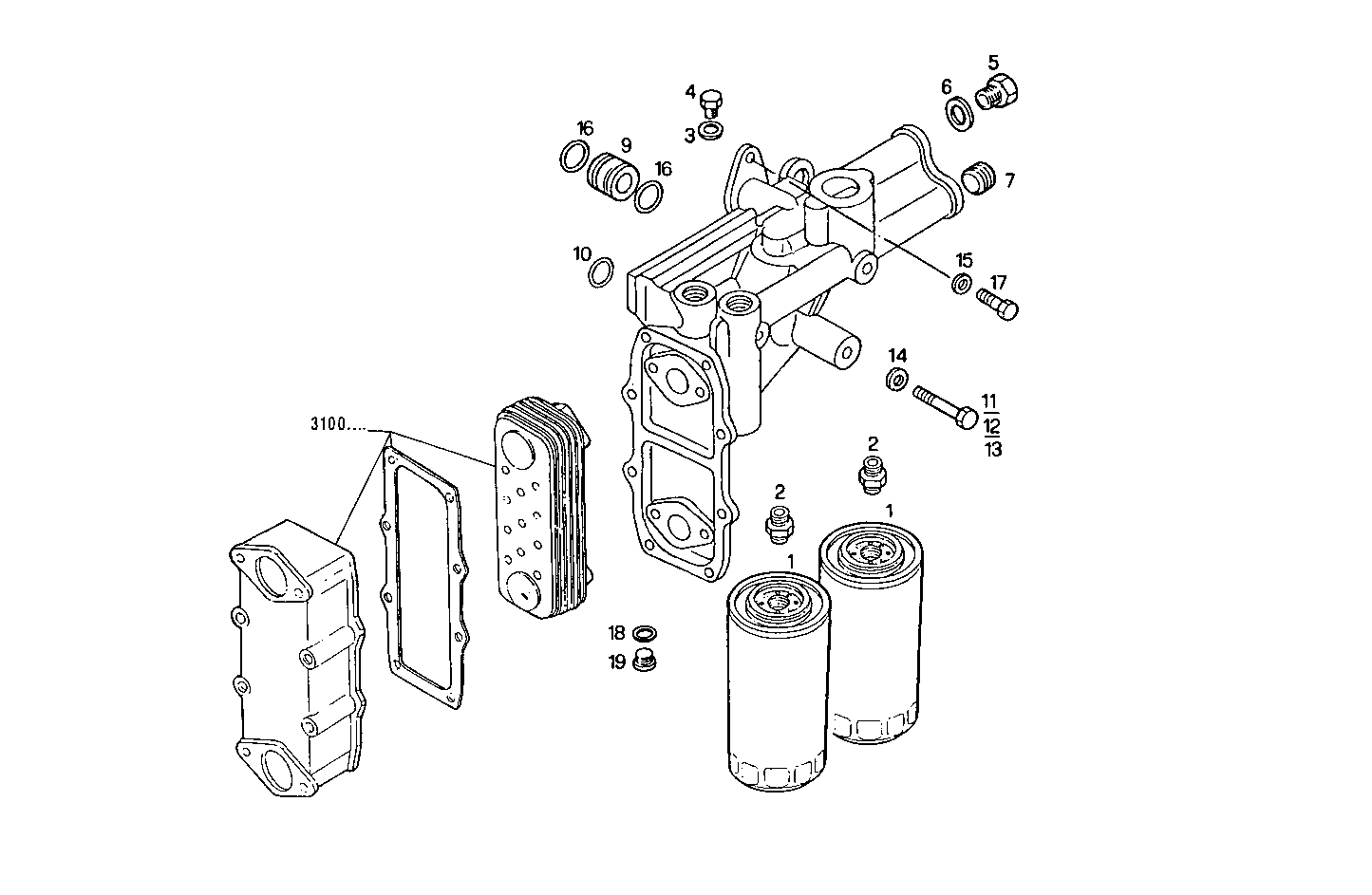

3020.056 OIL FILTERS

Iveco/FPT OIL FILTERS

Item Part number Description
1 1907584 OIL FILTER CARTRIDGE
2 4741301 THREADED UNION ASSY
3 98474309 WASHER Ø16X24 MM SP=1,9 MM
4 16994011 LOCK PLUG M24X1,5
5 98485928 PLUG
6 17281781 O-RING Ø15,5 MM SP=2,6 MM
7 99486012 LOCK PLUG M24X1,5
9 4853307 CENTERING BUSH
10 14458081 O-RING SP=2,62 MM
11 15541124 SCREW
12 15541724 SCREW
14 17091074 WASHER Ø12X24X2,8 MM
15 17089474 SPRING WASHER Ø8X16 MM SP=1,4 MM
16 17278981 O-RING Ø25,12 MM SP=1,78 MM
17 16603624 HEXAGON BOLT M6X16 MM (8.8)
18 99469378 WASHER Ø22X30 MM
19 16993411 THREADED PLUG M22X1,5
