8360SRC46.10A007

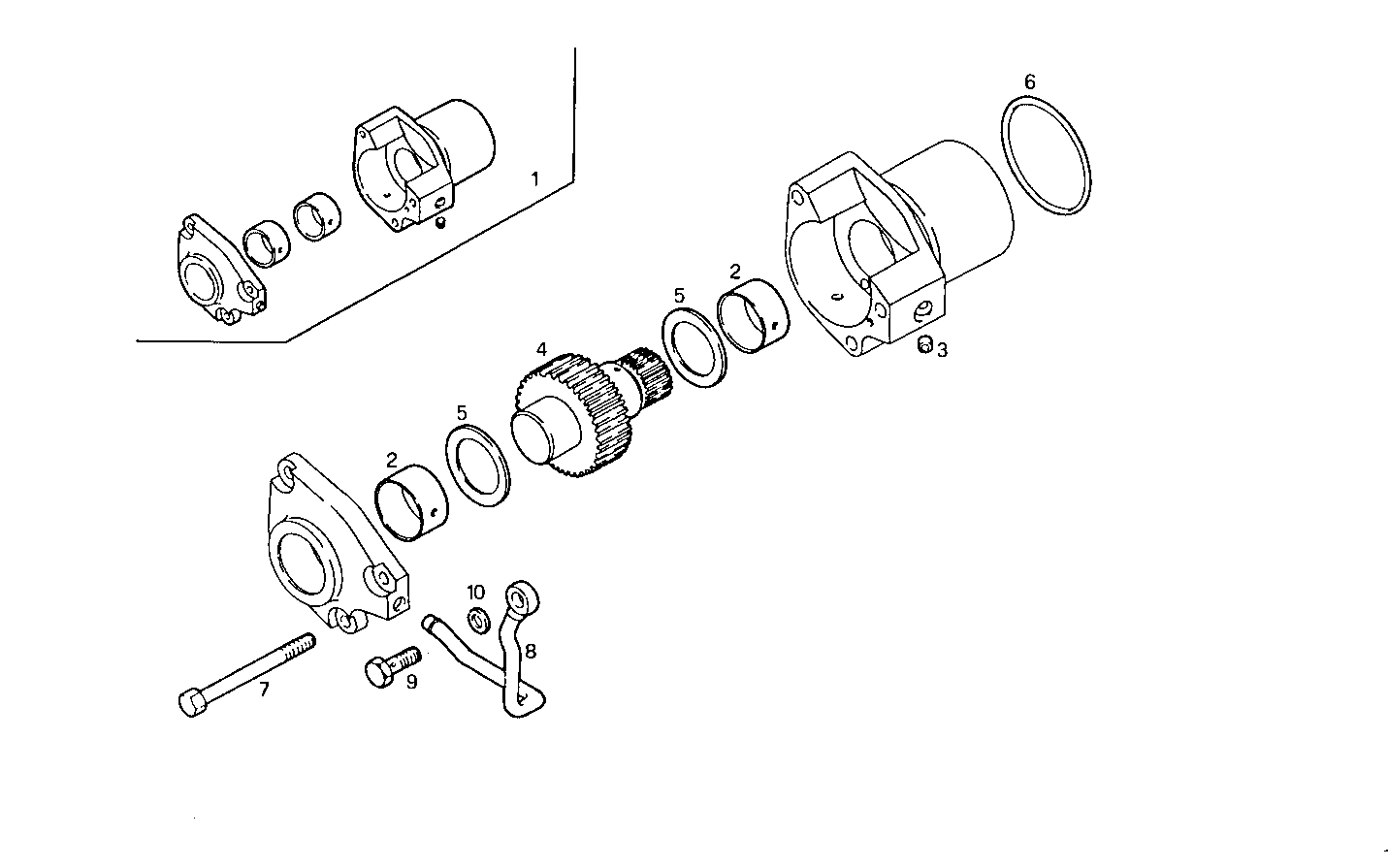

3500.020 POWER TAKE OFF
| Item | Part number | Description |
|---|---|---|
| 1 | 4853897 | SUPPORT ASSY |
| 2 | 4853904 | BUSH |
| 3 | 16987501 | LOCK PLUG Ø7 MM |
| 4 | 98446827 | SHAFT |
| 5 | 4853901 | SUPPORT RING |
| 6 | 17285081 | O-RING Ø67,94 MM SP=2,62 MM |
| 7 | 16321824 | HEXAGON BOLT M8X65 MM |
| 8 | 4853452 | HYDRAULIC LINE |
| 9 | 99443063 | SCREW CONNECTOR ASSY |
| 10 | 98474305 | WASHER Ø10X17 MM SP=2,3 |
