8360SRC46.10A007

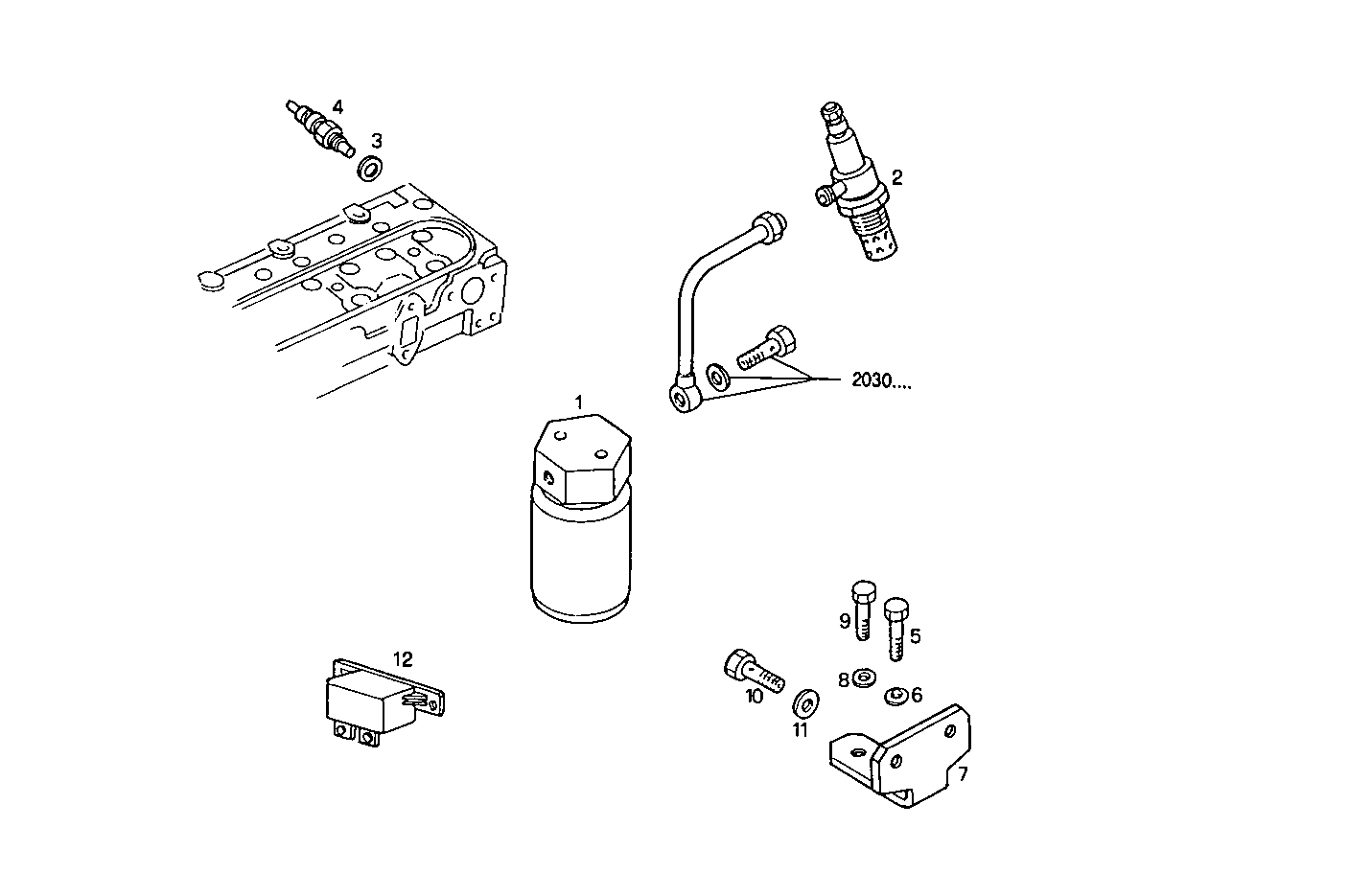

3650.019 THERMO-STARTER
| Item | Part number | Description |
|---|---|---|
| 1 | 98494898 | ELECT.V.VE.PREHEAT |
| 2 | 99450394 | THERMO-STARTER |
| 3 | 4857250 | TRANSMITTER |
| 4 | 16508160 | WASHER Ø14X18 MM |
| 5 | 16601924 | HEXAGON BOLT M5X10 MM |
| 6 | 17798074 | WASHER Ø5X9,2X1 MM |
| 7 | 98418835 | RETAINER |
| 8 | 17798174 | SPRING WASHER Ø6,1X11,8 MM |
| 9 | 16603424 | SCREW M6X10 |
| 10 | 16605424 | SCREW M8X16 MM (8.8) |
| 11 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
| 12 | 99484737 | ELECTR.CONTR.UNIT 24V PREHEATER CONTROL |
