8360SRC46.10A007

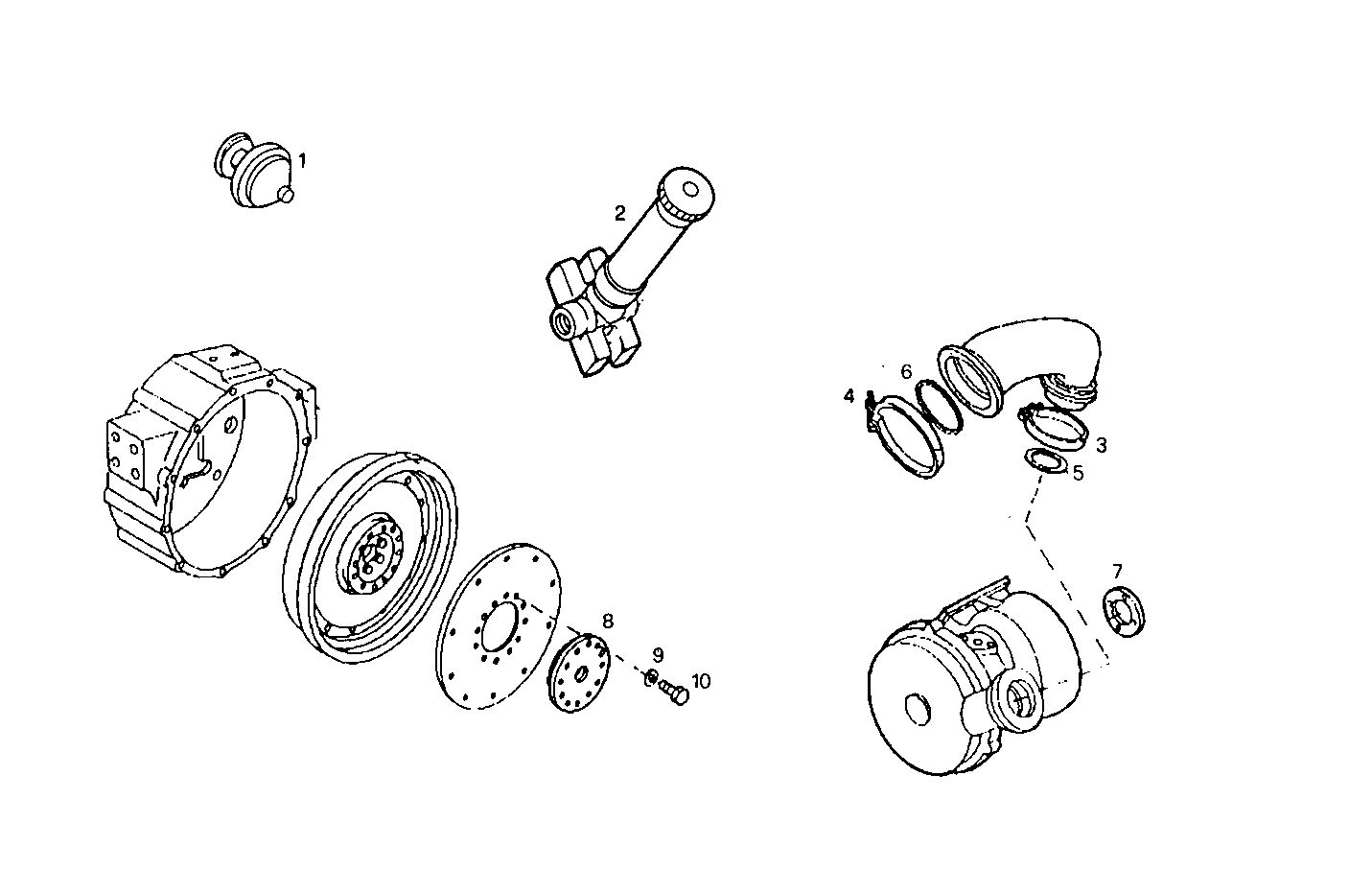

8600.047 ACCESSORIES
| Item | Part number | Description |
|---|---|---|
| 1 | 8108409 | THERMOSTAT |
| 2 | 4797319 | HAND PUMP ASSY |
| 3 | 4853260 | CLIP |
| 4 | 4853264 | CLIP |
| 5 | 17284281 | O-RING Ø55,24X2,62 MM |
| 6 | 17285581 | O-RING Ø82,22x2,62 mm |
| 7 | 4734747 | GASKET |
| 8 | 98484427 | FLANGE |
| 9 | 17091074 | WASHER Ø12X24X2,8 MM |
| 10 | 15540421 | SCREW M12X1,25X30 |
