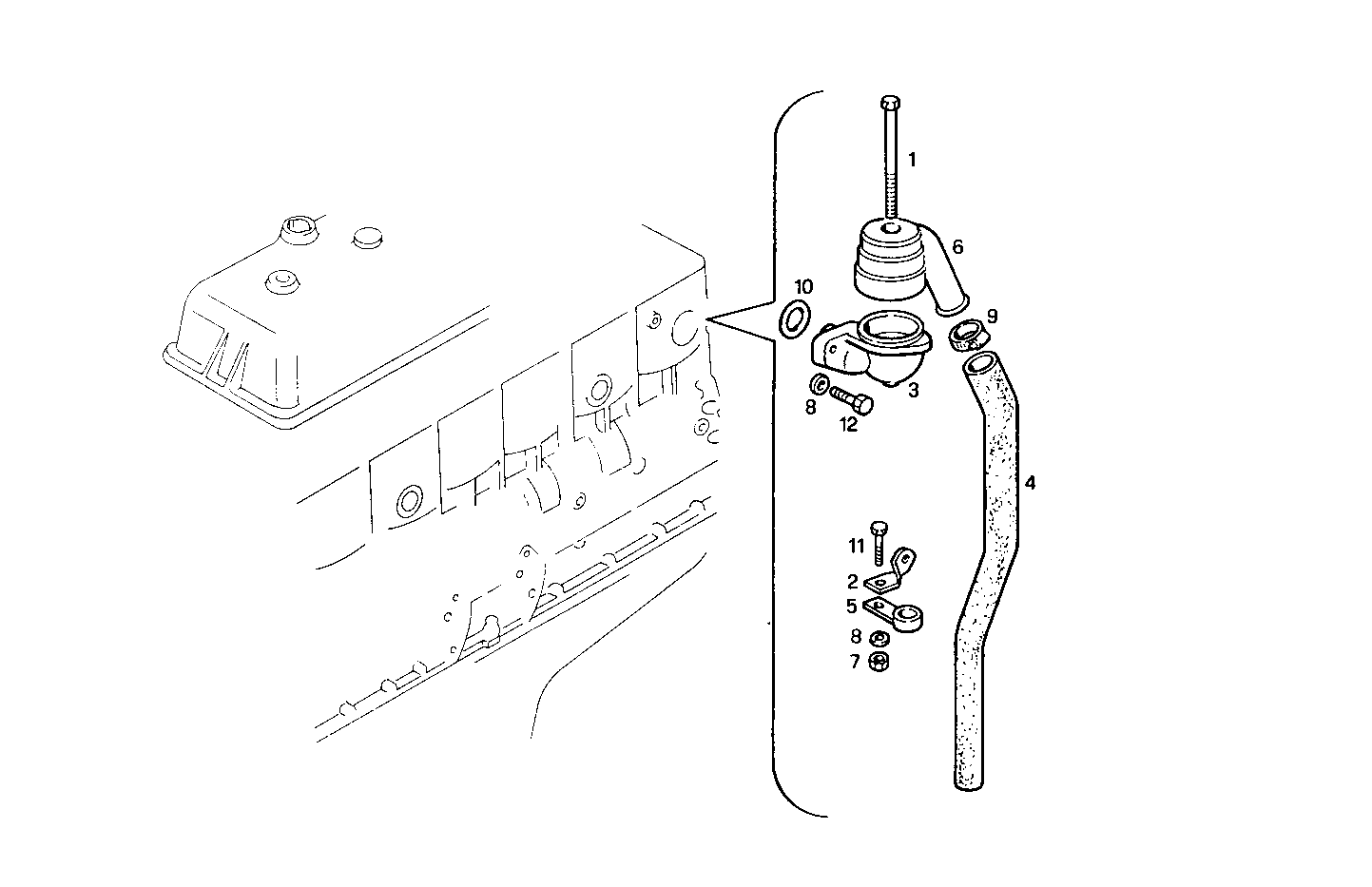

0450.029 ENGINE BREATHERS
Item | Part number | Description |
---|---|---|
1 | 14304921 | CYLIND-HEAD SCREW M6X130 MM |
2 | 4795309 | RETAINER |
3 | 4795303 | BREATHER |
4 | 98432573 | AIR HOSE |
5 | 4628548 | CLIP |
6 | 4795304 | BREATHER |
7 | 17037931 | HEXAGON NUT M8X1,25 |
8 | 17089474 | SPRING WASHER Ø8X16 MM SP=1,4 MM |
9 | 17764792 | HOSE CLIP Ø32-50 MM |
10 | 14463981 | O-RING SP=3,53 MM |
11 | 16043221 | HEXAGON BOLT M8X16 MM |
12 | 16625734 | HEXAGON BOLT M8X35 |
