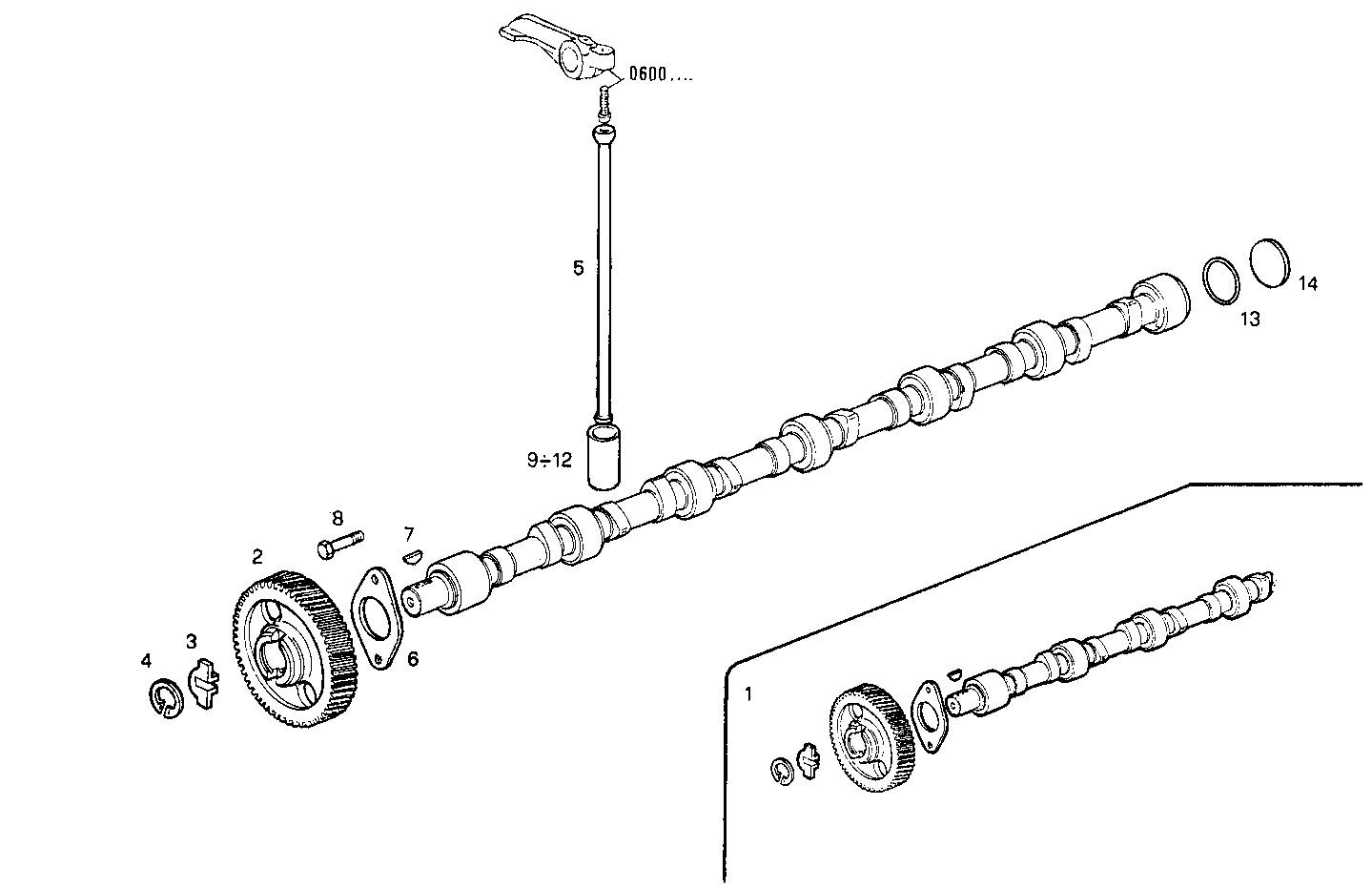

1250.038 TIMING PARTS
Item | Part number | Description |
---|---|---|
1 | 4799155 | CAMSHAFT ASSY [up to 01-92] |
2 | 4708079 | TIMING INTERM.GEA |
3 | 4711597 | CHOCK |
4 | 11058876 | RING Ø32,1 MM |
5 | 8828869 | PUSHROD |
6 | 8828576 | FLANGE |
7 | 10206010 | KEY Ø11 MM |
8 | 14233024 | LOCKING SCREW M10X1,25X16 MM |
9 | 4753580 | VALVE TAPPET +0,0 MM |
10 | 4756502 | VALVE TAPPET +0,3 MM |
11 | 4731532 | VALVE TAPPET +0,4 MM |
12 | 4756503 | VALVE TAPPET +0,5 MM |
13 | 14459281 | O-RING |
14 | 4699521 | COVER |
