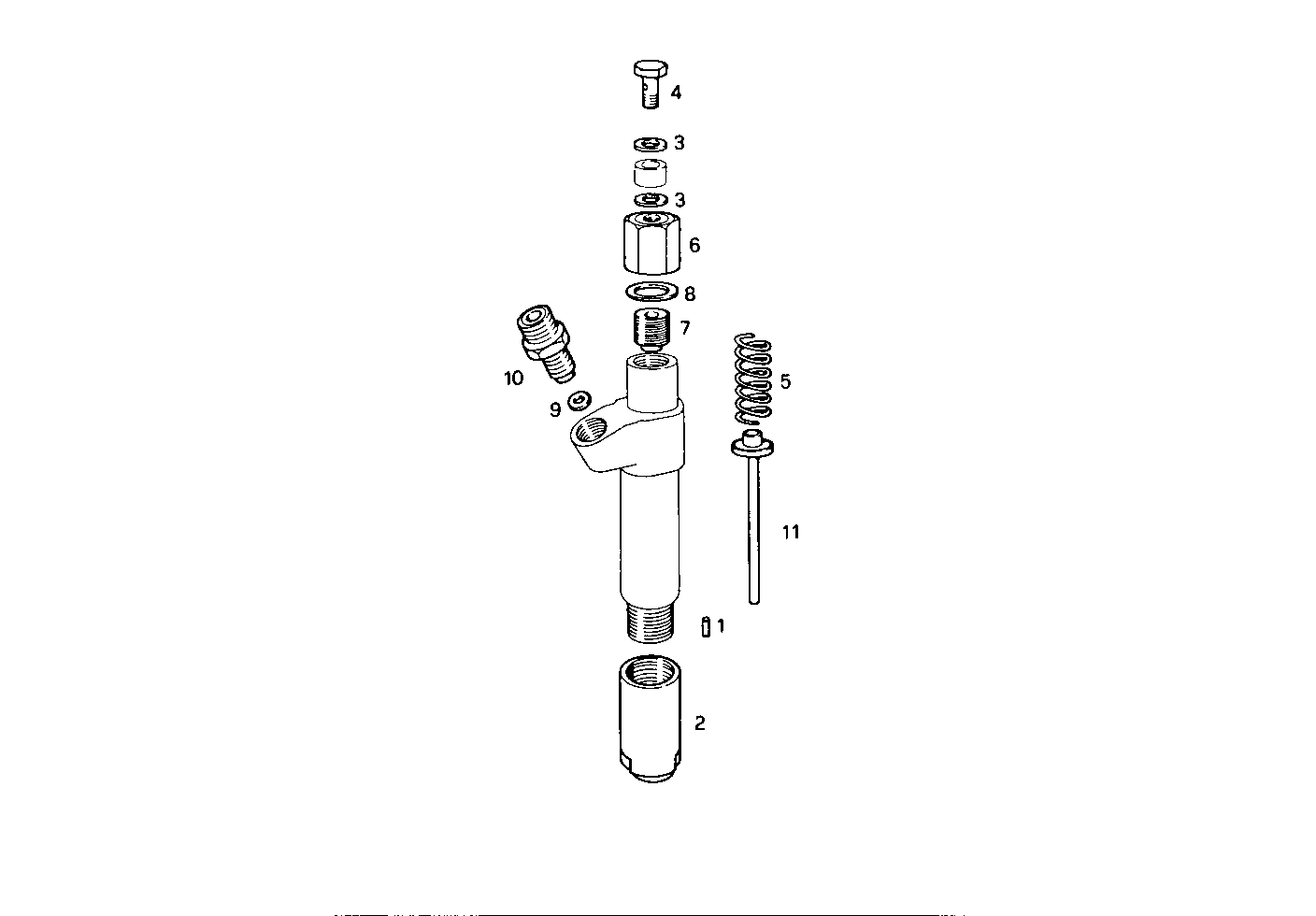

1430.012 NOZZLE HOLDER (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 9931247 | PARALLEL PIN |
| 2 | 9928384 | FASTENING RING |
| 3 | 772052 | GASKET |
| 4 | 9928392 | SCREW CONNECTOR |
| 5 | 9930019 | SPRING |
| 6 | 9930022 | NUT |
| 7 | 9930024 | ADJUSTING SCREW |
| 8 | 9930025 | WASHER |
| 9 | 9930027 | GASKET |
| 10 | 9933620 | THREADED UNION |
| 11 | 9933621 | ROD |
