8361i000.00

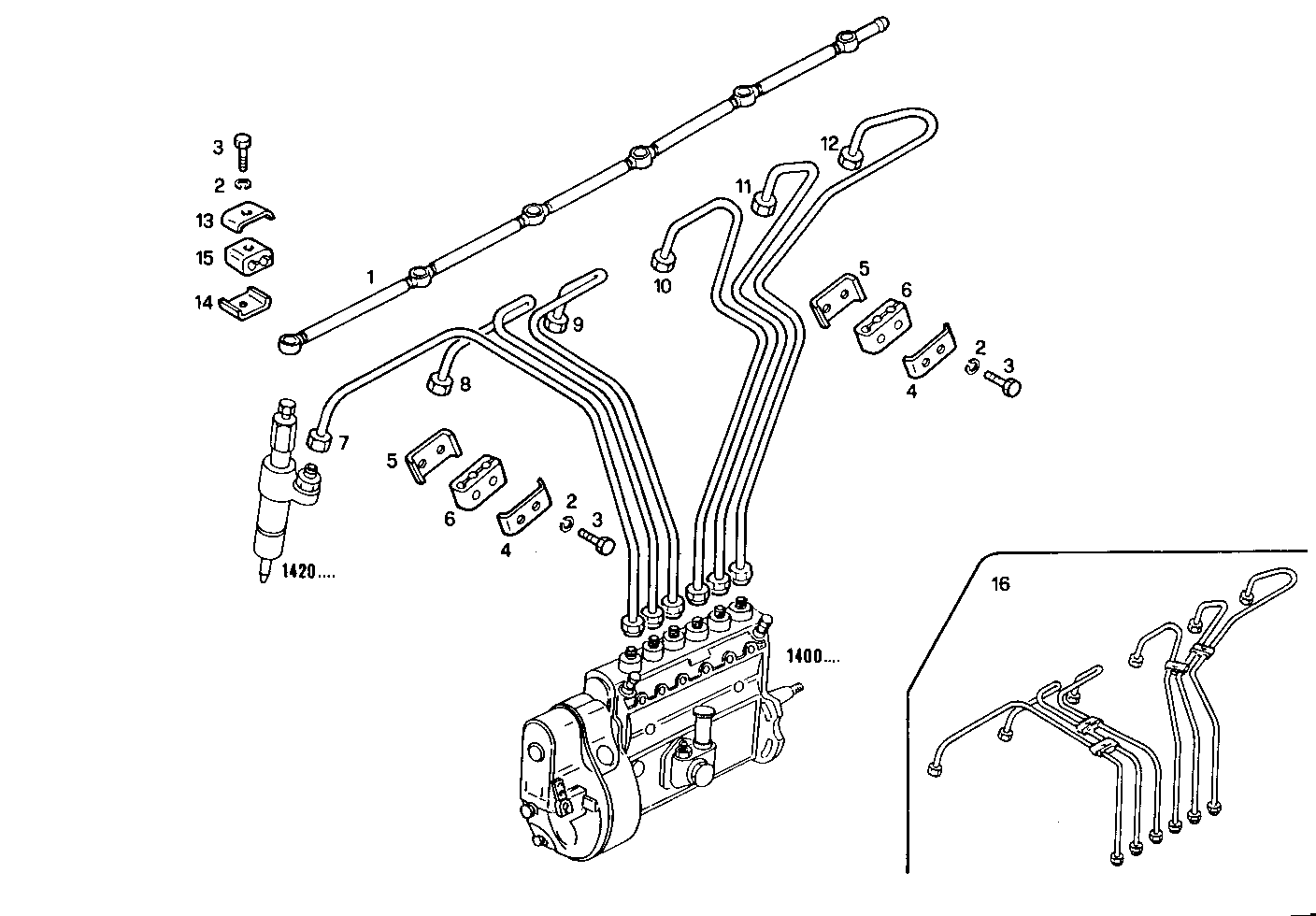

2020.011 INJECTION PIPES
| Item | Part number | Description |
|---|---|---|
| 1 | 4756418 | FUEL LINE |
| 2 | 17494631 | SPRING WASHER Ø5 MM |
| 3 | 16602224 | HEXAGON BOLT M5X20 MM |
| 4 | 4641876 | CLIP |
| 5 | 4641875 | CLIP |
| 6 | 4543282 | CHOCK |
| 7 | 4729925 | INJECTION LINE |
| 8 | 4729926 | INJECTION LINE |
| 9 | 4729927 | INJECTION LINE |
| 10 | 4729928 | INJECTION LINE |
| 11 | 4729929 | INJECTION LINE |
| 12 | 4729930 | INJECTION LINE |
| 13 | 4641873 | RETAINER BOTTOM |
| 14 | 4641874 | RETAINER TOP |
| 15 | 4592280 | DOWEL |
| 16 | 4821563 | INJECTION LINE SET |
