8361i001.00

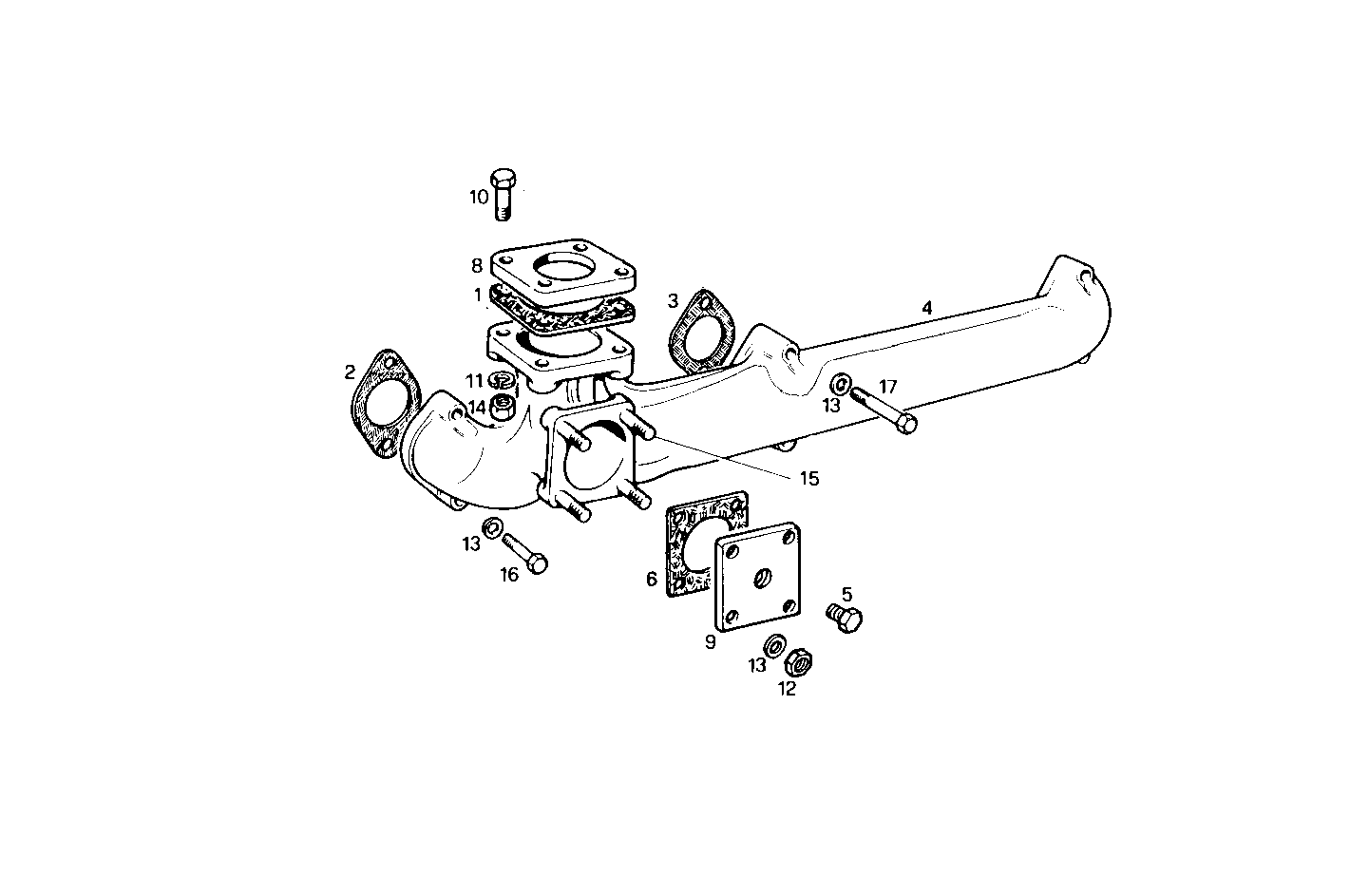

0760.035 EXHAUST MANIFOLD
| Item | Part number | Description |
|---|---|---|
| 1 | 8009904 | GASKET |
| 2 | 4852843 | EXH. MANIFOLD GKT |
| 3 | 4852838 | EXH. MANIFOLD GKT |
| 4 | 4732359 | EXHAUST MANIFOLD |
| 5 | 4817522 | PLUG |
| 6 | 539120 | GASKET |
| 7 | 15972030 | HEXAGON BOLT M10X110 MM |
| 8 | 4930680 | FLANGE |
| 9 | 8822536 | COVER |
| 10 | 11343821 | HEXAGON BOLT M10X1,25X50 MM |
| 11 | 17090274 | WASHER Ø10X20 MM |
| 12 | 12164740 | HEXAGON NUT M10X1,25 |
| 13 | 17095014 | WASHER Ø10X18 MM |
| 14 | 17038221 | HEXAGON NUT M10 |
| 15 | 13449824 | STUD M10X1,25X15 MM |
| 16 | 15971330 | HEXAGON BOLT M10X75 MM |
