8361i001.00

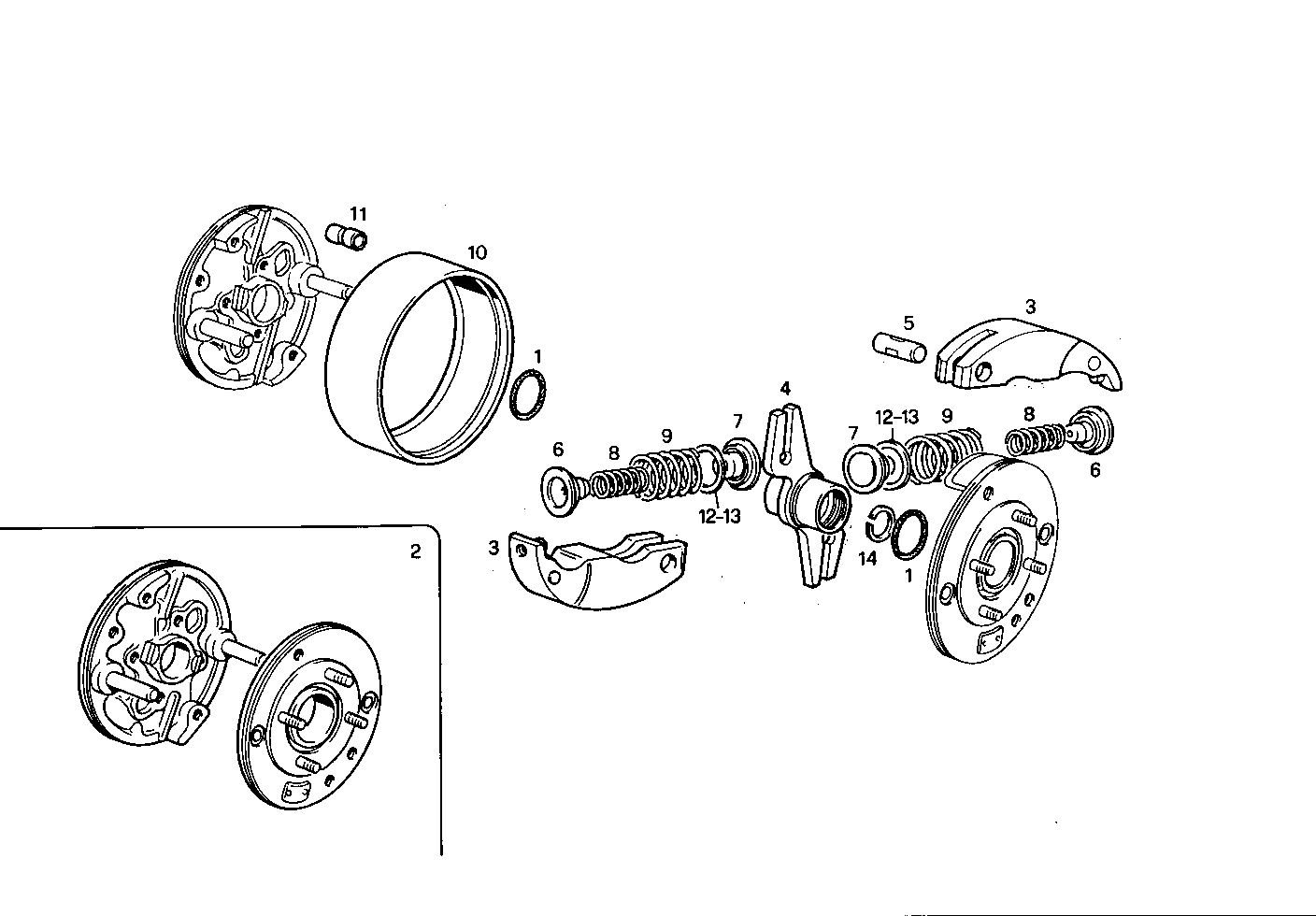

1480.002 ADVANCE VARIATOR (COMPONENTS)
| Item | Part number | Description |
|---|---|---|
| 1 | 771302 | O-RING |
| 2 | 773118 | HOUSING ASSY |
| 3 | 773120 | INJ.PUMP VARIAT.WEIGHT |
| 4 | 773122 | INJ.PUMP CONTR.RO |
| 5 | 79047308 | PIN |
| 6 | 773124 | WASHER/PLATE |
| 7 | 773125 | WASHER/PLATE |
| 8 | 773126 | SPRING |
| 9 | 773127 | SPRING |
| 10 | 773128 | RING |
| 11 | 773129 | BUSH |
| 12 | 773131 | SHIM SP=0,5 MM |
| 13 | 773132 | SHIM |
| 14 | 773130 | WASHER |
