8361i001.00

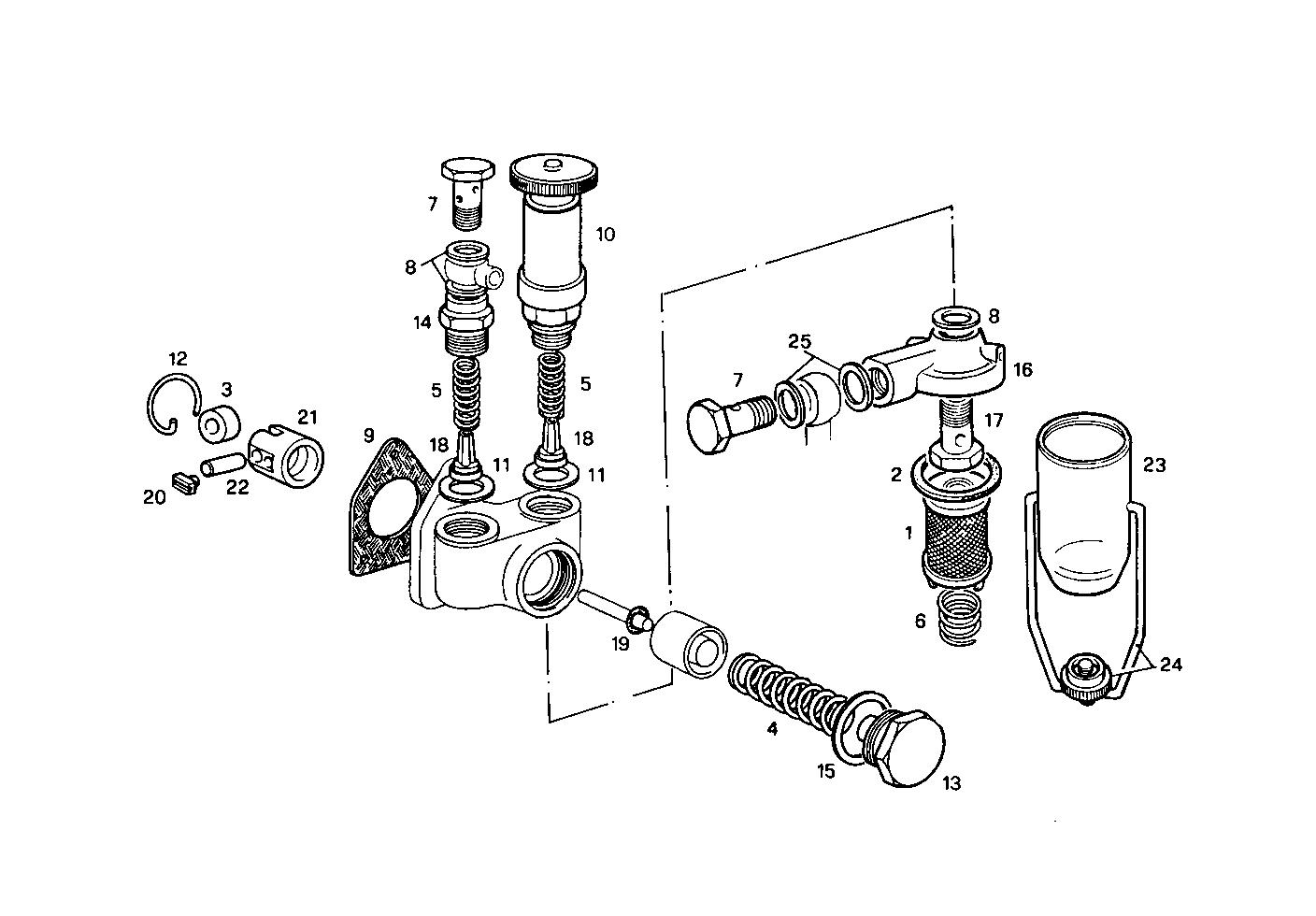

2040.013 FUEL PUMP (COMPONENTS)

Iveco/FPT FUEL PUMP (COMPONENTS)

Item Part number Description
1 705603 FUEL FILTER
2 705631 WASHER
3 773439 ROLLER
4 705636 SPRING
5 705637 SPRING
6 705639 SPRING
7 705737 SCREW CONNECTOR
8 746152 GASKET
9 746153 GASKET
10 746189 FUEL PUMP
11 746214 GASKET
12 751032 O-RING
13 753762 PLUG
14 760239 PIPE SOCKET
15 760241 GASKET
16 763152 COVER
17 763153 SCREW
18 763178 VALVE
19 764120 GASKET
20 9930059 ROLLER TAPPET
21 9930060 TAPPET
22 9930444 PIN
23 4934458 PRECLEANER
24 766903 RETAINER
25 4858608 SEAL GASKET dia.14x19,5x1,5
