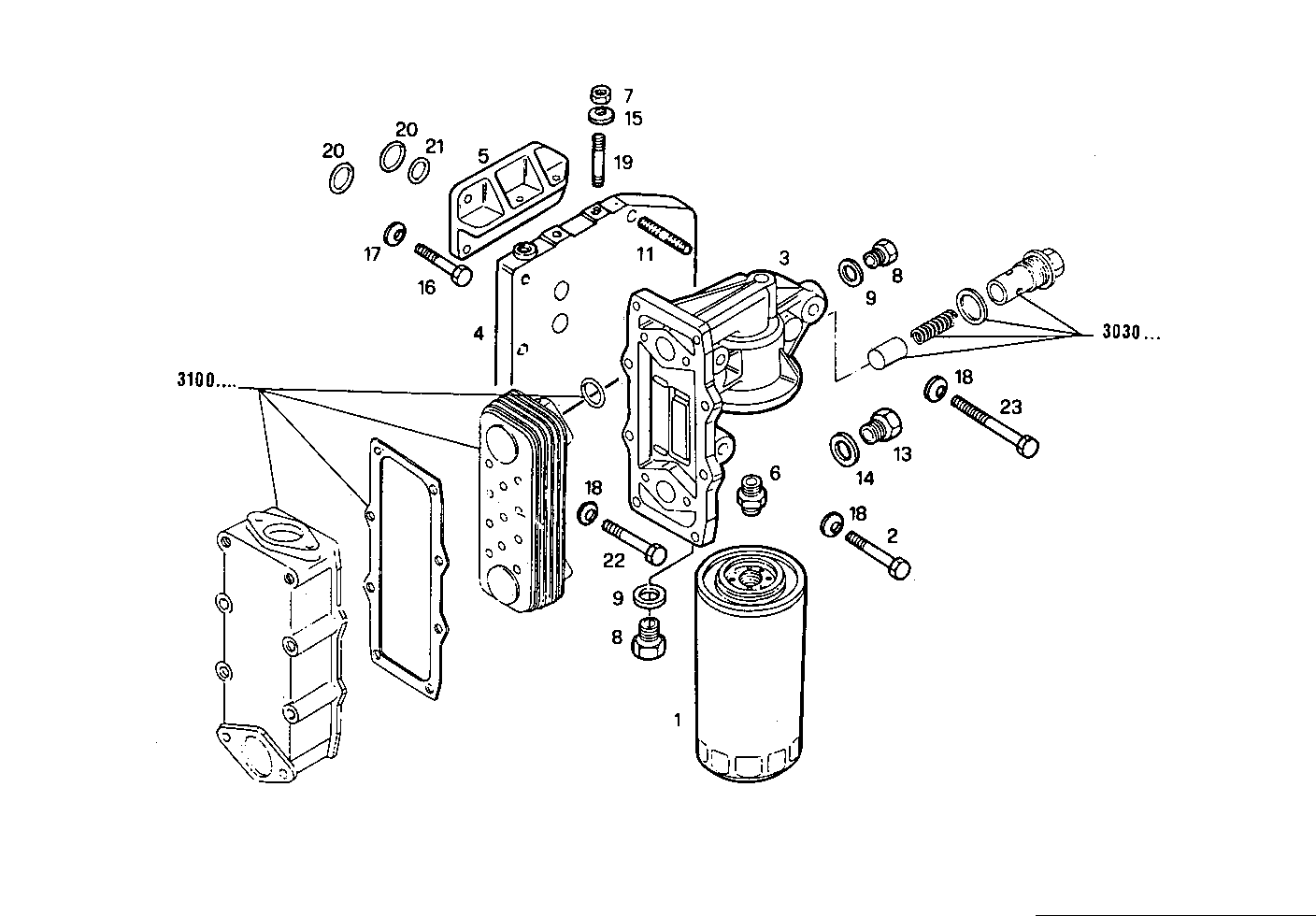

| Item |
Part number |
Description |
|
1 |
1907570 |
OIL FILTER CARTRIDGE |
|
2 |
15541321 |
HEXAGON BOLT M12X1,25X75 MM |
|
3 |
4703643 |
SUPPORT |
|
4 |
4821580 |
SUPPORT |
|
5 |
4720881 |
BRACKET |
|
6 |
4657869 |
BULKHEAD STR.COUPL |
|
7 |
16101511 |
HEXAGON NUT M12X1,25 |
|
8 |
10275001 |
LOCK PLUG M22X1,5X10 MM |
|
9 |
10261860 |
SEAL GASKET Ø22X30 MM SP=1,5 MM |
|
11 |
13543521 |
STUD M8X16X25 MM |
|
13 |
10276740 |
LOCK PLUG M35X1,5 |
|
14 |
10265160 |
SEAL GASKET Ø35,3 MM |
|
15 |
17091174 |
SPRING WASHER Ø12X24 MM |
|
16 |
11307021 |
HEXAGON BOLT M10X40 MM |
|
17 |
17090274 |
WASHER Ø10X20 MM |
|
18 |
11198771 |
WASHER Ø12X30X3,4 MM |
|
19 |
13532521 |
STUD M10X70 MM |
|
20 |
17282581 |
O-RING Ø28,24 MM SP=2,62 MM |
|
21 |
14457681 |
O-RING Ø21,89 MM SP=2,62 MM |
|
22 |
15541121 |
HEXAGON BOLT M12X1,25X65 MM |
|
23 |
15541821 |
HEXAGON BOLT M12X1,25X120 MM [up to 565948] |
