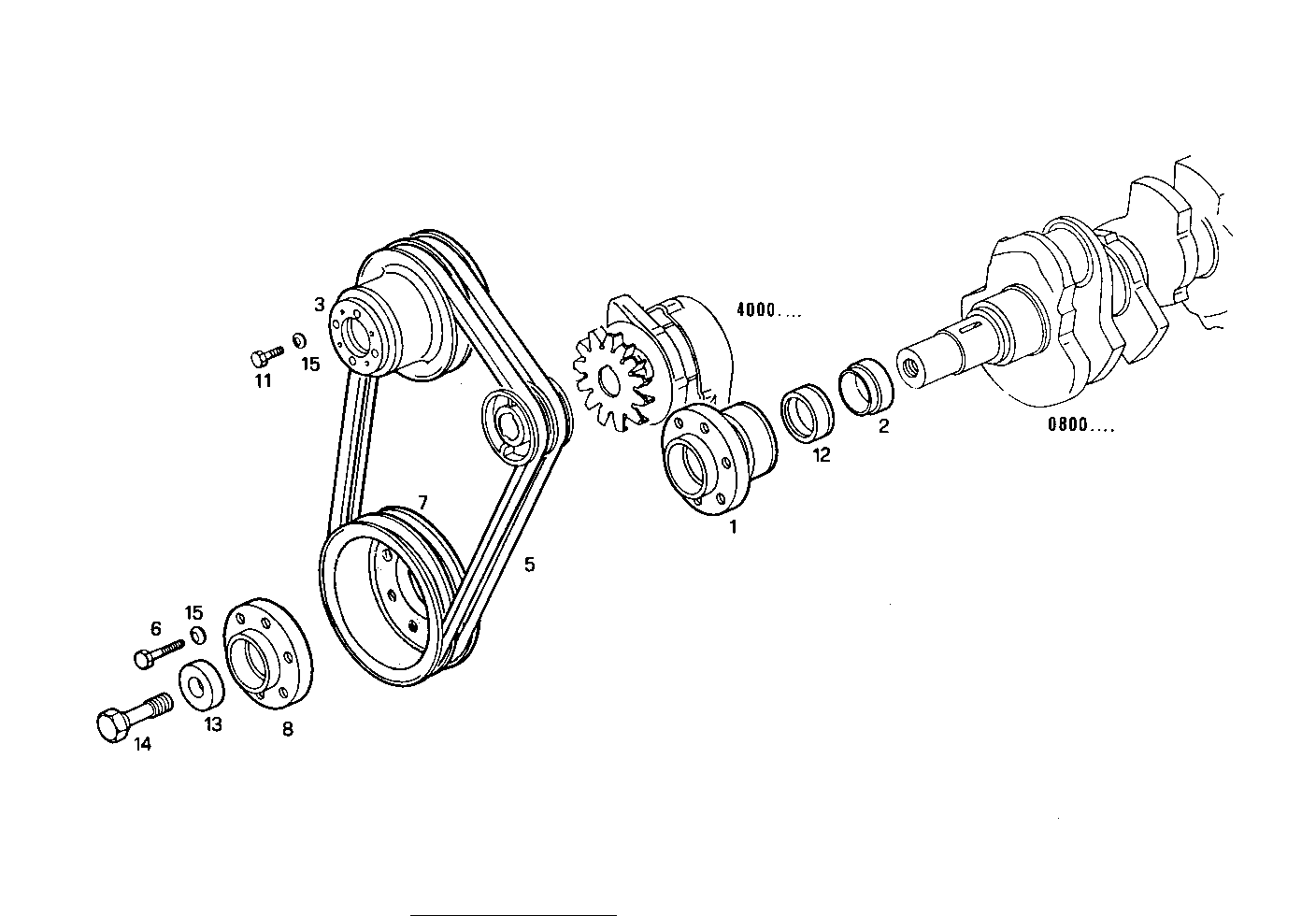

3240.008 PULLEYS AND BELTS
| Item | Part number | Description |
|---|---|---|
| 1 | 4711786 | DAMPER HUB |
| 2 | 4711787 | BUSH |
| 3 | 4733011 | PULLEY |
| 5 | 4720512 | SET OF V-BELTS KIT |
| 6 | 11234731 | HEXAGON BOLT M10X1,25X45 MM |
| 7 | 4719780 | WATER PUMP PULLEY |
| 8 | 4725248 | SPACING BAR |
| 11 | 11306933 | HEXAGON BOLT M10X1,25X30 MM |
| 12 | 4811426 | BUSH |
| 13 | 8823773 | WASHER |
| 14 | 8823774 | SCREW |
| 15 | 17090274 | WASHER Ø10X20 MM |
