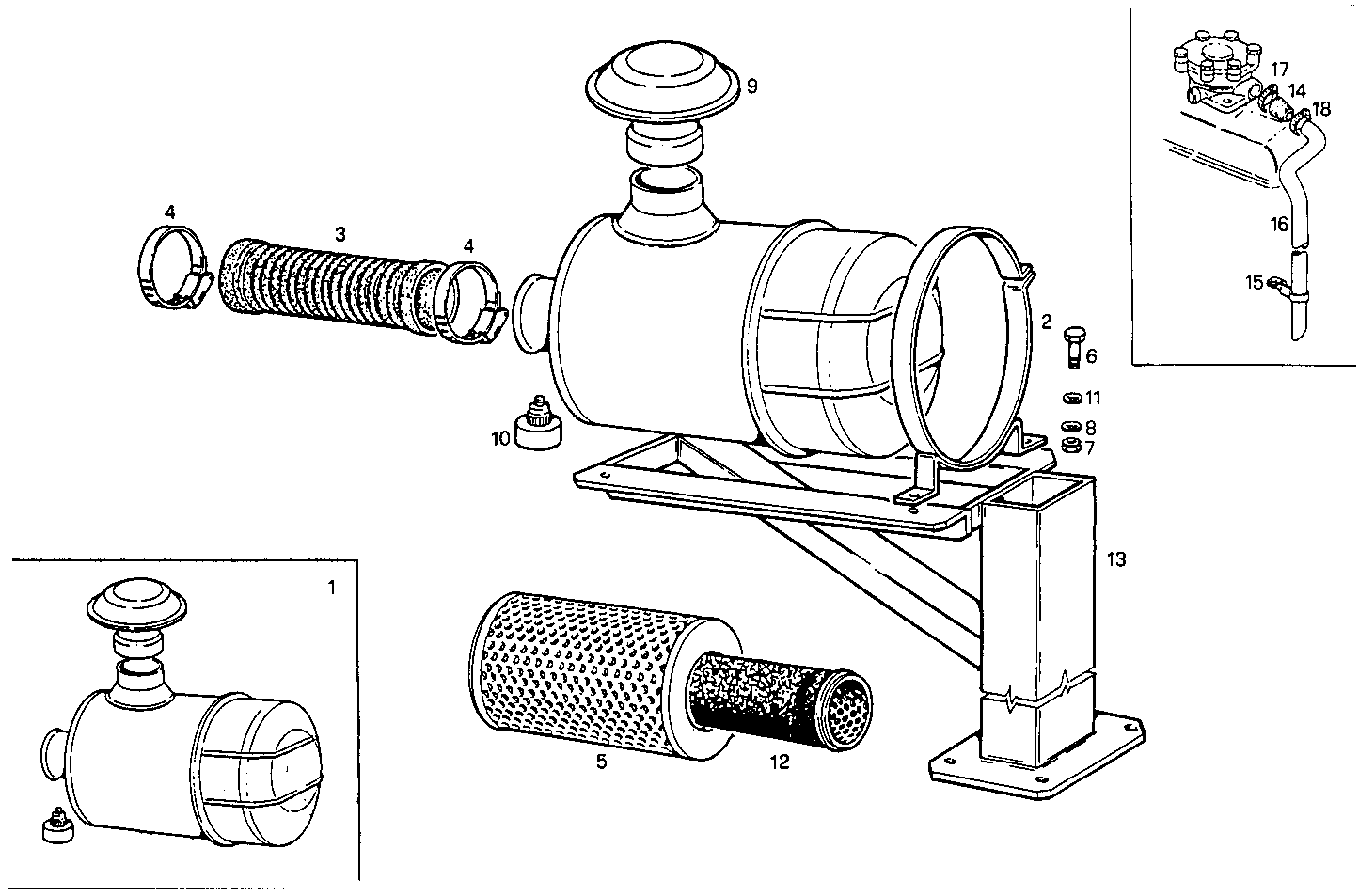

| Item |
Part number |
Description |
|
1 |
8106914 |
AIR CLEANER ASSY |
|
2 |
8106400 |
CLIP |
|
3 |
4616297 |
RUBBER SLEEVE |
|
4 |
12174590 |
CLIP Ø107-127 MM |
|
5 |
8092441 |
AIR FILTER ELEMENT |
|
6 |
15004021 |
HEXAGON BOLT M10X1,25X25 MM |
|
7 |
12164711 |
HEXAGON NUT M10X1,25 |
|
8 |
11190579 |
SPRING WASHER Ø10X20 MM SP=2,3 |
|
9 |
8106398 |
COVER |
|
10 |
4792262 |
AIR PRESSURE GAUGE |
|
11 |
741570 |
WASHER Ø10X17 MM SP=2,3 |
|
12 |
8106716 |
AIR FILTER ELEMENT |
|
13 |
8108446 |
SUPPORT |
|
14 |
8015523 |
RUBBER SLEEVE Ø30 - Ø25 MM |
|
15 |
4735644 |
RETAINER |
|
16 |
8105979 |
BREATHER PIPE |
|
17 |
17764791 |
CLIP Ø32/50 MM |
|
18 |
17764691 |
CLIP Ø25/40 MM |
