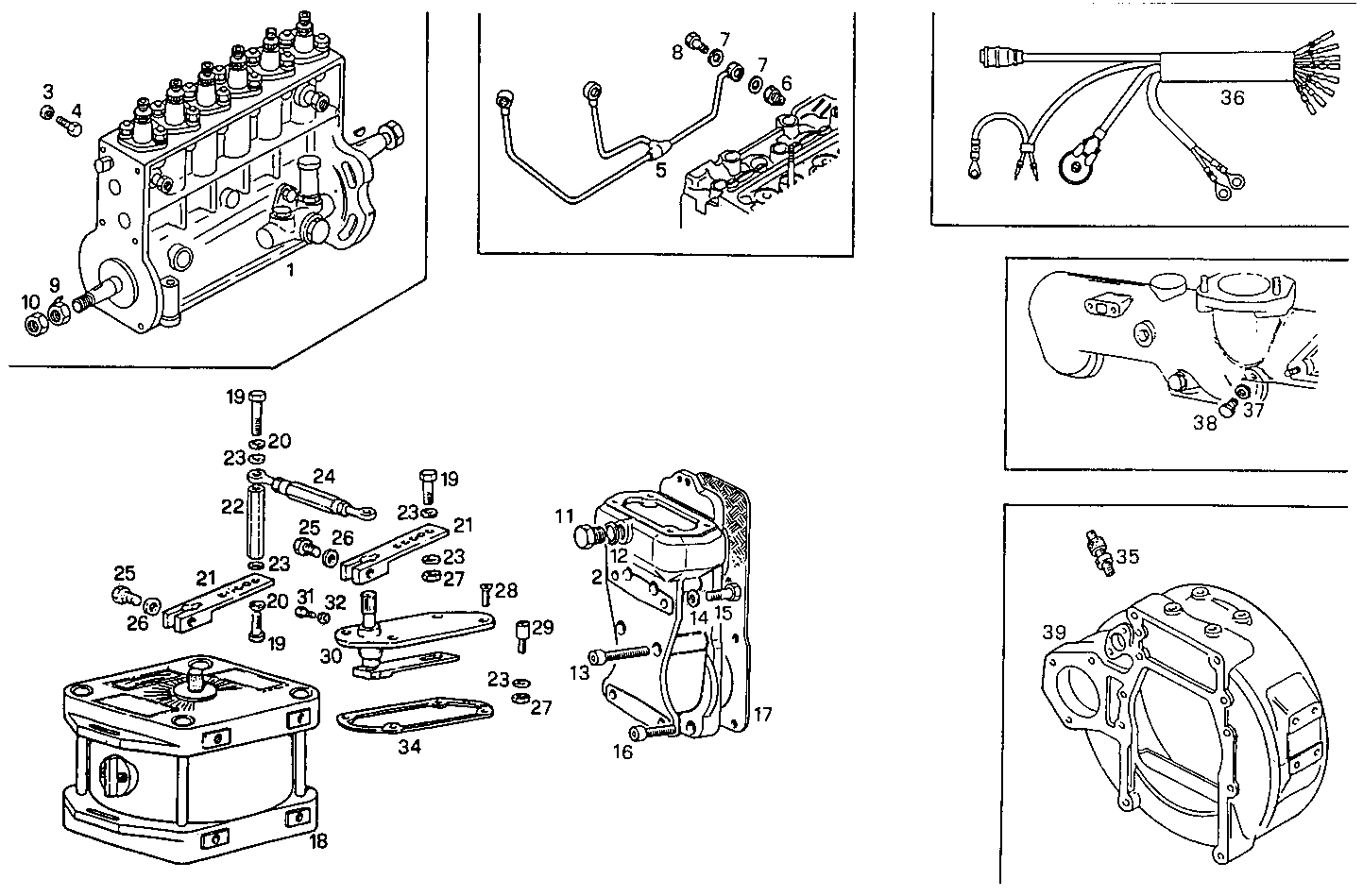

| Item |
Part number |
Description |
|
1 |
8109075 |
INLINE INJECT.PUMP ASSY |
|
2 |
8007450 |
TIMINGGEAR HOUSIN |
|
3 |
12574011 |
NUT M4 |
|
4 |
10374811 |
CYLIND-HEAD SCREW M4X10 MM |
|
5 |
8010134 |
OIL LINE |
|
6 |
4750513 |
PIPE SOCKET [up to ...] |
|
7 |
10298360 |
SEAL GASKET Ø10X16 MM SP=1 MM |
|
8 |
11903811 |
SCREW CONNECTOR M10X1,25 |
|
9 |
8108716 |
NUT |
|
10 |
10717311 |
NUT M12 |
|
11 |
10300711 |
LOCK PLUG M16 |
|
12 |
10278650 |
GASKET Ø16X22X1 MM |
|
13 |
14303820 |
SCREW M6X60 |
|
14 |
11197771 |
SPRING WASHER Ø6X12 MM SP=1,2 MM |
|
15 |
4934404 |
SCREW |
|
16 |
14305220 |
SCREW M6X16 |
|
17 |
772578 |
GASKET |
|
18 |
8107492 |
INJECTION CONTROL ASSY |
|
19 |
10978021 |
HEXAGON BOLT M5X20 MM |
|
20 |
11199271 |
SPRING WASHER Ø5X10 MM |
|
21 |
8108603 |
LEVER |
|
22 |
8108656 |
SPACING BAR |
|
23 |
14497801 |
WASHER Ø5X9,5 MM |
|
24 |
8108607 |
TIE ROD ASSY [up to 10-93] |
|
25 |
10902421 |
HEXAGON BOLT M6X20 MM |
|
27 |
12574111 |
HEXAGON NUT M5 |
|
28 |
8109360 |
SCREW M5X12 |
|
29 |
8108604 |
PIN |
|
30 |
8008766 |
COVER ASSY |
|
31 |
8108715 |
SCREW |
|
32 |
15896411 |
HEXAGON NUT M5 |
|
33 |
12638101 |
WASHER Ø5,15 MM |
|
34 |
8108602 |
GASKET |
|
35 |
4933865 |
TRANSMITTER |
|
36 |
8108537 |
ENGINE HARNESS |
|
37 |
10296160 |
SEAL GASKET Ø12X18 MM SP=1 MM |
|
38 |
10300571 |
PLUG M12X1,5 |
|
39 |
8101287 |
FLYWHEEL HOUSING |
